Need pointers on how to convert schematic to breadboard

[REEEEEEEE]

TL;DR Summary

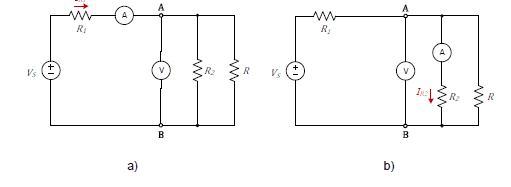

How would you translate the ollowing circuits to a breadboard

Hello.
I am supposed tolearn how to assemble the following circuit into a breadboard/protoboard

but My attempts have all failed So I want to ask yyou how would you assemble his into a breadboard assuming that V and A are multimeters set to the previous(V and A) . how can I get the gist on where to start I get conused around the multiple node connetions also. Could you be o assistance?
Your time and attention are deeply appreciated thank you.

addittionaly i add that iths required that the wires from power supply and multimeters need to be attached directly to the resitors(thats the way I am learning )



[berkeman]

Is this for your schoolwork?

What types of breadboards do you have available to you? Do you have the plug-able type, or will you be soldering components and wires onto a perfboard?



[REEEEEEEE]

Is this for your schoolwork?

What types of breadboards do you have available to you? Do you have the plug-able type, or will you be soldering components and wires onto a perfboard?

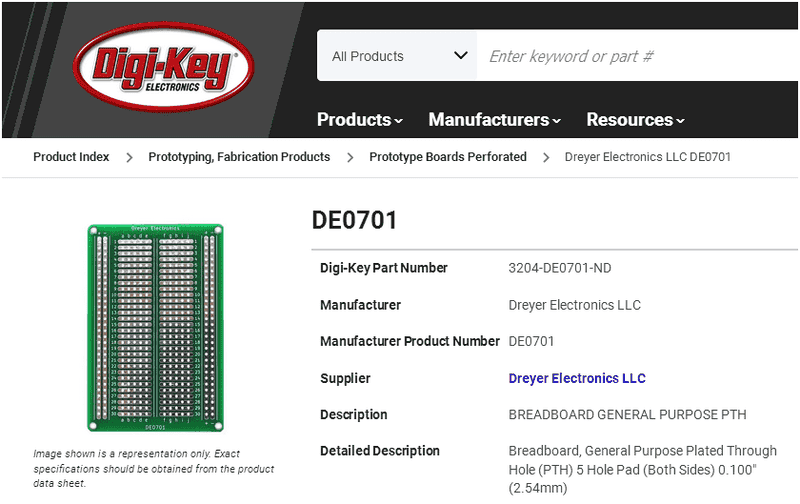

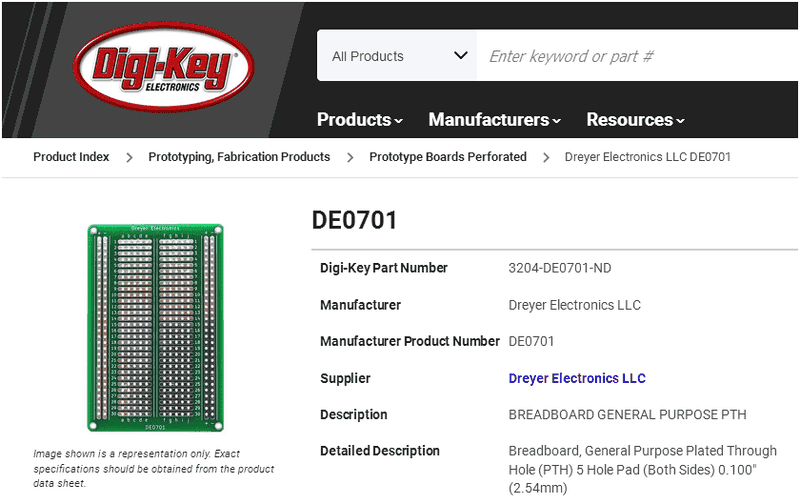

View attachment 292523

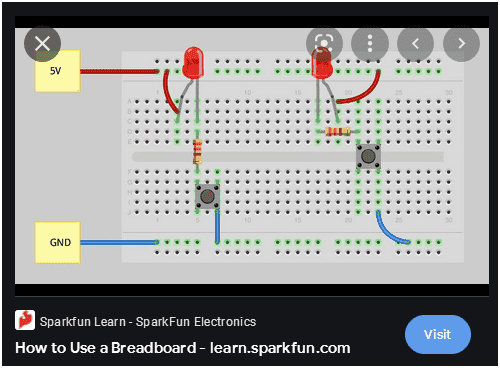

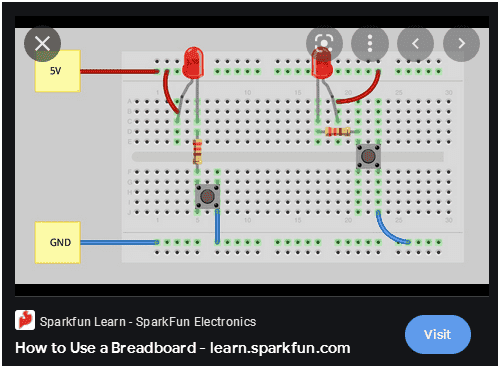

View attachment 292524

I have this kind of breadboard

I think is the plug-able type.



[berkeman]

I think is the plug-able type.

Yes it is. To familiarize your self with how to use them, check out this Google search hit list from searching how to use plugable circuit breadboards:

https://www.google.com/search?q=how...adboards&ie=utf-8&oe=utf-8&client=firefox-b-1

And to connect your intruments and power supply into the breadboard, you will use solid wire around 22AWB of different colors (use black for ground, red for power, yellow/white/other colors for signals).



[REEEEEEEE]

Thank you for the advice.
Any tips or how to connect the circuit?



[Borek]

Any tips or how to connect the circuit?

Have you followed the link @berkeman posted? It contains several videos which will give you all info you may need.



[berkeman]

Any tips or how to connect the circuit?

Watch a couple of the videos and you will get the idea. If the resistors are the standard 1/4W through-hole type, you can just bend the leads at right angles to the axial part and plug the leads into the breadboard. Then use 22AWG colored wires to make the circuit connections. When you need to connect a voltmeter, if the voltmeter has clipleads or EZHooks, just clip those onto wires that you stick into the breadboard.

If you end up with any components with wire size over about 22AWG, you will want to solder 22AWG wires onto the leads so that you can still make connections with the breadboard. If you try to jam the leads for a 10W power resistor into the breadboard, they probably won't fit and may damage the breadboard.
