Needs clarity on this displacement vector diagram

AI Thread Summary
The discussion centers on confusion regarding a displacement vector diagram related to a problem involving a river current and a boat's velocity. The vertical arrow beside NA is clarified to represent the vertical component of displacement, which is 5 km, while the label of 3 km is identified as a possible typo. Participants confirm that the provided diagram is mislabeled and that the user's own sketch of the displacement vector is accurate. The conversation emphasizes the importance of correctly interpreting the components of the diagram to solve the problem effectively. Overall, the key takeaway is the need for clarity in vector diagrams to avoid misunderstandings in physics problems.
Chijioke
Messages
14
Reaction score
3
Homework Statement
How far from his destination
Relevant Equations
The trigonometric ratios of acute angles in a right angled triangle:
SOH CAH TOA

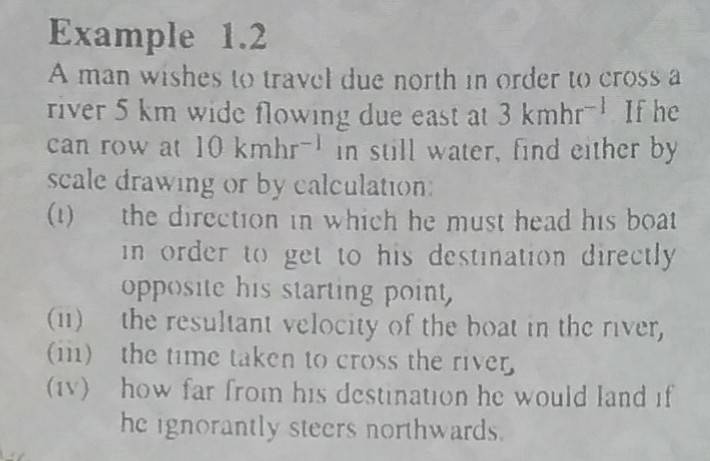

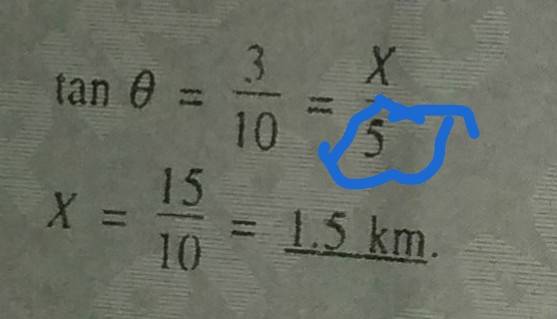

The problem is actually a solved example

My attention is focused in understanding the displacement vector diagram as it has to deal with question (iv).
I have no problem understanding the velocity vector sketch below:

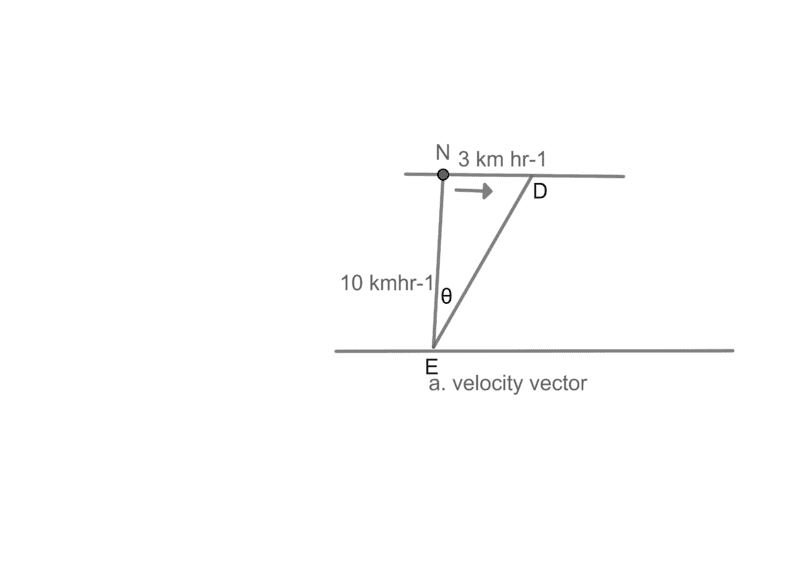

velocity vector.png


As you can see ND is the velocity of the river current due East and NE is the velocity of the boat supposed the man chooses to go Northward.
Here comes another sketch for the velocity

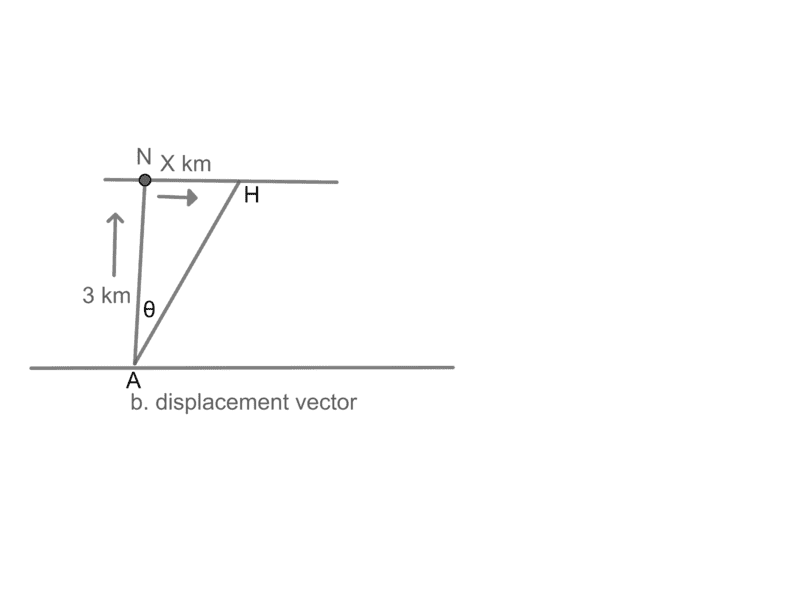

displacement vector original.png

I am confused about the sketch because
a. I don't understand what the vertical arrow beside NA meant.
b. the 3km, is what? Is the displacement of the river or what? If it is, how was obtained because I know from the wording of the problem nothing like that was given. what was given 3 kmhr-1, which the displacement of the river. From the solving as it in the book I thinking that the 5km


As I showed here

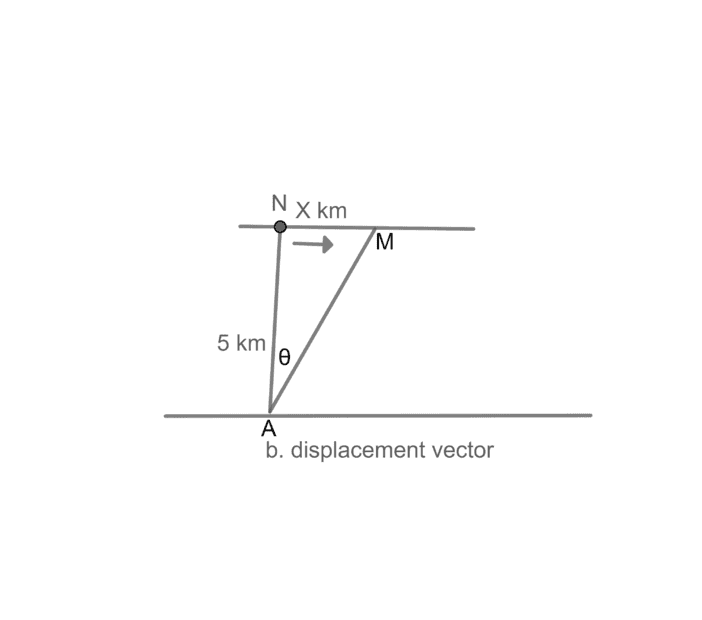

displacement vector (1).png

Please help my understanding. Thank you.


Attachments

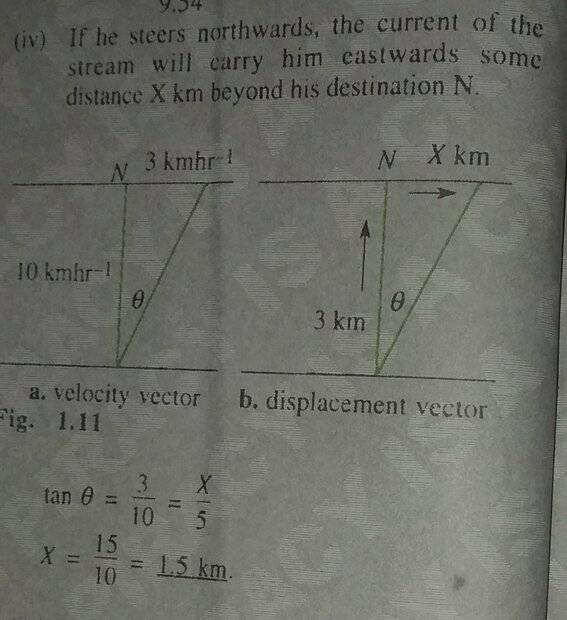

  • IMG_20230901_042351.jpg
    43.8 KB · Views: 86
  • IMG_20230901_042351.jpg
    43.8 KB · Views: 77
  • IMG_20230901_043519.jpg
    15.6 KB · Views: 86
  • IMG_20230901_042351.jpg
    43.8 KB · Views: 85
Physics news on Phys.org
Chijioke said:
I am confused about the sketch because
a. I don't understand what the vertical arrow beside NA meant.
b. the 3km, is what? Is the displacement of the river or what? If it is, how was obtained because I know from the wording of the problem nothing like that was given. what was given 3 kmhr-1, which the displacement of the river. From the solving as it in the book I thinking that the 5km
You are understandably confused because the diagram provided in the solution is mislabeled. The vertical arrow beside NA must represent the vertical component of the displacement which is given as 5 km. The label 3 km is either a typo or the drawing is pasted from a different problem. Your drawing of the displacement vector is correct.

  • Like
  • Informative
Likes Lnewqban and Chijioke
kuruman said:
You are understandably confused because the diagram provided in the solution is mislabeled. The vertical arrow beside NA must represent the vertical component of the displacement which is given as 5 km. The label 3 km is either a typo or the drawing is pasted from a different problem. Your drawing of the displacement vector is correct.
I may still have question concerning this but let go and think. Thank you.

Chijioke said:
I am confused about the sketch because
a. I don't understand what the vertical arrow beside NA meant.
The river can't be made narrower: the man still has 5 km separating him from the opposite shore.
It must be a typo.
