Power Factor Correction: Solving for Complex Power and Unity Factor in a Circuit

Thread starter portuguese
Start date Jun 30, 2012
Tags

Correction Power Power factor

Join the discussion

Registration is free. Start your own thread to ask a follow-up.

1 reply · 2K views · last reply Jul 1, 2012

portuguese

Thread starter
Jun 30, 2012

Homework Statement

Consider this circuit. Calculate the complex power for the circuit, and correct the power factor to unity by connecting a parallel reactance to the load.

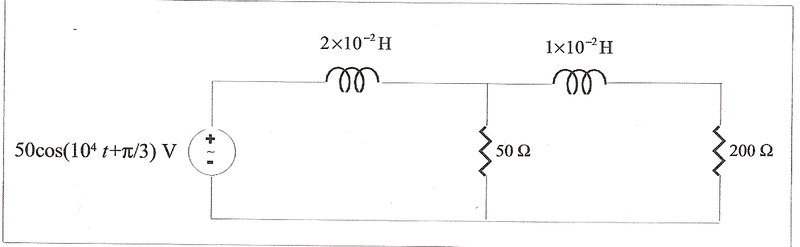

Circuit schematic with a voltage source labelled 50cos(10^4 t+π/3) V, series inductor 2×10^-2 H, parallel resistor 50 Ω, series inductor 1×10^-2 H, and parallel resistor 200 Ω.

Homework Equations

The Attempt at a Solution

My attempt:

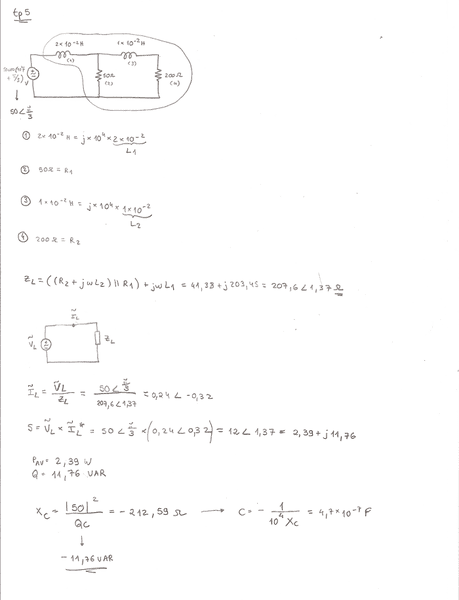

Handwritten AC circuit analysis on lined paper: a source with a branch of two inductors and resistors, followed by impedance, load voltage, complex power and reactive power calculations.

Can someone check? Thanks a lot!

Last edited: Jun 30, 2012

Physics news on Phys.org

Two paths, one flux: Trapped ions simulate Aharonov–Bohm interference in a lattice gauge theory
Air holes turn silicon wafers into flat ultraviolet focusing mirrors for compact optics
Quantum gas microscope reveals individual atoms in first tunable three-component Hubbard system

Discussion

lazyaditya

Jul 1, 2012

Ya method is correct !
