Problem already solved. concept help needed. Four Wires in a square.

Click For Summary
SUMMARY

The discussion centers on a physics problem involving four wires arranged at the corners of a square, with a side length of 5.5 cm and a current of 1.6 A flowing through them. The participant successfully solved the first part of the problem using the equation F=ILB and vector diagrams based on the right-hand thumb rule. The challenge lies in understanding why the angle of the magnetic field vector from the lower left wire is assumed to be 45 degrees. The participant seeks clarification on this assumption and requests assistance with vector representations for part B of the problem.

PREREQUISITES
  • Understanding of electromagnetism concepts, specifically the Biot-Savart Law
  • Familiarity with vector analysis in physics
  • Knowledge of the right-hand rule for determining direction of magnetic fields
  • Ability to apply the formula F=ILB in magnetic force calculations
NEXT STEPS
  • Research the Biot-Savart Law and its application in calculating magnetic fields
  • Study vector decomposition techniques for resolving forces in physics
  • Learn about the right-hand rule and its implications in electromagnetism
  • Explore examples of magnetic force calculations involving multiple current-carrying wires
USEFUL FOR

Students studying electromagnetism, physics educators, and anyone preparing for cumulative exams in physics, particularly those focusing on magnetic fields and forces in current-carrying conductors.

runphysicsrun
Messages
10
Reaction score
0
Four Wires form corners of a square. Force exerted by 3 of them on 1. Concept help!

Homework Statement



side length "a"= 5.5 cm
current through wires "I" = 1.6A
"L" of lower right wire= 1 cm
upper and lower left currents are out of the page
upper and lower right currents are into the page

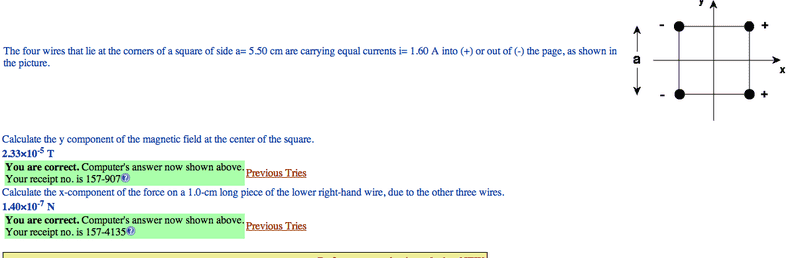

Problem Attached

My issue is with part b!

Homework Equations



F=ILB
B=μ0I /2∏R
Vector diagrams based on right hand thumb rule

The Attempt at a Solution



I've solved both parts of this problem. I solved the second part by creating vector diagrams and then applying Fx=ILB for the B's produced by the upper right and lower left wires. The lower left wire has a y-component as well so I multiplied by the cos (45). However, I'm having trouble comprehending why you can assume that the angle of the field vector by the lower left hand wire is exactly 45 degrees. Can anyone explain that to me?

Also appreciated would be if someone could draw the vector representations for part B (the forces of B acting on the wires), as I want to check my diagrams!

I have a cumulative exam next Monday, so help would be much appreciated!


Attachments

  • four wires.png
    four wires.png
    17.1 KB · Views: 564
Last edited:
Physics news on Phys.org
someone please reply! I really need help!
