Rainbows are not Vampires

Continue reading the Original PF Insights Post.



[Orodruin]

Excellent insight on observations people can make in their everyday life.



[jim mcnamara]

This gets very high marks. I've already bookmarked it.



[OmCheeto]

Yay! I love rainbows.

Way back in 2012, a forum member named Anna Blanksch started a thread, Do rainbows have differing archs?, which really started me thinking about them.
I'm pretty sure it was her fault that I started a thread, What caused the Quadruple Rainbow?, as they were just pretty things in the sky before that.

Being that the rainbow in the "What caused the Quadruple Rainbow?" thread looks suspiciously like your "mystery" rainbow, I'm going to guess that yours was a "reflected" rainbow.



[Greg Bernhardt]

Very accessible Insight!



[anorlunda]

Being that the rainbow in the "What caused the Quadruple Rainbow?" thread looks suspiciously like your "mystery" rainbow, I'm going to guess that yours was a "reflected" rainbow.

I think you mean "reflection" rainbow, not "reflected" in the way that I used those terms in the article. The reflected rainbow is seen on the lake surface. The reflection rainbow is seen in the sky.



[Ken G]

Another source of a "twinned" rainbow is when you have both a regular rainbow, and a "reflection rainbow", at the same time. So if you see a twinned rainbow over a body of water, it seems the more likely explanation than that there are two sizes of drops.



[Hornbein]

"Wikipedia says that the glory is believed to happen due to classical wave tunneling, when light nearby a droplet tunnels through air inside the droplet and is emitted backwards due to resonance effects."

? Tunnels into an air bubble in inside the droplet?



[Amrator]

Awesome Insight!



[spareine]

Interesting article! Maybe it is useful to add that your statement that two persons cannot see the same rainbow is a denial of the concept of virtual objects. If light rays can be traced back to an imaginary origin, that origin is called a virtual object. The rainbow is just a virtual object at infinity, no problem. Two persons watching the rainbow are looking at the same virtual object. Similarly, the reflection of a rainbow in the water is another virtual object. Why denying virtual objects?



[anorlunda]

Why denying virtual objects?

I think you missed the point, as astronomer Berman said, "Rainbows are not 3D objects." I too struggled with what that means.

Refer back to the diagram in the article that shows my eye, two drops (one high one low), and a sky image plus a lake image. Now suppose that the rain just began so that the high drop is there but there is no low drop. Then I will see the sky image but no lake image at all. Conversely, if the rain abruptly ended, the low drop could be there but no high drop, so I would see the lake image with no sky image. 3D objects, parallax, vanishing points, and virtual images are optical phenomena that propagate at the speed of light, so that if I saw the sky image I should simultaneously see the lake image.

The same applies if you stand beside me. Your eyes see rainbow light from different raindrops than my eyes see. Because those other raindrops may be missing, or have other properties, your eye sees a different rainbow than my eye. In most, but not all circumstances, they look alike. That's why the conventional optics rules for 3D images don't apply.

The point may be clearer if we refer back to the article's analogy with a man pointing a perfectly collimated laser at my eye. My eye sees the man and a red dot. My other eye (or you standing beside me) sees the man but no red dot. Conventional optics, including vanishing point, apply to the image of the man, but not to the red dot. The rainbow you see is more analogous to the red dot than to the image of the man.



[sophiecentaur]

One way to think of a rainbow is that it is just a highly distorted virtual image of the Sun. There is a large amount of Chromatic aberration and there is also a lot of spatial distortion - so much so that we see the image as a ring. Because of the apparent direction of arrival of the sections of the bow, there is no parallax so the image appears at infinity. All very confusing and not like other things we see in the sky.

Maybe it is useful to add that your statement that two persons cannot see the same rainbow is a denial of the concept of virtual objects.

I am sure that, if rainbows didn't look so gorgeous, they wouldn't have got into folk lore and they wouldn't have that extra magical quality that seems to make people treat them differently from other optical phenomena.
I am not being Mr Grumpy about this. I am just suggesting that our intuition is not the best way to attempt descriptions and explanations of rainbows. People are really bad witnesses when asked to describe what they actually see; they seems to believe that the bow actually goes into the ground, for instance. Fact is that, very often, you can actually see a hint of rainbow in front of the ground. (Paradoxical if you want to place the rainbow 'somewhere' but no more so than looking at an image in {behind} a mirror).

The point may be clearer if we refer back to the article's analogy with a man pointing a perfectly collimated laser at my eye.

I don't wee why it has to be a laser beam. The same thing would apply to any object that happens to be obscured from one viewer and visible to the other. One observer is aware of the object and the other is not.
And, for an object / image to be "3D' there has to be a spread of distances from the observer to different parts of the object and parallax effects should also be seen. It's all at infinity so that hardly applies.



[anorlunda]

I don't wee why it has to be a laser beam.

Because light reflected from an ordinary object goes in many directions. It is (at least partially) omnidirectional light.

Collimated light is unidirectional. A collimated beam can be aimed at your left eye and 0% of its light reaches your right eye.

So a man holding a paper with a red dot printed on it, is very different from a man holding a red laser pointer.



[sophiecentaur]

Because light reflected from an ordinary object goes in many directions. It is (at least partially) omnidirectional light.

Collimated light is unidirectional. A collimated beam can be aimed at your left eye and 0% of its light reaches your right eye.

So a man holding a paper with a red dot printed on it, is very different from a man holding a red laser pointer.

I can hold my hand in front of me so that I can see an object with one eye but not the other. Is there any (relevant) difference. Colimation is a way over the top requirement for this explanation. Speaking as one who did all the basic Physics learning in the absence of handy laser pointers, I often find that people reach for a virtual laser to prove points when simple shadows can do just as well. What did the 19th century opticians do when they wanted to explain things?



[anorlunda]

I can hold my hand in front of me so that I can see an object with one eye but not the other. Is there any (relevant) difference

A big difference. Zero photons from the laser reach the other eye, with our without your hand.



[Orodruin]

A big difference. Zero photons from the laser reach the other eye, with our without your hand.

But in the case of the rainbow you are making a virtual image of the sun at infinity. Even if the different rays from this virtual image passes through different rain drops, it does not make them part of a different virtual image. When you construct virtual images of objects using lenses, the rays take different paths as well, passing through different parts of the lens. The important thing is that a virtual image is constructed. It is this virtual image which is reflected. Fine, the rays did not pass through the same rain drops, but the virtual image is not where the raindrops are.

Now suppose that the rain just began so that the high drop is there but there is no low drop

You could likely get similar effects with the virtual images created by lenses by placing a mirror beyond the lens, clearly the virtual image is not going to be reflected.



[spareine]

I think you missed the point, as astronomer Berman said, "Rainbows are not 3D objects." I too struggled with what that means.

I agree that rainbows are not 3D objects. Our difference is simply that I prefer to extrapolate the light rays back to infinity. For me raindrops are merely mirror particles at a finite distance, they are certainly not the location of the rainbow. Extrapolate the light rays back to infinity to find the virtual object. The celestial sky is the location of the rainbow. Everybody sees the rainbow at the same location in the celestial sky.



[sophiecentaur]

When you construct virtual images of objects using lenses, the rays take different paths as well, passing through different parts of the lens.

The imaging forming structure in a rainbow is different from what happens in a lens - it's more like a multiplicity of lenses, with each lens contributing within a narrow angle. It's a bit like what happens with a lenticular screen or a fresnel lens. I think it's a bit pointless to try to make the rainbow fit in with the more straightforward images that we see. Of course the image is not 'real' because the light behaves as if it comes from way behind the image forming structure. There is no parallax against distant objects so it can be classed as infinitely far away.

Everybody sees the rainbow at the same location in the celestial sky.

I don't think they do, exactly. The distances are so large that it would be difficult to spot but when you move to the left, the bow moves to the left, with you. So it would be moving across the sky relative to the distant stars. The centre of the bow is in line with the Sun and the back of your head. But a rainbow at night? Weird idea! Perhaps it's an experiment you could do with the Moon - if you could arrange the rain to come at the right time of the day and month. But you would need to travel quite a distance sideways to see the effect against the moonscape as a background. (many km to observe a recognisable movement of a fuzzy thing like a rainbow.



[spareine]

I don't think they do, exactly.

It is pure geometry. The Sun's celestial location is the same for everybody, at a given time. Hence the celestial locations of the antisolar point and the 42° circle around it are the same for everybody.



[sophiecentaur]

It is pure geometry. The Sun's celestial location is the same for everybody, at a given time. Hence the celestial locations of the antisolar point and the 42° circle around it are the same for everybody.

You are saying that the angle subtended by the Earth from the Sun is negligible. Yes, that sounds reasonable. But how does that relate to the fact that a rainbow moves against the Earth as you move? Ah - it moves by the distance you move, which means the apparent change in angle against the celestial sphere is zero.



[Orodruin]

It is pure geometry. The Sun's celestial location is the same for everybody, at a given time. Hence the celestial locations of the antisolar point and the 42° circle around it are the same for everybody.

Well, this is not strictly true. The difference is an angle of the distance between the people (measured orthogonal to the solar direction) divided by 1 AU. Miniscule and not noticable by eye, but it is there.

Technically, the virtual image of the sun which is the rainbow is not located at infinity, but in the same plane as the sun (although you need to look away from the sun to see it. Just as the sun, the rainbow will be in a very different place wrt the celestial sky in january compared to july.



[sophiecentaur]

Technically, the virtual image of the sun which is the rainbow is not located at infinity, but in the same plane as the sun

This doesn't make sense to me because the image is in front of me whilst the Sun is behind me. Can you explain it please?



[Orodruin]

This doesn't make sense to me because the image is in front of me whilst the Sun is behind me. Can you explain it please?

No, the virtual image is behind you, but the light is coming from in front of you. There is nothing strange here, it happens with lenses too.



[sophiecentaur]

No, the virtual image is behind you, but the light is coming from in front of you. There is nothing strange here, it happens with lenses too.

When I was learning about mirrors, lenses and images in School, we used to use long optical pins on a board and established the position of an image using parallax. What you are suggesting is that a similar method would place the image behind me? That is hard to square with my (beware!) intuition because I couldn't actually do this with pins on one side and an image on the other. I guess your point is that the Sums place the image behind me. Of course, the rainbow is so diffuse that one can't actually 'focus' on it for an extra clue about its distance.



[spareine]

Two objections against considering the rainbow as a virtual object at infinity might be: rainbows appear to be unfocusable, and infinity does not exist in real space. However, rainbows are focusable, because if the Sun was a point-like source of light, sharp Fraunhofer lines would show up in the rainbow only if the camera lens was focused at infinity. And about infinity: the celestial sky becomes part of real space when defined as the surface of the geocentric sphere beyond which the diurnal parallax is less than an arbitrary detection threshold x.



[sophiecentaur]

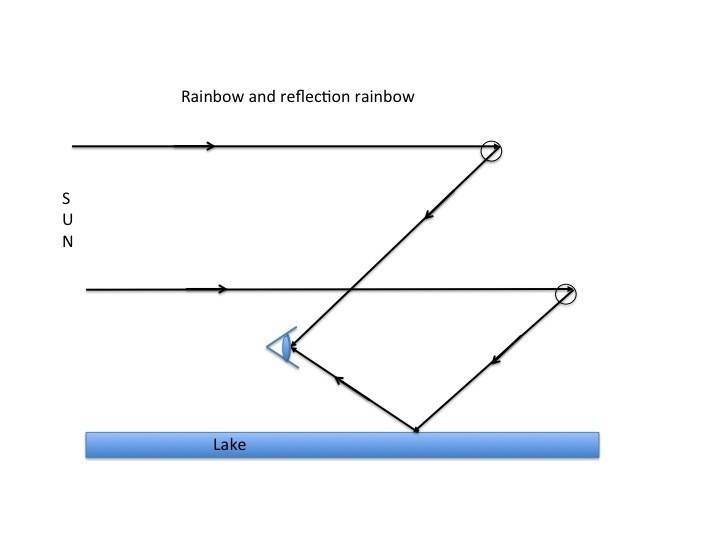

Reflected rainbow - alternative diagram.
I was trying to make sense of the diagram in the insight article and I realized what my problem was. All light rays from the Sun arrives from the same angle, for an observer on Earth. I tried an alternative diagram which includes this fact (attached). The vertical scale is exaggerated, of course. Exactly how this explains the horizontal shape of the reflection rainbow is not clear. I guess it must be to do with the reflection at low angles of incidence being less than at a glancing angle, so the bow does not form close to the observer.

Also, regarding the very pretty image of that lovely boat under a rainbow, it is possible that there's some vignetting going on around the edges. It's a common enough effect in pictures of the sky. Is this bright centre a particularly common effect when shooting away from a low sun?



[anorlunda]

Why denying virtual objects?

I just realized that we are wasting effort debating semantics instead of science. Think of one person in New York viewing a rainbow, and another person in Chicago viewing a rainbow. Spareine would argue that both are looking at a virtual image of the sun. But no sane person would argue that these are the same rainbows.

The Insights article said that the sky and lake views are of different rainbows, not different images.

So if two people side-by-side look at the sky, they see light reflected from different raindrops. Are they looking at the same rainbow or different rainbows? I think that's a matter of semantics, not science.



[spareine]

But no sane person would argue that these are the same rainbows.

Instead of calling someone insane, we could verbalize a distinction to avoid confusion: for some people rainbow means the 'rainbow cone' within the shower, for others it means the 'rainbow circle' in the celestial sky. Then:
- two persons see the same rainbow circle, but different rainbow cones.
- Through the water surface a reflected-rainbow circle can be seen, it is another circle in the celestial sky. Its center is the mirror image of the antisolar point.
- the reflected-rainbow cone and the rainbow cone are not the same cones.



[anorlunda]

Instead of calling someone insane, we could verbalize a distinction to avoid confusion: for some people rainbow means the 'rainbow cone' within the shower, for others it means the 'rainbow circle' in the celestial sky. Then:
- two persons see the same rainbow circle, but different rainbow cones.
- Through the water surface a reflected-rainbow circle can be seen, it is another circle in the celestial sky.
- the reflected-rainbow cone and the rainbow cone are not the same cones.

In semantics it takes more than verbalizing a distinction. You have to make the verbalization so wide spread that it becomes part of the language. The man in the street look up and says, "Look, two rainbows." You reply, "No, two,light cones for one rainbow." Lots of luck with that.



[spareine]

I am not the one who ordinarily thinks of the rainbow as a cone, so that is not my problem.



[sophiecentaur]

Instead of calling someone insane, we could verbalize a distinction to avoid confusion: for some people rainbow means the 'rainbow cone' within the shower, for others it means the 'rainbow circle' in the celestial sky. Then:
- two persons see the same rainbow circle, but different rainbow cones.
- Through the water surface a reflected-rainbow circle can be seen, it is another circle in the celestial sky.
- the reflected-rainbow cone and the rainbow cone are not the same cones.

Calm down, dear boy. No one really believes that you're mad (no worse than the rest of us, at least). It really is just a way of looking at this, whether you say we all have our own rainbow or we 'share one'. Anorlunda's point is totally valid because you have to ask yourself which group of raindrops are you using. Is it the same as my group of raindrops? If we both happen to be looking at a few 'common' raindrops then you are seeing a different colour from the colour I am seeing. Either we all have our own rainbow or we alll share the same one. (Does anybody care?)

- Through the water surface a reflected-rainbow circle can be seen, it is another circle in the celestial sky.

You will have to give a reference or derivation of that, I'm afraid. Whilst we can see part of the rainbow proper 'in the surface' of the lake, the drops producing that are between the surface of the water and your eye (just the same as when we see rainbows against the grass in a field. I tried to decide how the reflection rainbow (not 'reflected rainbow') would be formed and the 3D geometry needed to describe what happens in a spherical droplet, off axis, is hard. But I can't see how any of this can explain the horizontal spectrum that's shown in the 'boat picture' without a formal ray tracing calculation. My diagram in post 26 shows how the bow must appear below and closer to the horizon - but can it really be that near to the horizon?



[Orodruin]

Anorlunda's point is totally valid because you have to ask yourself which group of raindrops are you using.

The point that there are different raindrops causing the rainbow for different observers is a point well taken. But I do not think this is very different from two people looking at the same object through different mirrors. I would still call it the same object and if one of the mirrors disappear, one person will not see the object.

My diagram in post 26 shows how the bow must appear below and closer to the horizon - but can it really be that near to the horizon?

If you are talking about where the drops are which make the reflection, this is not true. It depends on how far away they are. The rainbow on the celestial sky as mentioned by spareine is a more useful concept and for that it the the same (virtual) image at infinity which is relevant (which is then also reflected in the lake). As to where the raindrops are which make you see this image, they are all in a cone and (for the reflected image) in the reflection of that cone in the water surface.



[spareine]

You will have to give a reference or derivation of that, I'm afraid. Whilst we can see part of the rainbow proper 'in the surface' of the lake, the drops producing that are between the surface of the water and your eye (just the same as when we see rainbows against the grass in a field. I tried to decide how the reflection rainbow (not 'reflected rainbow') would be formed and the 3D geometry needed to describe what happens in a spherical droplet, off axis, is hard. But I can't see how any of this can explain the horizontal spectrum that's shown in the 'boat picture' without a formal ray tracing calculation. My diagram in post 26 shows how the bow must appear below and closer to the horizon - but can it really be that near to the horizon?

No need to be afraid, a flat mirror is basic geometrical optics. Rays from the raindrops contributing to the reflected rainbow could be extrapolated to A'. And there is photo evidence like this.

(About reflected/reflection rainbow: your diagram seems to be about the reflected rainbow. The picture of the boat shows a reflected rainbow, as anorlunda said. A reflection rainbow is a rare phenomenon seen in the sky.)



[sophiecentaur]

No need to be afraid, a flat mirror is basic geometrical optics. Rays from the raindrops contributing to the reflected rainbow could be extrapolated to A'. And there is photo evidence like this.

View attachment 94219

(About reflected/reflection rainbow: your diagram seems to be about the reflected rainbow. The picture of the boat shows a reflected rainbow, as anorlunda said. A reflection rainbow is a rare phenomenon seen in the sky.)

Why do you have the sun coming off-axis in your diagram, I wonder?
That photo is impressive but it shows the secondary bow being symmetrical about the horizontal*. In your diagram, the secondary bow would appear to include point C, which is not symmetrical about the horizon. Your diagram isn't clear about how (if) the image in direction AC ever appears as an image in direction of B'. I think the inverted bow in the photograph is formed by droplets above the lake surface and rays from the sun that are reflected by the the lake and then by low level droplets. That would account for the symmetry.
I wouldn't call my diagram a 'reflected' rainbow - it isn't formed by the same raindrops as the main bow and it isn't a 'reflection' of the main bow. In fact, it there were only a shallow layer of drops in the air, the 'reflection' bow would be formed but the main one wouldn't.
There is some doubt about your explanation and it would help to resolve it if you could quote another source / reference.
*Notice the apparent vignetting in that picture too.



[Buckleymanor]

The imaging forming structure in a rainbow is different from what happens in a lens - it's more like a multiplicity of lenses, with each lens contributing within a narrow angle. It's a bit like what happens with a lenticular screen or a fresnel lens. I think it's a bit pointless to try to make the rainbow fit in with the more straightforward images that we see. Of course the image is not 'real' because the light behaves as if it comes from way behind the image forming structure. There is no parallax against distant objects so it can be classed as infinitely far away.

I don't think they do, exactly. The distances are so large that it would be difficult to spot but when you move to the left, the bow moves to the left, with you. So it would be moving across the sky relative to the distant stars. The centre of the bow is in line with the Sun and the back of your head. But a rainbow at night? Weird idea! Perhaps it's an experiment you could do with the Moon - if you could arrange the rain to come at the right time of the day and month. But you would need to travel quite a distance sideways to see the effect against the moonscape as a background. (many km to observe a recognisable movement of a fuzzy thing like a rainbow.

You don't have to arrange the rain to come at the right time of the day and month you could make a spray with some with water and a hose.
