Understanding Rankine Cycle Pressures: Should P2 Equal P3?

In summary: C1 = 18 MPa, TMC1 = 580 C, P1 = 6 kPa, P2 = 18.5 MPa, P3 = 18 MPa, T3 = 25 C, Wturbine = m_dot*(h1-h2), Wpump = m_dot*(h3-h4), boiler efficiency = 85%, mechanical efficiency = 88%, generator efficiency = 92%In summary, The problem is about a Rankine cycle power plant where superheated steam at 18 MPa and 580 C enters a turbine and expands through a single stage with an efficiency of 82%. The steam then discharges at 6 kPa and is pumped to
  • #1
Kamuna
9
1
Homework Statement
determine:
a) Electrical power output of the plant if mechanical efficiency & generator efficiency
are 88 % & 92 %, respectively.
b) Heat added in the steam generator if boiler efficiency is 85 %
c) Plant thermal efficiency
Relevant Equations
Rankine cycle
Is this the right path in solving this problem? Am i finding the correct enthalpies? I am also having difficulty understanding so what I've understood is that in a rankine cycle P2=P3 but here P2 is given and P3 has a given variable which is T=25 C too so should I neglect P2=P3?

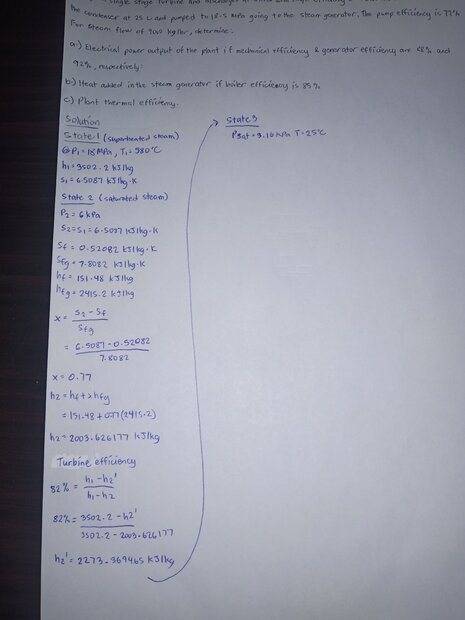

Heres my problem set and the attempt to solve it:

In a Rankine cycle power plant superheated steam enters the turbine at 18 MPa and 580 C. Steam expands through a single stage turbine and discharges at 6 kPa with stage efficiency of 82 %. The condensate leaves the condenser at 25 C and pumped to 18.5 MPa going to the steam generator. The pump efficiency is 77 %. For steam flow of 9,000 kg/hr, determine:

  • Electrical power output of the plant if mechanical efficiency & generator efficiency
  • are 88 % & 92 %, respectively.
  • Heat added in the steam generator if boiler efficiency is 85 %
  • Plant thermal efficiency
Any help would be much appreciated, thanks



Attachments

  • IMG_20220405_215442.jpg
    25.2 KB · Views: 86
Last edited by a moderator:
Physics news on Phys.org
  • #2
I don't quite understand this part: "The condensate leaves the condenser at 25 C and pumped to 18.5 MPa going to the steam generator. Does this mean the pump compresses the steam at 25C and 6 kPa to a pressure of 18.5 MPa and then that steam/hot water is heated in the steam generator at constant volume? If so, how does this result in steam exiting the steam generator at 18 MPa?
