Use a bubble chamber photo to find collision/decay particles

[katamaster818]

Homework Statement

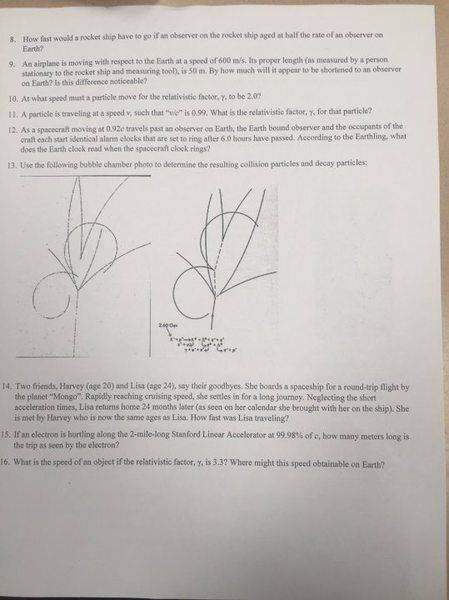

Problem #13 on the attached picture (I can't retype a bubble diagram)

Homework Equations

I honestly have no clue. I know I'm not supposed to say this because I'm supposed to read my textbook first, but this is not covered at all in my textbook, this is a unit my teacher added on to the curriculum, because she thought it would be cool. Furthermore, I was absent the day she taught this, and literally nobody I have asked for help understands how to do this either.

I do know that one person mentioned to me something about a left/right hand rule, to identify the direction of charges.

The Attempt at a Solution

No idea how to start, please, help me lol. I know that there are supposed to be x's that signify something. I also know whenever the lines split, deviate, or curve, some sort of collision has occurred. I've been googling around, but nothing I've found makes any sense to me.

Context: I'm in high school, AP Physics 1, none of this is in my textbook, test is tomorrow, this is one of the practice problems my teacher gave me.



[drvrm]

Context: I'm in high school, AP Physics 1, none of this is in my textbook, test is tomorrow, this is one of the practice problems my teacher gave me.

see
http://teachers.web.cern.ch/teachers/archiv/hst2001/bubblechambers/Alison/index.html

the above site can help you.



[katamaster818]

see
http://teachers.web.cern.ch/teachers/archiv/hst2001/bubblechambers/Alison/index.html

the above site can help you.

Thank you, that helped a lot, I think I have enough of an understanding to at least eliminate the blatantly incorrect answers on my test tomorrow now.
