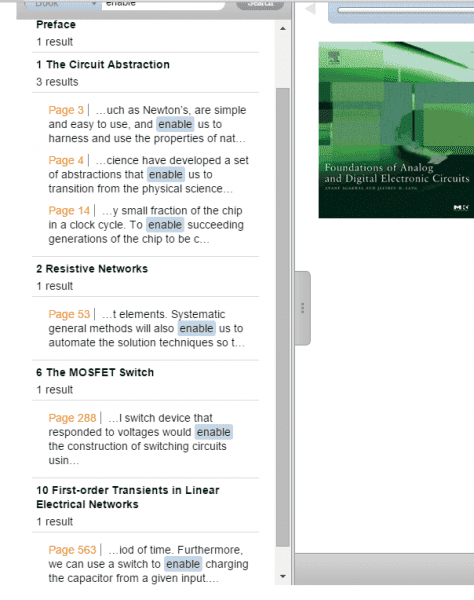

What does "Enable" mean in this picture? The EN

Thread starter LongApple
Start date Jan 28, 2015
Tags

Mean Picture

Click For Summary

SUMMARY

The discussion clarifies the term "Enable" in the context of combinatorial circuits. The logic equation provided is \neg (((A \wedge B) \vee C) \vee EN), indicating that the "Enable" signal (EN) must be asserted for the circuit to function. If EN is not asserted, the circuit remains inactive, which is the fundamental purpose of the "Enable" signal in digital logic design.

PREREQUISITES

Understanding of combinatorial circuits
Familiarity with logic equations and Boolean algebra
Knowledge of digital logic design principles
Basic concepts of signal assertion in electronics

NEXT STEPS

Study combinatorial circuit design techniques
Learn about Boolean algebra simplification methods
Explore the role of enable signals in digital systems
Research practical applications of combinatorial circuits in electronics

USEFUL FOR

Electronics engineers, digital logic designers, students studying computer architecture, and anyone interested in understanding the functionality of enable signals in combinatorial circuits.

Jan 28, 2015

LongApple

I been searching

Engineering news on Phys.org

Jan 29, 2015

Svein

Science Advisor

Insights Author

This is a combinatorial circuit. The logic equation is \neg (((A \wedge B) \vee C) \vee EN). Thus, unless EN is asserted, nothing happens. That is why it is called "Enable".
