What Washer to use? More options that you thought...

  • Thread starter Thread starter Tom.G
  • Start date Start date
AI Thread Summary
The discussion centers around a video that explores various types of washers, their applications, and the reasoning behind their use. Participants express admiration for mechanical engineering, highlighting the design features that prioritize safety, such as the use of shear studs to protect the main chamber during pump failures. There is a humorous remark about the washers potentially being lost in orbit, suggesting a light-hearted take on the challenges of mechanical assembly. Overall, the conversation emphasizes the importance of understanding washer types in engineering contexts. The video serves as an informative resource for those interested in mechanical components.
Tom.G
Science Advisor
Gold Member
Messages
5,661
Reaction score
4,504
A video that covers a multitude of washer types, where to use them and why. Rather well done.



Cheers,
Tom

  • Like
Likes Juanda, OCR, nsaspook and 3 others
Engineering news on Phys.org
Great video!

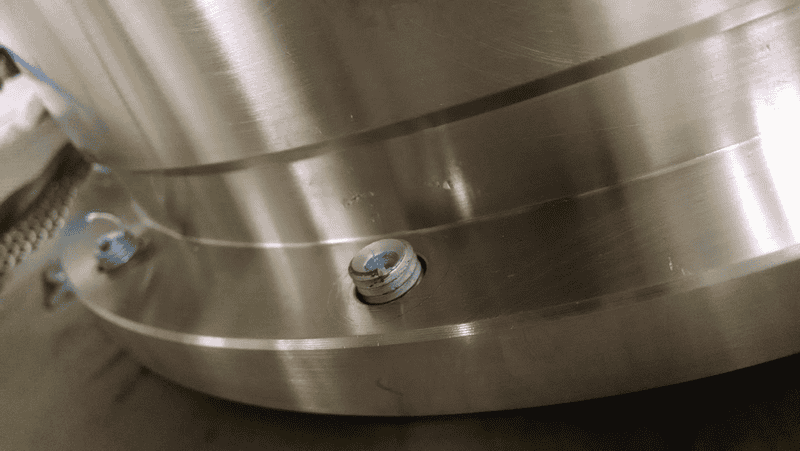

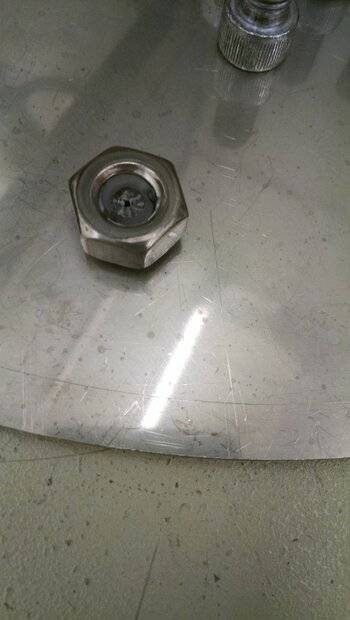

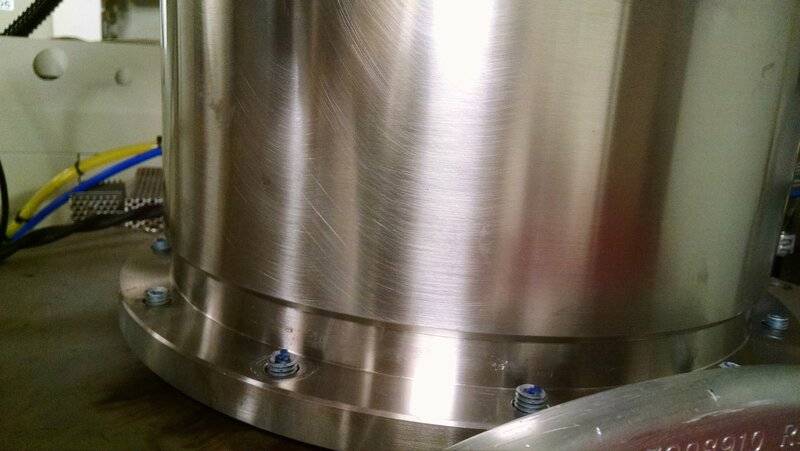

I am constantly amazed at mechanical engineering. The guys would specifically call for mounting studs that would shear off the bolts before destroying the main chamber in case of a catastrophic pump failure.



Those washers holding these down are likely in orbit as we never found them.


Last edited:
nsaspook said:
Those washers holding these down are likely in orbit as we never found them.
Perhaps embedded in the ceiling?
