Designing a Logic Circuit for Decimal Number Sum w/ Multisim

  • Thread starter bue99
  • Start date
  • Tags
    Circuit
In summary, the conversation discusses the design of a logic circuit that can calculate and display the total of two decimal numbers using combinational logic. The circuit will require full adders, encoders, decoders, and a 7 segment display. The individual is looking for suggestions or similar circuits to learn from. The topic of UPS circuits is also briefly mentioned.
  • #1
bue99
1
0
hi everyone. I am a beginner to multisim. as practice, I am trying to design a logic circuit that can calculate and display the total of two decimal numbers. I am familiar with the functions of combinational logic, and i know that this circuit will require full adders, encoders, decoders and 7 segment display, however I am unsure as to how to connect everything.
any suggestions or simliar circuits that i can look at or learn from will be very helpful. thank you.

Engineering news on Phys.org
  • #2

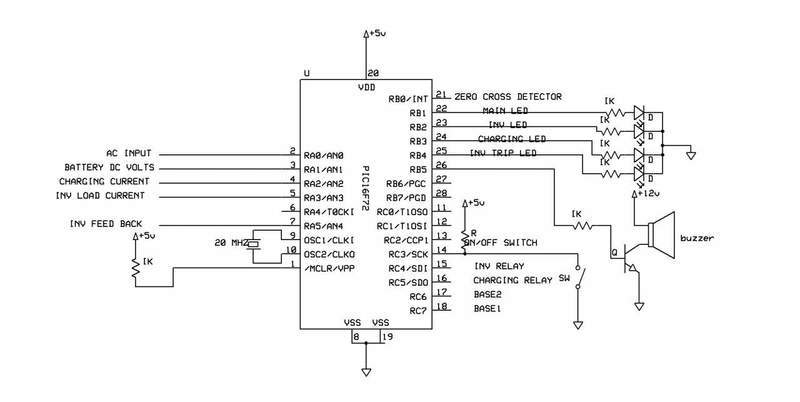

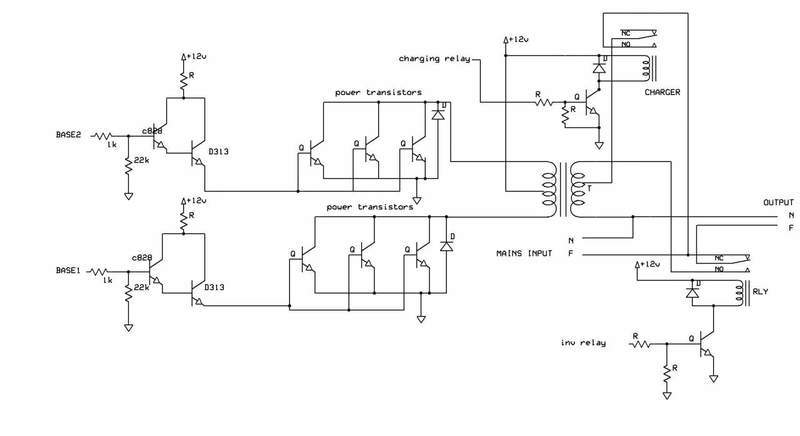

UPS circuit PIC

An uninterruptible power supply, also uninterruptible power source, UPS or battery/flywheel backup, is an electrical apparatus that provides emergency power to a load when the input power source, typically the utility mains, fails.


The circuit diagrams are given here the code is not provided.

Regards,
Jazib.


Attachments

  • controller.jpg
    23 KB · Views: 413
  • inv drive.jpg
    inv drive.jpg
    19.8 KB · Views: 433

What is a logic circuit?

A logic circuit is an electronic circuit that performs logical operations based on input signals and produces output signals. It is made up of logic gates, which are basic building blocks that manipulate input signals to produce desired output signals.

Why is designing a logic circuit for decimal number sum important?

Designing a logic circuit for decimal number sum is important because it allows us to perform mathematical operations on decimal numbers using electronic circuits. This is useful in many applications, such as calculators, computers, and other electronic devices.

What is Multisim?

Multisim is a software program used for designing and simulating electronic circuits. It is commonly used in the field of electrical and electronics engineering for circuit design, analysis, and testing.

How do I design a logic circuit for decimal number sum using Multisim?

To design a logic circuit for decimal number sum using Multisim, you can follow these steps:1. Start by selecting the appropriate logic gates (such as adders, subtractors, and multiplexers) from the Multisim library.2. Connect the inputs and outputs of the logic gates according to the desired circuit design.3. Test the circuit by providing different input values and checking if the output is correct.4. Make any necessary adjustments to the circuit design to ensure accurate results.

What are some common challenges in designing a logic circuit for decimal number sum?

Some common challenges in designing a logic circuit for decimal number sum include selecting the appropriate logic gates for the desired operation, ensuring proper connections between the gates, and accounting for any potential errors or limitations in the circuit design, such as overflow or underflow. It is important to thoroughly test the circuit and make necessary adjustments to ensure accurate results.
