Fluids Mechanics, finding height in the piezometric tube

In summary, piezometric tubes are used to measure the pressure at a specific point in a fluid and can be calculated using the Bernoulli's equation. The height in a piezometric tube is directly related to the pressure and can affect the flow rate of a fluid. Some common applications of piezometric tubes include measuring pressure in pipelines, determining flow rate, and monitoring water levels in tanks and reservoirs.
  • #1
bermet
4
0

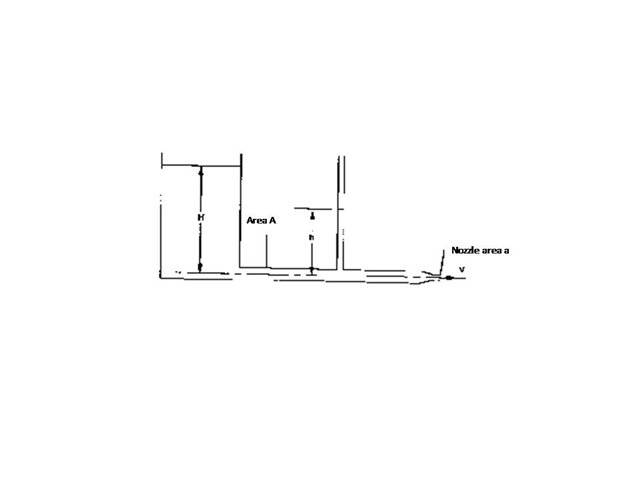

A large open tank, shown below, contains water at a height H. The water is allowed to flow out through a pipe whose cross-sectional area is A. The pipe has a nozzle at the end, whose area is a. Assuming frictionless flow, determine (i) the height h to which the water rises in the piezometer tube, and (ii) the velocity V at the nozzle, for the following three cases:
a = 0, i.e., the nozzle is blocked and no flow is allowed.

a = A/2

a = A


Physics news on Phys.org
  • #2

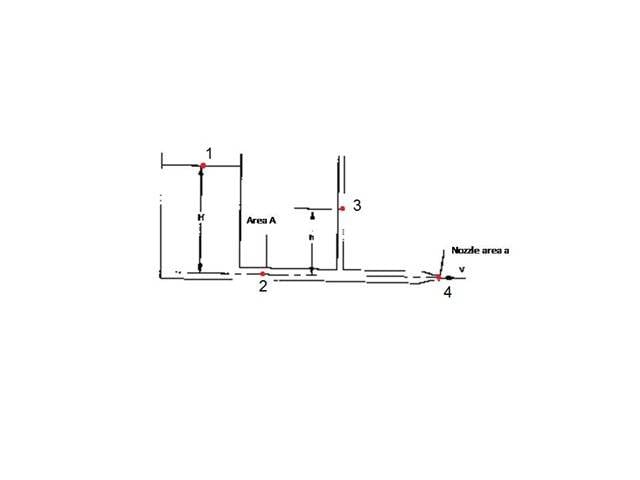

I tried to solve the problem using Bernoulli's at the points shown below:


Related to Fluids Mechanics, finding height in the piezometric tube

1. How do you calculate the height in a piezometric tube?

The height in a piezometric tube can be calculated using the Bernoulli's equation, which states that the sum of the pressure, kinetic energy, and potential energy of a fluid remains constant along a streamline. By measuring the pressure at the base of the piezometric tube and at the desired point, the height can be calculated using the equation:

h = (Pb - Pa) / ρg
where h is the height, Pb is the pressure at the base of the tube, Pa is the pressure at the desired point, ρ is the density of the fluid, and g is the acceleration due to gravity.

2. What is a piezometric tube used for in fluid mechanics?

A piezometric tube is a device used to measure the pressure of a fluid at a specific point. This is important in fluid mechanics as it allows for the calculation of important parameters such as velocity and height. It is commonly used in applications such as determining the flow rate of a fluid or monitoring the pressure in a pipeline.

3. What is the difference between piezometric and piezometric head?

Piezometric head refers to the height of a column of fluid that can be supported by the pressure of that fluid. It is measured using a piezometric tube. On the other hand, piezometric pressure refers to the pressure at a specific point within a fluid. While the two terms are related, they refer to different aspects of fluid mechanics.

4. How does the height in a piezometric tube affect the flow rate of a fluid?

The height in a piezometric tube is directly related to the pressure of the fluid. As the height increases, so does the pressure. This increase in pressure can affect the flow rate of a fluid by either increasing or decreasing it, depending on the specific conditions. For example, a higher height in a piezometric tube can result in a higher flow rate through a pipeline.

5. What are some common applications of piezometric tubes?

Piezometric tubes have various applications in fluid mechanics. Some common uses include measuring the pressure in pipelines, determining the flow rate of a fluid, monitoring the water level in a tank or reservoir, and measuring the pressure in hydraulic systems. They are also used in industries such as oil and gas, water treatment, and aerospace engineering.
