Vishera
- 72
- 1
Homework Statement
Homework Equations
The Attempt at a Solution
Here is my solution:
Is this the most efficient solution? I have to minimize the number of multiplexers I use so I think this is optimal, correct?[/B]
Implementing a Function Using Multiplexers
- Thread starter Vishera
- Start date
-
- Tags
- Function
In summary, multiplexers are digital circuits that select one input signal and output it as a single output signal. They are controlled by select inputs and are used for functions such as data routing, signal switching, and data compression. They have advantages such as simplicity, efficiency, and versatility, but also have limitations such as only being able to output one value at a time and becoming more complex with more inputs and outputs.

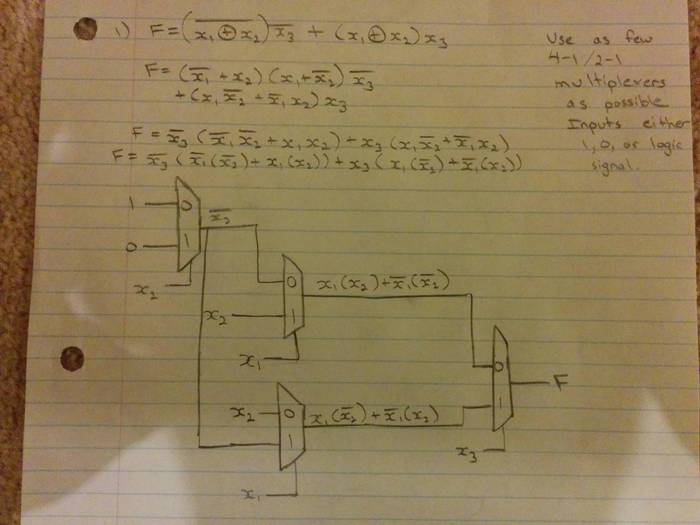

Here is my solution:
Is this the most efficient solution? I have to minimize the number of multiplexers I use so I think this is optimal, correct?[/B]
- #2
.Scott
Science Advisor
Homework Helper
- 3,474
- 1,588
Since you're allowed to use 4:1 multiplexers, there is a 3-gate solution. Your last gate (based on X3) is fine. Here's my final clue: How can a truth table be implemented with a multiplexer?
