Inteference of light ray in thin flim

  • Thread starter desmond iking
  • Start date
  • Tags
    Light Ray
In summary, according to the notes in the photo, the light ray undergo of phase change of 0.5 λ when it strike and reflected from glass surface (denser) at point A. So the OPD of ray 1 & 2 = 2nt-0.5λ.. However, in the 2nd photo, the OPD of ray 1 & 2 is given by 2nt+0.5λ. I am not sure which one is correct. Can someone enlighten me on this?
  • #1
desmond iking
284
2

Homework Statement

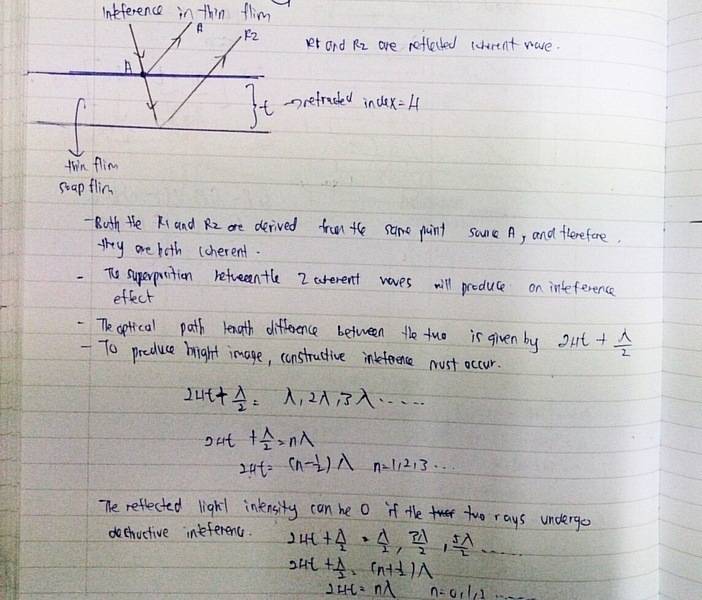

according to the notes in the photo, the light ray undergo of phase change of 0.5 λ when it strike and reflected from glass surface (denser) at point A . so the OPD of ray 1 &2 = 2nt-0.5λ..

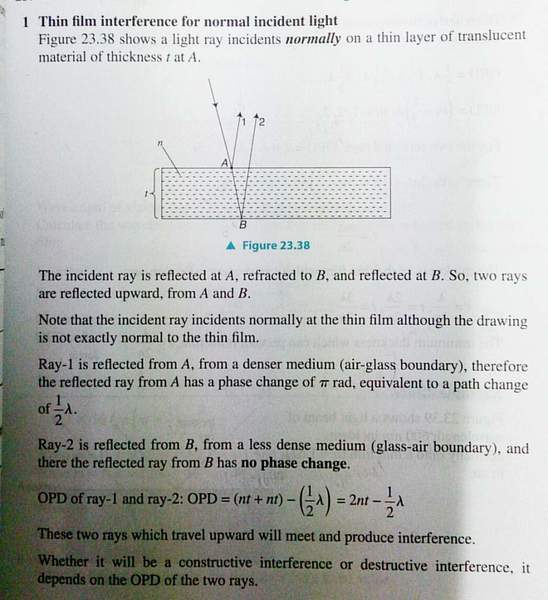

but in the 2nd photo , the OPD of ray 1 & 2 is given by 2nt+0.5λ . i am not sure which one is correct. can someone enlighten me on this?



Homework Equations





The Attempt at a Solution



Attachments

  • IMG_20140831_234953[1].jpg
    42.2 KB · Views: 422
  • IMG_20140831_235624[1].jpg
    53.4 KB · Views: 403
Physics news on Phys.org
  • #2
Well well, you've really gone out of your way to make life easy for us poor helpers...

Now all we need is some relevant equations and your attempt at a solution, right ?

  • #3
Sorry. I don't umderstand the situation so I hope someone can help me out on this.

  • #4
Or should I post this problem in other section? Which section should I post?

  • #5
desmond iking said:

Homework Statement


according to the notes in the photo, the light ray undergo of phase change of 0.5 λ when it strike and reflected from glass surface (denser) at point A . so the OPD of ray 1 &2 = 2nt-0.5λ..
but in the 2nd photo , the OPD of ray 1 & 2 is given by 2nt+0.5λ . i am not sure which one is correct. can someone enlighten me on this?

They are equivalent. The electric field changes to the opposite when reflected from the surface of a higher index material. The phase change can be taken either pi or -pi, all the same. (If you add pi or - pi to the argument of a sine function, you get the same: sin(x+pi) = sin(x) cos (pi) = -sin(x) and sin(x-pi)= sin(x)cos (-pi) = -sin(x) as cos(pi)=cos(-pi)=-1.) They correspond to optical path differences +λ/2 or -λ/2.
I would prefer 2nt+0.5 λ for the optical path difference, so as it is positive even with very thin layers.

ehild

Last edited:
  • Like
Likes 1 person
  • #6
ehild said:
They are equivalent. The electric field changes to the opposite when reflected from the surface of a higher index material. The phase change can be taken either pi or -pi, all the same. (If you add pi or - pi to the argument of a sine function, you get the same: sin(x+pi) = sin(x) cos (pi) = -sin(x) and sin(x-pi)= sin(x)cos (-pi) = -sin(x) as cos(pi)=cos(-pi)=-1.) They correspond to optical path differences +λ/2 or -λ/2.
I would prefer 2nt+0.5 λ for the optical path difference, so as it is positive even with very thin layers.

ehild

hi, please refer to the photo 2 . It is shown that the n start from 1 , but not 0 .
If the n start form 0 , the thickness surely will become negative value. which is indeed wrong.( from mathematical treatment)
I can't understand why the n can't be start from 1 from the physics theory. can you explain on this?

  • #7
desmond iking said:

according to the notes in the photo, the light ray undergo of phase change of 0.5 λ when it strike and reflected from glass surface (denser) at point A . so the OPD of ray 1 &2 = 2nt-0.5λ..
but in the 2nd photo , the OPD of ray 1 & 2 is given by 2nt+0.5λ . i am not sure which one is correct. can someone enlighten me on this?


You asked if the OPD (optical path difference) can be written as 2nt-0.5λ or 2nt+0.5λ. In that context, n is the refractive index and t is the thickness of the layer.
If you use μ to denote the refractive index, you should write the OPD as 2μt-0.5λ.

If you mean the condition of constructive interference, the optical path difference should be integer multiple of λ, 2μt-0.5λ=kλ or 2μt=(k+0.5)λ, k=0, 1,2,...

In case the OPD is taken 2μt+0.5λ, the condition of constructive interference is 2μt=(k-0.5)λ, k=1,2,...ehild

  • #8
ehild said:
If you mean the condition of constructive interference, the optical path difference should be integer multiple of λ, 2μt-0.5λ=kλ or 2μt=(k+0.5)λ, k=0, 1,2,...

In case the OPD is taken 2μt+0.5λ, the condition of constructive interference is 2μt=(k-0.5)λ, k=1,2,...


ehild
why for
2μt=(k-0.5)λ , the k starts from 1 but can't be 0 ? can you explain it using physics theory?

  • #9
t, the layer thickness would be negative at k=0, which is impossible.

ehild

  • #10
ehild said:
t, the layer thickness would be negative at k=0, which is impossible.

ehild

i knew this (from maths) , but can you explain in 'physics way' ?

  • #11
Have you seen anything with negative thickness? For example how would a -0.2 m thick wall look like ?

ehild
