My goodness. How old are these ICs that you want to image? We are in the low nanometer (nm) geometries now...Dr Wu said:
Electron microscopes typically offer a magnification range from about 10x up to several million times (1,000,000x). This wide range allows for detailed visualization of structures at the molecular and atomic levels, which is essential for microchip imaging and other applications in materials science, biology, and nanotechnology.

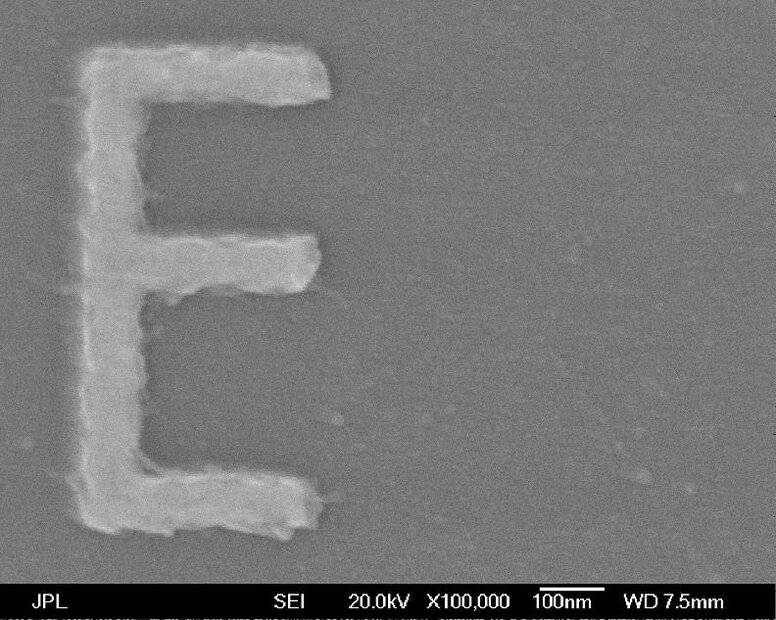

For microchip imaging, the required magnification usually starts at around 100x and can go up to 100,000x or more, depending on the feature size and the level of detail needed. Higher magnifications are used to inspect the finer features of the microchip, such as transistor gates and interconnects, which are often on the nanometer scale.
Electron microscopy provides much higher magnification and resolving power compared to light microscopy. While light microscopes are typically limited to magnifications of around 1,000x to 2,000x due to the wavelength of visible light, electron microscopes use electron beams with much shorter wavelengths, allowing them to resolve structures well below the limits of visible light.
The appropriate magnification level in electron microscopy is determined by the size of the features to be examined and the resolution required. Other factors include the type of electron microscope (Scanning Electron Microscope vs. Transmission Electron Microscope), the sample's material properties, and the specific details that need to be resolved for adequate analysis or inspection.
Yes, there are limitations. Despite their high magnification capabilities, electron microscopes are constrained by factors such as electron beam interactions with the sample, which can cause damage or alter the material. Additionally, higher magnifications may lead to decreased image contrast and require more advanced preparation techniques to preserve the integrity and enhance the visibility of the sample's microstructures.
