Bridge rectifier with capacitor

In summary, the dc output voltage for the errors listed is determined by the decay time of the capacitor voltage and the ripple of the rectified voltage.
  • #1
27
0

Homework Statement

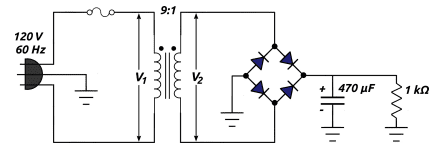

For the following bridge rectifier you are asked to find the dc output voltage for the following errors:
a)the capacitor is an open circuit
b)one of the diodes is open
c)the electrolytic capacitor is connected with reverse polarity



The Attempt at a Solution



My attempt is in the pdf below.If i should have added images of my work as well with the pdf,tell me so that i will know in the future.Thank you in advance for your time.


Attachments

  • New Doc 30.pdf
    1.4 MB · Views: 305
Physics news on Phys.org
  • #2
If the load resistor were not present the capacitor voltage would follow the rectified voltage waveform to a peak and then remain there (current can't flow back through the rectifiers). So the DC output would then be equal to the peak voltage of the rectified voltage.

During normal operation the capacitor will charge up to the peak voltage at the peaks of the rectified waveform. At off-peak times the capacitor alone supplies current to the load. But the capacitor's voltage is going to drop as it does so. What curve will it follow? What's the time constant? How low can the voltage "sag" before the next rise-to-peak of the rectified waveform intercepts it and starts recharging the capacitor? A sketch will help to make it clear.

You can ballpark the sag ("ripple") by using the time between rectified peaks as the decay time for the capacitor voltage and calculate the change. The DC output can be estimated to lie between the peak and trough of the ripple if the ripple is a small fraction of the output. Think of it as a DC value with a small AC component superimposed on it. If the ripple is large compared to the DC component then it becomes time to wheel out the larger math machinery :)

  • #3
For the reversed polarity electrolytic measurement, make sure you wear eye protection. Those electrolytics can go off like a fire cracker when abused in such a callous manner. Or accidently.


1. What is a bridge rectifier with capacitor?

A bridge rectifier with capacitor is an electronic circuit used to convert alternating current (AC) to direct current (DC). It consists of four diodes arranged in a bridge configuration, along with a capacitor that is used to smooth the output voltage.

2. How does a bridge rectifier with capacitor work?

The four diodes in a bridge rectifier with capacitor work together to convert the AC input into a pulsating DC output. The capacitor helps to filter out the high-frequency AC components, resulting in a smoother DC output.

3. What are the advantages of using a bridge rectifier with capacitor?

Some advantages of using a bridge rectifier with capacitor include its simplicity, low cost, and high efficiency. It also eliminates the need for a center-tapped transformer, making it a more compact solution for converting AC to DC.

4. Are there any limitations to using a bridge rectifier with capacitor?

One limitation of using a bridge rectifier with capacitor is that it only provides a pulsating DC output, which may not be suitable for sensitive electronic devices. It also does not regulate the output voltage, so the voltage may vary with changes in the input voltage or load.

5. How can I improve the performance of a bridge rectifier with capacitor?

To improve the performance of a bridge rectifier with capacitor, you can add a voltage regulator circuit after the rectifier to regulate the output voltage. You can also increase the capacitance value of the capacitor to further smooth the output voltage. Additionally, using higher quality diodes can also improve the reliability and efficiency of the circuit.
