Calculating Coaxial Cable Insulation Resistance for Radial Current Density

1 reply · 2K views · last reply
yayovio10
Messages
18
Reaction score
0

Homework Statement


Determine the insulation resistance in a coaxial cable of length L, with conductivity, as shown in Figure assume that the current density J is radial direction.

Diagram of a coaxial cable segment drawn as a cylinder with a dashed inner boundary, labelled L for its length along the top and a for the inner radius and b for the outer radius at the left end.


The Attempt at a Solution



so i was wondering if this approach is correct,

consider a sequence of cylindrical shells of radius r and thickness dr. Each shell has a resistance dR given by:

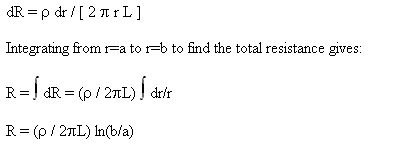

Handwritten-style derivation of radial resistance: dR = rho dr / (2 pi r L), integrated from r=a to r=b giving R = (rho / 2piL) ln(b/a).
