Calculating torque for 50 kg weight rotating about hinge

2 replies · 2K views · last reply
choudhari.mayu
Messages
6
Reaction score
0
PLz find the attached image. Each link weight is given.

the 50 kg weight with link rotates about the red hinge point.

angle is as shown.

please help me out its urgent. need to calculate the torque about the red hinge point.

Attachments

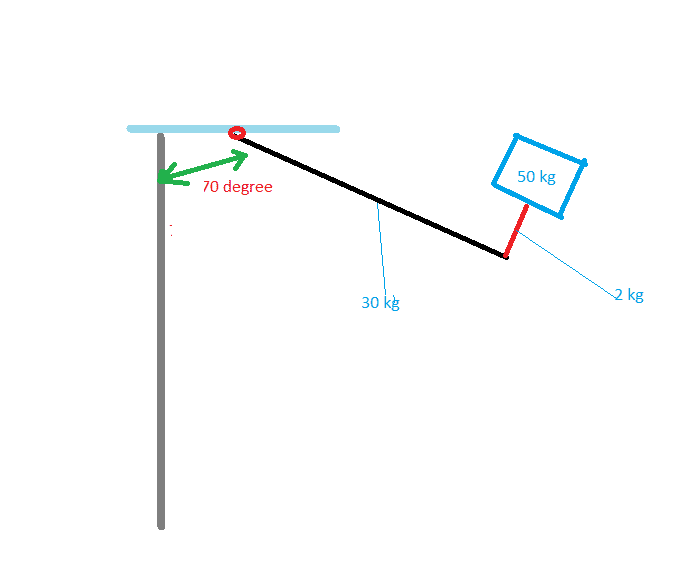

  • Diagram of a pendulum-like linkage hanging from a light blue support bar, with a red hinge at the top. A black rod labelled 30 kg runs down-right to a joint, a red link labelled 2 kg extends from it to a blue box labelled 50 kg, and a green arrow marks a 70 degree angle from the vertical grey post.
    2.8 KB · Views: 544
You can assume link distances as black-x red-y and square: z x z

Homework and homework-style questions should be posted in the appropriate homework forum. Please repost your question there and follow the template provided when you click "New Post". Show whatever work you've managed to do and clearly state where you are having problems. Remember that simply saying "I don't know where to start" is not sufficient. You must show that you've made an effort to understand the question.
