Checking Kirchhoff's current law

In summary, Kirchhoff's current law, also known as Kirchhoff's first law, states that the sum of currents entering a node in a circuit must equal the sum of currents exiting that node. It is important to check this law to ensure the correct functioning of the circuit and to accurately analyze its behavior. This can be done by identifying all nodes in the circuit and summing up the currents entering and exiting each node. If the law is not satisfied, it indicates an error or malfunction in the circuit that must be corrected. Kirchhoff's current law cannot be violated and must hold true in all cases.
  • #1
Special One
32
1
Homework Statement
Prove the law
Relevant Equations
KCL

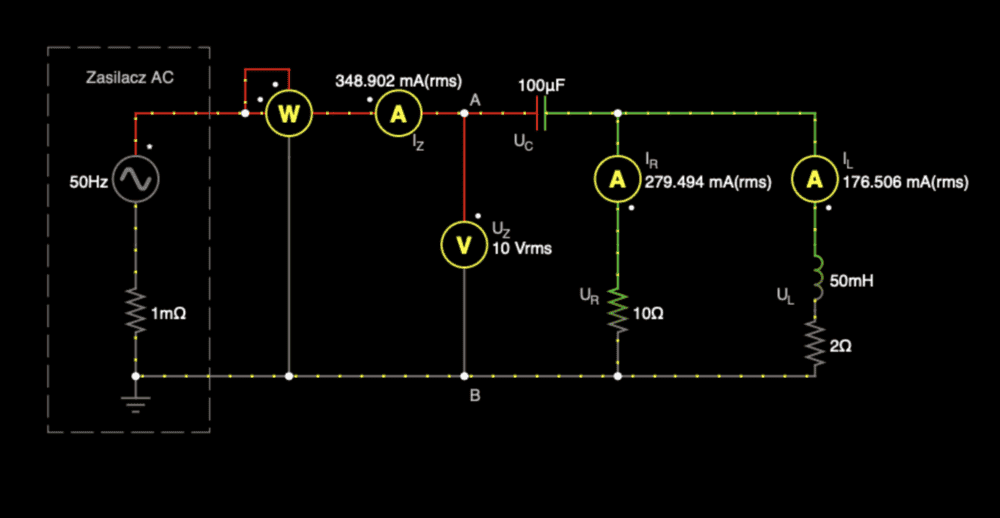

Im trying to apply KCL to the serial c and parallel rl circuit.
Screenshot 2020-11-04 at 22.24.09.png


IZ =
=
= 330.562 mA
but this means incorrect proof.
Anyone can help please?

Physics news on Phys.org
  • #2
Note the 2 Ω resistance in series with the inductor. The branch is not purely reactive in nature. The current through that branch will not be purely 90° out of phase with the current through the resistor branch.

Can you find the phase angle of the impedance of that branch?
