Core volume of 1 phase transformer

  1. May 7, 2017 #1
    1. The problem statement, all variables and given/known data
    The flux density in a single phase core type symmetric(length=breadth=height) transformer is B and flux is Φ. Can we find out the volume of core of transformer if the height of limb is h?

    2. Relevant equations
    Φ = B * Cross sectional area

    3. The attempt at a solution
    Can we say that the volume of core = 4*Cross sectional area*h - Common parts(refer the file uploaded)


    Attached Files:

  2. jcsd
  3. May 12, 2017 #2
    Thanks for the thread! This is an automated courtesy bump. Sorry you aren't generating responses at the moment. Do you have any further information, come to any new conclusions or is it possible to reword the post? The more details the better.

  4. May 16, 2017 #3
    if the thread remained unanswered for some more time, will it be deleted?

  5. May 19, 2017 #4

    rude man

    User Avatar
    Homework Helper
    Gold Member

    If you will explain what you mean by "limb" that would help. Show a "limb" on your diagram?
    And what is the point of mentioning B or flux???

  6. May 19, 2017 #5

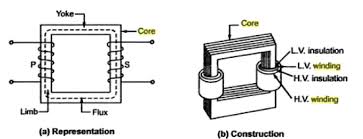

    you can refer the below image for reference. I have mentioned flux and flux density because from these two we can find cross sectional area and with the formula i mentioned above we can find the volume of core.

    Is this the right method to get value of volume of core?


    Attached Files:

  7. May 19, 2017 #6

    rude man

    User Avatar
    Homework Helper
    Gold Member

    B and flux depend on externally applied electrical excitation and have nothing to do with core volume or other geometrical aspects.

  8. May 19, 2017 #7
    If we have flux and flux density as the only parameters and we are suppose to find the core volume, will the above method be right?

  9. May 21, 2017 #8
    Thanks for the answer.
