Drawing an n-cube graph as bipartite

  • Context: Undergrad
  • Thread starter Thread starter Dragonfall
  • Start date Start date
  • Tags Tags
    Drawing Graph
Click For Summary
SUMMARY

The discussion focuses on the method for constructing and visually representing an n-cube graph as a bipartite graph. It begins with the 1-cube, consisting of two points labeled A and B. The process involves duplicating the 1-cube, labeling the copies, and connecting points with the same label, excluding the first letter. Additionally, color-coding the graph based on the first or last letter of the labels is recommended for clarity.

PREREQUISITES
  • Understanding of graph theory concepts, specifically bipartite graphs.
  • Familiarity with n-dimensional geometry and n-cubes.
  • Basic skills in drawing and visualizing mathematical graphs.
  • Knowledge of color-coding techniques for graph representation.
NEXT STEPS
  • Research the properties of bipartite graphs in graph theory.
  • Explore techniques for visualizing higher-dimensional n-cubes.
  • Learn about graph coloring algorithms and their applications.
  • Investigate software tools for graph drawing, such as Graphviz.
USEFUL FOR

Mathematicians, computer scientists, educators, and students interested in graph theory and geometric representations of data.

Dragonfall
Messages
1,023
Reaction score
5
What's the general rule for constructing such graphs? I mean actually drawing it on paper.

Mathematics news on Phys.org

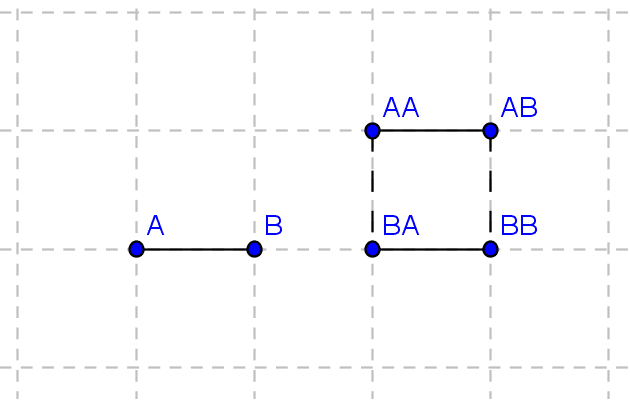

Start with the 1-cube, two points: and label them A and B. Now create 2 copies of the 1-cube and place A's and B's before each points label on the top and bottom copies, respectfully. Like this:
Also connect the points that have the same label other than the first letter (dashed-line in pic). And so on... Color the graph according to the first letter (or last).

Last edited:
