Forces problem with attached diagram

  • Thread starter Stacyg
  • Start date
  • Tags Tags
    Forces
1 reply · 2K views · last reply
Stacyg
Messages
23
Reaction score
0
Hi. The problem is attached. I'm not sure on how to do this. Any help would be great.
Thanks.

Attachments

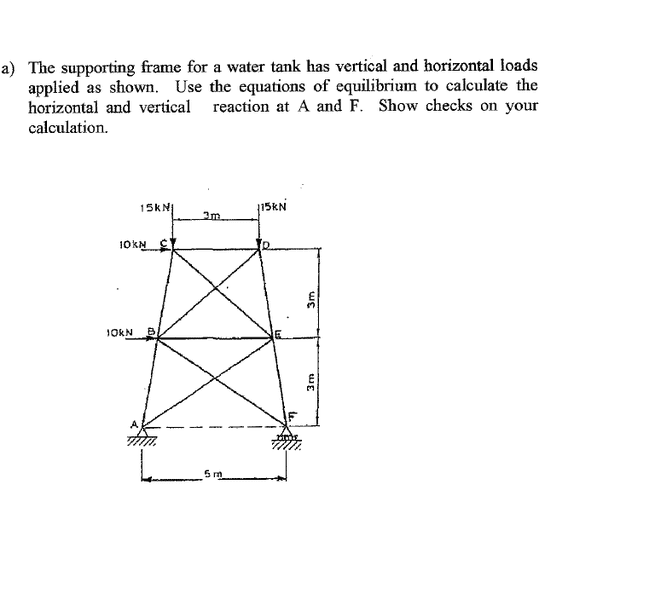

  • Truss diagram of a supporting frame with pinned support A and roller support F at the base, joints B, C, D and E above, cross-bracing, 15kN loads at C and D, 10kN horizontal load at B, dimensions 3m, 3m and 5m.
    17.8 KB · Views: 444
Stacyg said:
Hi. The problem is attached. I'm not sure on how to do this.
And why not? For calculating reactions, use the same approach as you did on your subsequent post on trusses. Note that the roller support at the far right can support vertical loads only.
