MHB Given a K map, minimize the Product of Sums

  • Thread starter Thread starter shamieh
  • Start date Start date
  • Tags Tags
    Map Product Sums
AI Thread Summary
The discussion focuses on minimizing a Sum of Products equation using a Karnaugh map (K map). Participants review and correct each other's answers, ultimately agreeing that the shortest expression is \bar{w}\bar{y}+xy\bar{z}+w\bar{x}y. One user acknowledges their mistake in grouping terms. The conversation highlights the importance of accurate grouping in K map simplifications.
shamieh
Messages
538
Reaction score
0
Awesome thanks.. Mind checking this as well?

Minimize Sum of Products equation given the following K map.

My Answer: $$\bar{y} \bar{w} + wx + y\bar{z}w + yw\bar{x} $$

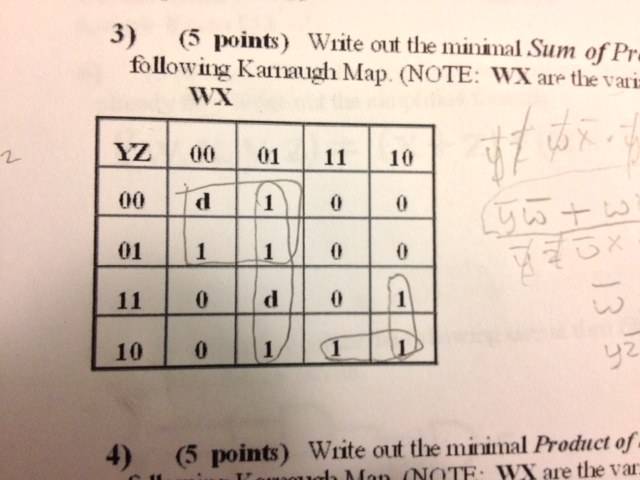

View attachment 1415


Attachments

  • photo.JPG
    29.7 KB · Views: 86
Technology news on Phys.org
Shouldn't that be $\bar y \bar w+\mathbf{\bar{w}x} + y \bar z w+yw\bar x$

BAdhi said:
Shouldn't that be $\bar y \bar w+\mathbf{\bar{w}x} + y \bar z w+yw\bar x$
Yes, but $\bar{w}\bar{y}+xy\bar{z}+w\bar{x}y$ is shorter.

Ahh I see. The correct answer is the 3 term answer provided by Evgeny..Looks like I was grouping wrong, or unnecessarilly. Thanks guys.
