How to reduce this function to minimum form using K-map

Thread starter PainterGuy
Start date Dec 9, 2011
Tags

Form Function Minimum

In summary, a Karnaugh map, or K-map, is a graphical method used to simplify Boolean algebra expressions. It allows for a systematic and visual approach to reducing a complex function into its simplest form with the fewest number of terms and inputs. It is a useful tool in digital logic design as it helps to minimize the number of logic gates needed and reduces the chances of errors. To create a K-map, inputs are arranged in a grid and grouped together based on the function's truth table. There are four rules for grouping cells in a K-map, and once all possible groupings have been made, the resulting expression is in its minimum form.

Dec 9, 2011

PainterGuy

Hi :)

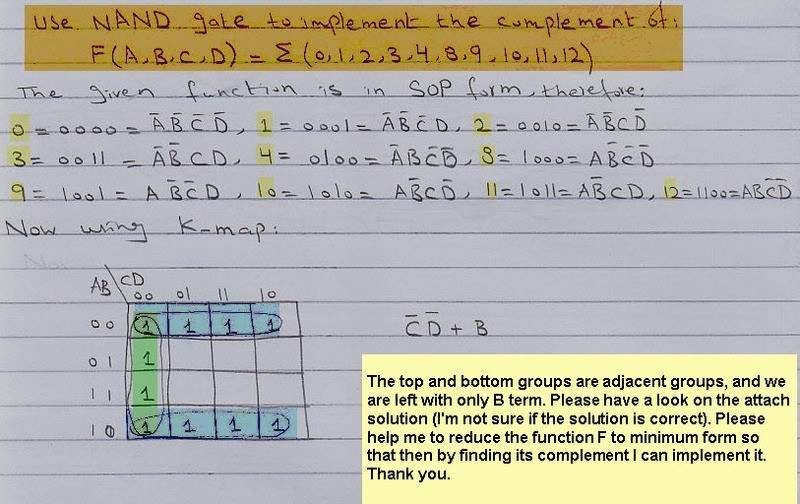

Please have a look on the attachment to see my question. Please help me with it. Thanks

Cheers
PG

Physics news on Phys.org

Dec 9, 2011

berkeman

Mentor

Aren't you left with the B~ term, and not the B term?

What is a K-map?

A Karnaugh map, or K-map, is a graphical method used to simplify Boolean algebra expressions. It is a tool used in digital logic design to reduce a complex function into its simplest form with the fewest number of terms and inputs.

Why should I use a K-map to reduce a function?

A K-map allows for a systematic and visual approach to simplifying a Boolean expression. It helps to minimize the number of logic gates needed, resulting in a more efficient and cost-effective design. It also reduces the chances of errors that may occur when simplifying manually.

How do I create a K-map for a given function?

A K-map is created by arranging the inputs of a Boolean expression in a grid, with each input combination represented by a cell. The cells are then grouped together based on the function's truth table, and the simplified expression can be identified from these groupings.

What are the rules for grouping cells in a K-map?

There are four main rules for grouping cells in a K-map:

Each group must contain a power of 2 cells (1, 2, 4, 8, etc.).
The cells in a group must be adjacent, either horizontally or vertically, but not diagonally.
Groups can wrap around the edges of the K-map.
A cell can only be included in one group.

How do I know when I have reached the minimum form using a K-map?

Once all possible groupings have been made, check to see if any cells are left uncovered. If there are any, try rearranging the groupings to cover these cells. If all cells are covered, the resulting expression is in its minimum form. You can also use the consensus theorem to verify the minimum form.
