Is a Binary-to-Gray Code Converter Considered a Decoder?

  • Thread starter Thread starter go2255
  • Start date Start date
  • Tags Tags
    Code Converter
Click For Summary
SUMMARY

A Binary-to-Gray code converter is not classified as a decoder in electronic terminology. A decoder has N inputs and 2^N outputs, where a specific input combination activates one output while the others remain inactive. The Binary-to-Gray code converter functions distinctly as a converter, transforming one code format into another rather than encoding or decoding signals.

PREREQUISITES
  • Understanding of digital logic design
  • Familiarity with binary and Gray code representations
  • Knowledge of decoder functionality in electronics
  • Basic principles of signal processing
NEXT STEPS
  • Research the principles of digital code conversion techniques
  • Study the differences between encoders, decoders, and converters
  • Explore practical applications of Binary-to-Gray code converters in circuit design
  • Learn about the implementation of decoders in digital systems
USEFUL FOR

Electronics students, digital circuit designers, and engineers interested in understanding code conversion and digital logic systems.

go2255
Messages
11
Reaction score
0

Homework Statement

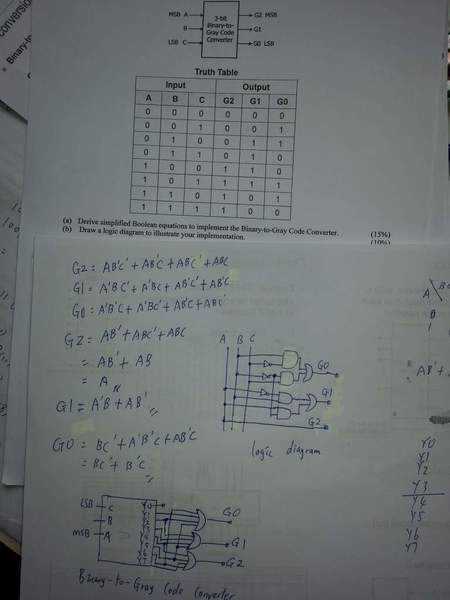

Binary-to-Gray code converter,isn't it a decoder?


The Attempt at a Solution





Attachments

  • 20140316_122843.jpg
    20.8 KB · Views: 830
Physics news on Phys.org
A decoder in electronics parlance has N inputs and 2^N outputs. A given input combination yields a "1" on one and only one output line, the rest are zeros ( a "1" can be a low or a high voltage).


Attachments

  • 490px-Decoder_Example.svg.png
    6.2 KB · Views: 729
It is neither an encoder nor a decoder. It is a converter. See how that works, with the name being "converter" and all ? It converts one code to another code.
