Kmap 4 Variables: Min Sum of Products Homework

  • Thread starter illidari
  • Start date
  • Tags
    Variables
In summary, the conversation is about someone trying to figure out how to write the minimum sum of products for a picture and wondering if they can group certain numbers together. The other person clarifies that they need to be separate terms and that diagonal wrapping is not typically used.
  • #1
illidari
47
0

Homework Statement




Homework Equations





The Attempt at a Solution

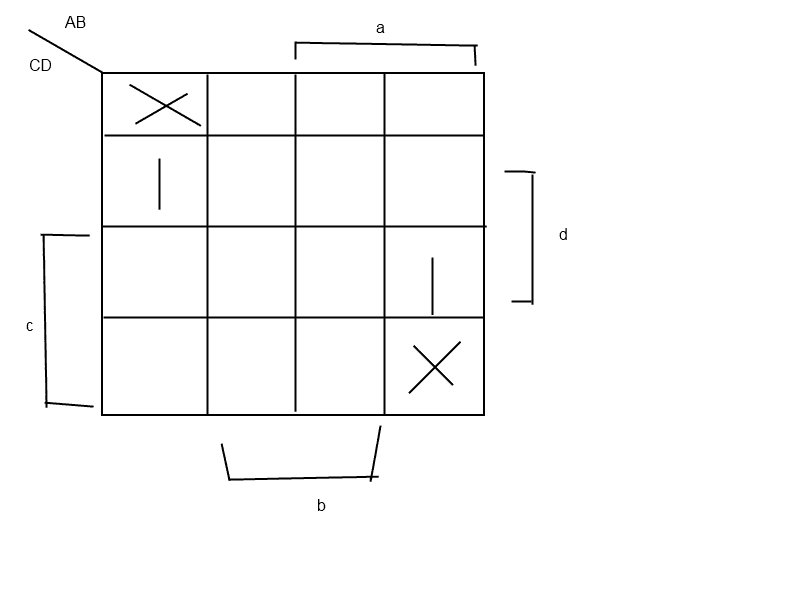

I am trying to figure out how to handle writing the minimum sum of products for this picture. Am I allowed to create a square with the two in the bottom right with the two in the upper left?
Or do I separate them into groups of two?

Just want to make sure :)

Physics news on Phys.org
  • #2
illidari said:

Homework Statement




Homework Equations





The Attempt at a Solution



I am trying to figure out how to handle writing the minimum sum of products for this picture. Am I allowed to create a square with the two in the bottom right with the two in the upper left?
Or do I separate them into groups of two?

Just want to make sure :)

It looks like they need to be separate terms. You can wrap horizonatlly or vertically, but I've never seen a diagonal wrap...


Related to Kmap 4 Variables: Min Sum of Products Homework

1. What is a Kmap with 4 variables?

A Kmap with 4 variables is a graphical representation of a Boolean expression that consists of four variables. It is used to simplify Boolean expressions and identify the minimum sum of products solution for a given logic function.

2. How do I create a Kmap with 4 variables?

To create a Kmap with 4 variables, you will need to first list out all possible combinations of the four variables in binary form. Then, organize these combinations in a 4x4 grid and label the rows and columns with the binary values. Finally, group together adjacent cells with the same output value to create the Kmap.

3. How do I find the min sum of products solution using a Kmap with 4 variables?

To find the min sum of products solution using a Kmap with 4 variables, you need to group together adjacent cells with the same output value to form rectangles of size 1, 2, 4, or 8. Then, write the corresponding Boolean expression for each rectangle and combine them using the OR operation. This will give you the minimum sum of products solution for the given logic function.

4. What are the advantages of using a Kmap with 4 variables?

Using a Kmap with 4 variables allows for a visual representation of a Boolean expression, making it easier to identify patterns and simplify the expression. It also helps to reduce errors and saves time compared to traditional methods of Boolean simplification.

5. Can a Kmap with 4 variables be used for expressions with more than 4 variables?

No, a Kmap with 4 variables is specifically designed for expressions with four variables. For expressions with more variables, a larger Kmap with a higher number of rows and columns would be needed. Alternatively, other methods such as Quine-McCluskey algorithm can be used for simplification.
