Make your own transistor tester

  • Topic: Electronics
  • Thread starter John1397
  • Start date
  • Tags Tags
    Transistor
3 replies · 3K views · last reply
John1397
Messages
189
Reaction score
18
This tester has been in use for 28 years no problem yet. Made out of left overs.


Attachments

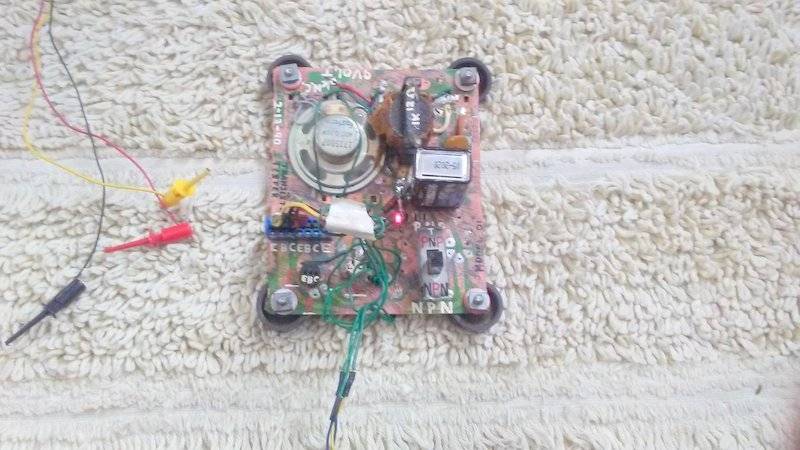

  • Photo of a homemade transistor tester circuit board on a shaggy cream carpet, with a small speaker, a red LED, two adjustable-looking components, and NPN labels printed on the board; test leads with clips run off the left side.
    61.6 KB · Views: 827
  • Like
Likes   Reactions: YoungPhysicist
Cool, do you have the schematic?

  • Like
Likes   Reactions: YoungPhysicist and John1397

Attachments

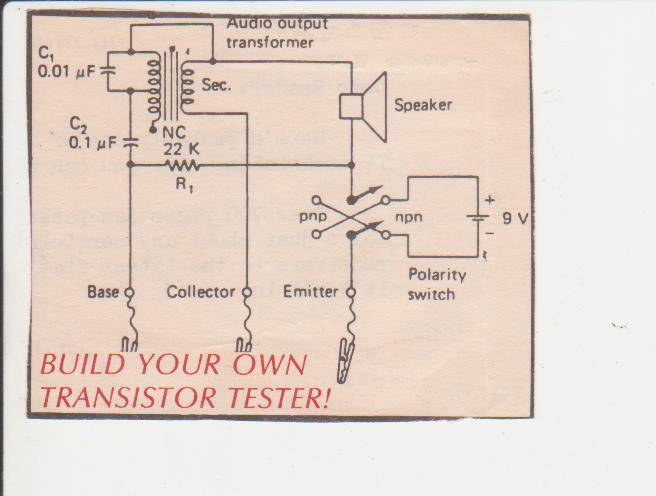

  • Circuit schematic of a transistor tester with C1 0.01 µF, C2 0.1 µF, R1 22 K, an audio output transformer with secondary and NC terminal, a speaker, a pnp/npn polarity switch, a 9 V battery, and base, collector and emitter test leads.
    32 KB · Views: 794
  • Like
Likes   Reactions: YoungPhysicist and berkeman
