Numerical Nonlinear Lifting Line Theory in MA

  1. Jul 4, 2017 #1
    1. The problem statement, all variables and given/known data
    Hello all.
    It is not a homework actually. I just didn't know at which forum I should post. I am working on a MATLAB code solving the finite wing properties iteratively by using the Anderson's Numerical Lifting Line Method. However, I got some wrong results. The circulation (c) values do not seem right and the code found the induced angle of attacks have negative values. I checked all equations. I think I may have mistakes at the structure of the code or while defining the initial values.

    Many thanks in advance for any help given.

    2. Relevant equations
    The paper (3.44690) including the algorithm I follow is attached.

    3. The attempt at a solution
    The MATLAB code (nll) is also attached.
    Code (Matlab M):

    function nll
    format longg
    span=2;
    ym=-span/2; %%%general lift distribution
    yp=span/2;
    noseg=101;
    dy=(yp-ym)/(noseg-1);
    vel=30;
    locc=1000000; %%bu neden 1000000
    % cdif=1;
    alfa=0.1;

    for i=1:noseg
    y(i)=ym+(i-1)*dy;
    c(i)=10*sqrt(1-(2*y(i)/span)^2); %%% c dediğimiz circulation. 10 bizim c0 ımız

    end
    y';
    c';
    %%
    for i=1:(noseg-1)/2.+1
    cbar(i)=0.3+(0.004*(i-1));
    %cbar(i)=0.4;
    end

    for i=1:noseg
    cbar(noseg+1-i)=cbar(i);
    %cbar(i)=0.1;
    end
    %%%%%%%%%%%%%
    cbar';

    iter=0;
    while (iter<=200)
    iter=iter+1;
    % cdif=0;

    totint=0;
    for j=1:noseg

     derc=0;
     down=0;
     intpart=0;

    for i=1:noseg
    if (i==1)
    derc(i)=(c(i+1)-c(i))/(y(i+1)-y(i));
    down(i)=y(j)-y(i);
    intpart(i)=derc(i)/down(i);
    elseif (i==noseg)
    derc(i)=(c(i)-c(i-1))/(y(i)-y(i-1));
    down(i)=y(j)-y(i);
    intpart(i)=derc(i)/down(i);
        else
    derc(i)=(c(i+1)-c(i-1))/(y(i+1)-y(i-1));
    down(i)=y(j)-y(i);
    intpart(i)=derc(i)/down(i);
        end
    % locc;
    if(abs(down(i))<(dy/10))
    locc=i;
    end
    % locc;

    end
    % j;
    % locc;

    if (locc==1)
    intpart(locc)=intpart(locc+1);
    elseif(locc==noseg)
        intpart(locc)=intpart(locc-1);
    else
            intpart(locc)=(intpart(locc-1)+intpart(locc+1))/2.;
    end

    % locc=10000000;



    totint(j)=0;
    for i=2:2:noseg-1;
    totint(j)=totint(j)+dy/3*(intpart(i-1)+4*intpart(i)+intpart(i+1));
    end

    % totint(j);
    aind(j)=totint(j)/(4.*acos(-1.)*vel);
    aeff(j)=alfa-aind(j);
    cl(j)=6.917*(aeff(j));

    cnew(j)=0.5*vel*cbar(j)*cl(j);
    j;



    end
    cold=c;
    cold';
    for i=1:noseg
    c(i)=cold(i)+0.05*(cnew(i)-cold(i));
    end
    c';
    aind';
    cdif=1;
    end

    aind';
    Lift=0;
    indrag=0;
    for i=2:2:noseg-1
    Lift=Lift+dy*(c(i-1)+4*c(i)+c(i+1))/3.;
    % indrag(2)=dy*(c(2-1)*aind(2-1)+4*c(2)*aind(2)+c(2+1)*aind(2+1))/3.;
    indrag=indrag+dy*(c(i-1)*aind(i-1)+4*c(i)*aind(i)+c(i+1)*aind(i+1))/3.;
    % indrag2(i)=indrag(i)*1.225*vel
    end
    Lift=Lift*1.225*vel;
    indrag=indrag*1.225*vel
    S=(cbar(1)+cbar((noseg-1)/2+1))/2.*span;
    AR=span^2/S;
    CL=Lift*2/(1.225*vel^2*S);
    % cdi=indrag*2/(1.225*vel^2*S);
    % oswald=CL^2/cdi/acos(-1.)/AR;

    end

    Added code tags jmc


    Attached Files:

    Last edited by a moderator: Jul 4, 2017
  2. jcsd
  3. Jul 4, 2017 #2

    jim mcnamara

    User Avatar

    Staff: Mentor

    Code HTML tags added to improve readability.

  4. Jul 4, 2017 #3

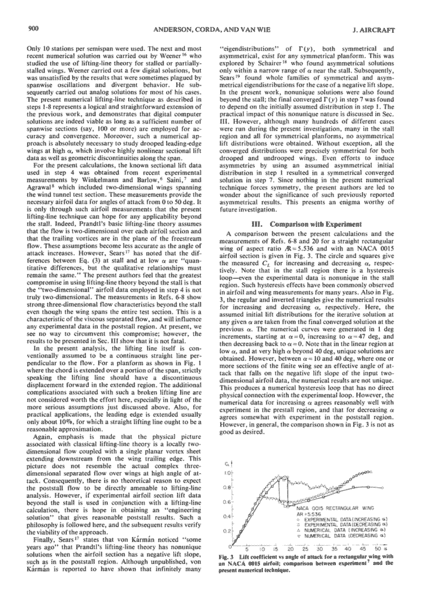

    I couldn't read the paper other than the references. The rest was blank.

  5. Jul 5, 2017 #4

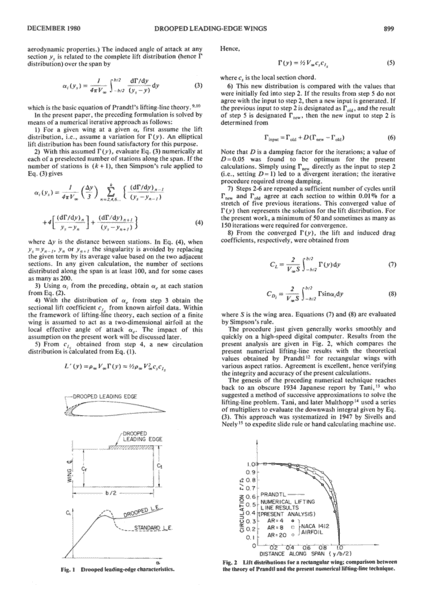

    Oh, I can see the rest of it. Here is the algorithm I followed.



    Attached Files:

  6. Jul 5, 2017 #5
    Thank you
