Problem on bjt SMALL SIGNAL amplifier circuit

Click For Summary
SUMMARY

The forum discussion centers on solving a problem related to a BJT small signal amplifier circuit. The user confidently states that the correct answer is option D but lacks the necessary steps to arrive at this conclusion. The conversation highlights the importance of understanding the underlying principles of BJT amplifiers to validate answers effectively. Participants are encouraged to share their methodologies for solving similar circuit problems.

PREREQUISITES
  • BJT small signal model analysis
  • Basic circuit theory and analysis
  • Understanding of amplifier configurations
  • Knowledge of feedback mechanisms in amplifiers
NEXT STEPS
  • Study BJT small signal amplifier design techniques
  • Learn about common emitter and common collector configurations
  • Explore the use of simulation tools like LTspice for circuit analysis
  • Review feedback theory in amplifier circuits
USEFUL FOR

Electronics students, circuit designers, and engineers working with amplifier circuits who seek to deepen their understanding of BJT small signal amplifiers.

munna007
Messages
34
Reaction score
0
hello friends...

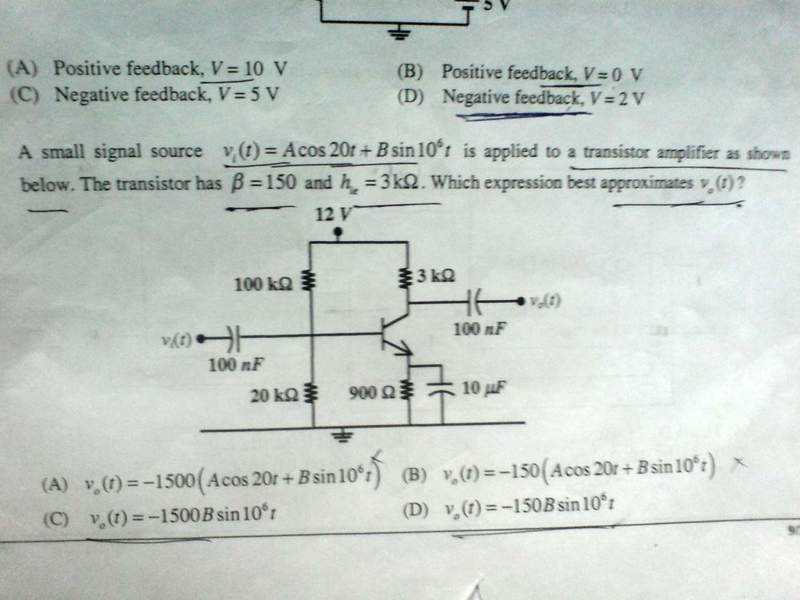

how to solVe this question...i have found its answer is D OPTION.

:smile:


Attachments

  • DSC00028.jpg
    41.2 KB · Views: 523
Physics news on Phys.org
Show the work you performed to lead you to the conclusion that the answer is D.

i don't know how to solve it...i have only the answer keys ,not the solution.
