Statics question involving moments and cranes

In summary, on level ground, a crane with a 50-ft boom angled at 60° in a vertical plane and a 4000-lb load has a bed 3 ft above the ground, a pivot point 6 ft from the center of the cab, and a cab 15 ft forward of the rearmost axle. The cab and boom are also swiveled 45° horizontally from the centerline of the truck bed. The distance between the rear wheel contact points is 8 ft. The task is to determine the turning moment of the load about the x axis.
  • #1
hockeyguy314
3
0

Homework Statement

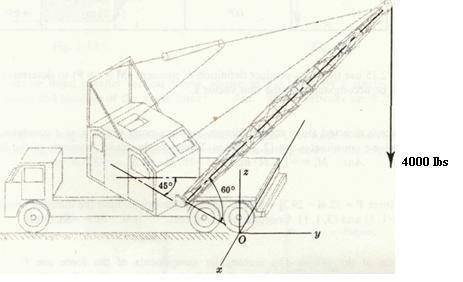

The crane below is on level ground. The x-axis is through the contact points of the rearmost wheels with the ground, the y-axis is parallel to the front-to-back centerline, and the z axis is vertical as shown. The bed (platform) of the crane is 3 ft above the ground. For practical purposes the pivot point of the bottom of the boom can be considered in the bed of the crane and 6 ft from the center of the cab. The center of the cab is on the centerline 15 ft forward (to the left) of the rearmost axle. The 50-ft boom makes an angle of 60° with the bed of the crane in a vertical plane, and the cab and boom are swiveled 45° horizontally from the fore and aft centerline of the truck bed. The distance between the contact points of the rear wheels is considered to be 8 ft. Determine the turning moment of the 4000-lb load about the x axis.


Attachments

  • sdfg.jpg
    13.9 KB · Views: 617
Last edited:
Physics news on Phys.org
  • #2
What ideas do you have about this already? In this forum you have to show some effort before receiving help or hints.


Related to Statics question involving moments and cranes

What is a moment in statics?

A moment in statics is a measure of the tendency of a force to rotate an object about a given point or axis. It is calculated by multiplying the magnitude of the force by the perpendicular distance from the point or axis to the line of action of the force.

How do moments affect the stability of cranes?

Moments play a crucial role in determining the stability of cranes. In order for a crane to remain stable, the sum of all the moments acting on the crane must be equal to zero. If the moments are not balanced, the crane may tip over.

How do you calculate the moment of a force?

To calculate the moment of a force, you must first determine the perpendicular distance from the point or axis to the line of action of the force. Then, multiply this distance by the magnitude of the force. The resulting value is the moment of the force.

What is the principle of moments?

The principle of moments states that for an object to be in equilibrium, the sum of all the clockwise moments must be equal to the sum of all the counterclockwise moments. This principle is frequently used in statics to analyze the balance and stability of objects.

How can moments be used in crane design?

Moments are essential in crane design as they help determine the required counterweight and positioning of the crane to ensure stability. Engineers also use moments to calculate the maximum load capacity of cranes and to determine the proper placement of the crane's center of gravity.
