Two Port (Z Parameters Calculation)

Click For Summary
SUMMARY

The discussion focuses on calculating the Z parameters for a two-port network, specifically addressing the confusion around determining the voltage V1. Participants emphasize the importance of nodal analysis in solving for V1 and suggest expressing V1 and i1 in terms of V2, assuming i2 equals zero. This method provides a clearer pathway to finding the necessary values in circuit analysis.

PREREQUISITES
  • Nodal analysis in electrical circuits
  • Understanding of two-port network parameters
  • Basic circuit theory and equations
  • Familiarity with voltage and current relationships
NEXT STEPS
  • Study nodal analysis techniques for circuit analysis
  • Research Z parameters in two-port networks
  • Explore methods for expressing circuit variables in terms of others
  • Practice solving circuit problems involving multiple variables
USEFUL FOR

Electrical engineering students, circuit designers, and anyone studying two-port network analysis will benefit from this discussion.

CoolDude420
Messages
199
Reaction score
9

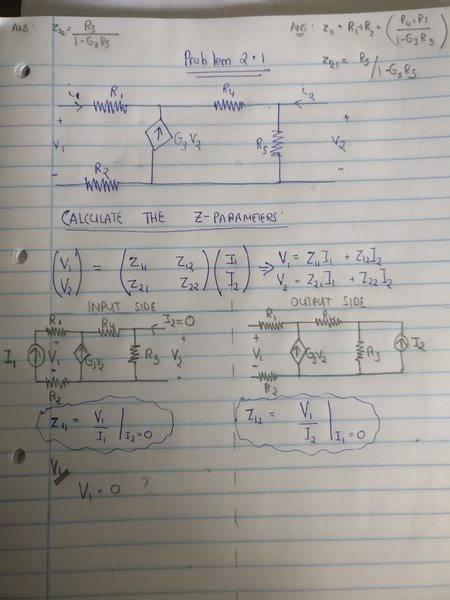

Homework Statement


Attached

Homework Equations


On page

The Attempt at a Solution



I'm quite confused as to how to find V1? I'm quite sure it isn't 0. I can't seem to think of a way to find it


Attachments

  • IMG_20171006_122131.jpg
    32.9 KB · Views: 517
Physics news on Phys.org
Your attempt is not clear. Have you studied nodal analysis?

Hint: Express V1 and i1 in terms of V2 (assume i2=0 of course).

Last edited:
