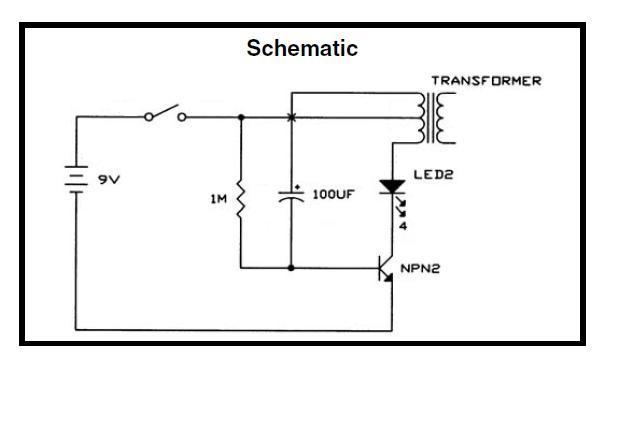

Explain how the circuit works (explaining each part of the circuit). no idea...
It would be a great help! Thanks in advance!
Last edited:
Understanding the Lighthouse Circuit: A Comprehensive Explanation
- Context: Engineering
- Thread starter joedozzi
- Start date
-
- Tags
- Circuit
Join the discussion
Registration is free. Ask a follow-up in this thread, or start your own.
3 replies · 3K views
- 2,128
- 32
joedozzi: What happens when you apply a voltage source to a capacitor? Come on, joedozzi; give us something.
Or would you rather use a 555 timer IC?
Or would you rather use a 555 timer IC?
joedozzi
- 20
- 0
Actually have no idea. Doesn't a capacitor hold a charge? ... What happens in the rest of it the resistor? the crossed wire... transistor, transformer, etc.?
joedozzi
- 20
- 0
OK i so far understand that when the switch is closed current flows to the capacitor. The capacitor than receives a charge, and when it has enough of a charge the transistor is turned on, which causes the LED to turn on. LED draws current from the capacitor causing the amount of current in the capacitor to decrease. Not enough energy to light up the LED, LED turns off, cycle repeats.
Question: What is the role of the resistor, the transformer, and the transistor in this circuit (how do they work together as part of a timing circuit?)
