What is the equivalent capacitance between points A & B?

Click For Summary

Homework Help Overview

The problem involves finding the equivalent capacitance between two points, A and B, in a circuit with multiple capacitors. The discussion centers around the configuration of these capacitors and their connections, specifically whether they are in series or parallel.

Discussion Character

  • Conceptual clarification, Assumption checking

Approaches and Questions Raised

  • Participants explore the configuration of capacitors, with one suggesting they are in parallel and then in series. Questions arise regarding the potential difference across the capacitors and the implications of steady state conditions.

Discussion Status

The discussion is ongoing, with participants questioning the original poster's reasoning and exploring the implications of steady state on the circuit's behavior. Some guidance has been offered regarding the potential differences and how they affect the circuit simplification.

Contextual Notes

There is a mention of a wire with a resistor and the need for more context regarding any applied varying potential, which may influence the analysis of the circuit.

Kronos
Messages
3
Reaction score
0

Homework Statement

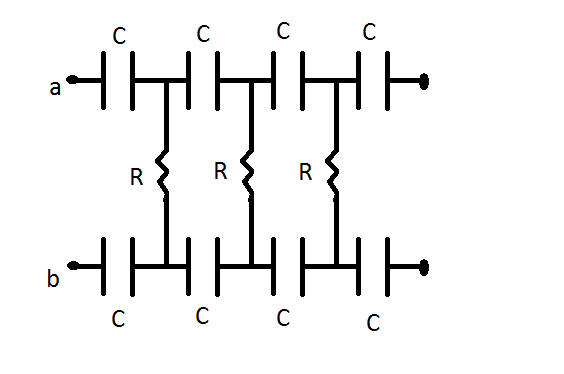

Find the equivalent capacitance between points A & B


Homework Equations



Ceq1 = C + C
1/Ceq2 = 1/2C + 1/2C + ...

The Attempt at a Solution


[/B]
It is my understanding that each capacitor top and bottom are connected in parallel, so their equivalent is 2C.


Now, they are all connected in series, so their equivalent would be:
1/Ceq2 = 1/2C + 1/2C + 1/2C + 1/2C

Thus,
Ceq2 = C/2

Is my reasoning acceptable?
Thank you.

Physics news on Phys.org
Kronos said:
each capacitor top and bottom are connected in parallel
If the effective capacitance sought were between the left hand side and the right hand side, that would work. But it isn't.

Is there more context here, like an applied varying potential?
If not, think about potentials. What might the potential difference be between the right hand side of the top left capacitor and the right hand side of the bottom left capacitor?

The potential difference would just be zero since the capacitors are at steady state. Thus, there is no current flowing through the wire w/ resistor, and by Ohm's law:
V = I*R
V = (0) * R
V = 0

Kronos said:
The potential difference would just be zero since the capacitors are at steady state. Thus, there is no current flowing through the wire w/ resistor, and by Ohm's law:
V = I*R
V = (0) * R
V = 0
Right. Does that help you simplify the circuit?

haruspex said:
Right. Does that help you simplify the circuit?
Yes. That means that the capacitor on the top left and the capacitor on the bottom left are connected in series, correct? Since the same charge will flow through them.

Kronos said:
Yes. That means that the capacitor on the top left and the capacitor on the bottom left are connected in series, correct? Since the same charge will flow through them.
That's how I read it.
