Homework Statement
A sinusoidal voltage source v =10sin(ωt) Volts is connected across a 1 kΩresistor.
1. Make a sketch of p(t), the instantaneous powersupplied by the source.
2. Determine the average power supplied by the source.
3. Now, suppose that a square wave generator is used as thesource. If the square wave signal has a peak-to-peak of 20 Voltsand a zero average value, determine the average power supplied bythe source.
4. Next, if the square wave signal has a peak-to-peak of 20Volts and a 10-Volt average value, determine the average powersupplied by the source.
Relevant Equations
I would upload my solution soon
I would upload it soon

Physics news on Phys.org
  • #2
Okay, we will wait then...

BTW, you can use the UPLOAD button to attach a PDF of your work, or even better is to type your work into the forum window. There are some math symbols available in the Edit Bar, and you can find a helpful LaTeX math equation tutorial under INFO, Help at the top of the page.

  • #3
Electgineer said:
I would upload it soon

I am able to do the second question, but I don't understand the other part. Thanks


Attachments

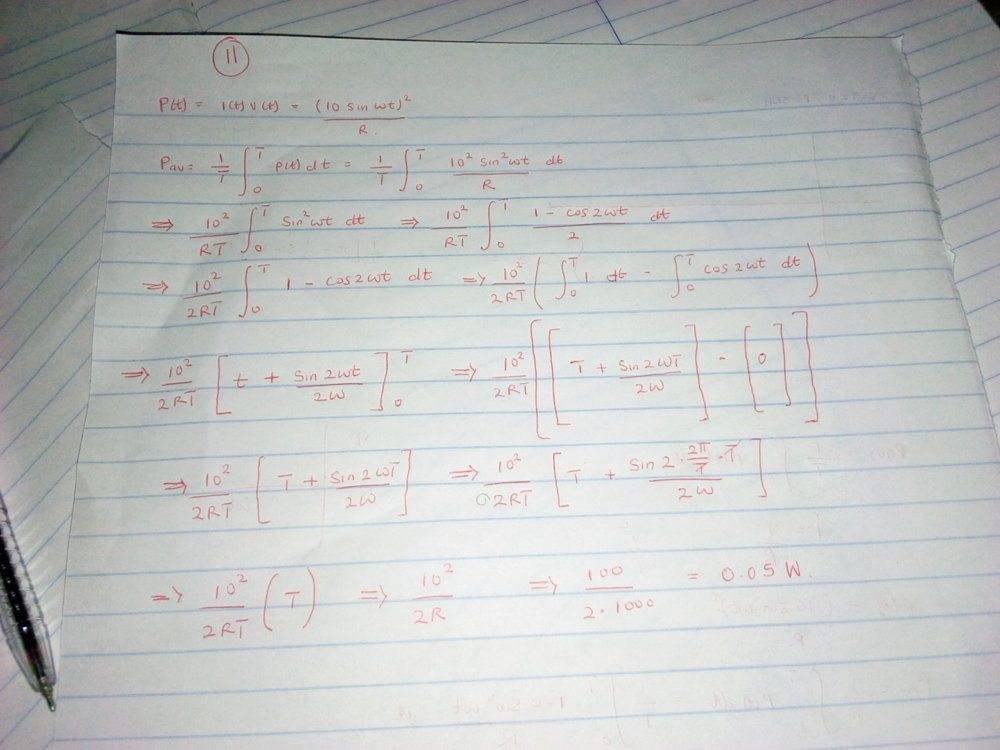

  • IMG_20190412_205117.jpg
    73.2 KB · Views: 303
  • #4
Electgineer said:
I am able to do the second question, but I don't understand the other part. Thanks
The photo is pretty hard to read. Do you have access to a scanner? Better yet, have you looked at the LaTeX tutorial that I pointed you to? :smile:


1. What is a sinusoidal voltage source?

A sinusoidal voltage source is a type of electrical power source that produces a voltage waveform in the shape of a sine wave. This type of voltage source is commonly used in AC circuits and is characterized by its frequency and amplitude.

2. How is a sinusoidal voltage source different from other types of voltage sources?

A sinusoidal voltage source differs from other types of voltage sources, such as DC or square wave sources, in its waveform. While DC and square wave sources produce a constant or square-shaped voltage, respectively, a sinusoidal voltage source produces a varying voltage that follows a sine wave pattern.

3. What is the frequency of a sinusoidal voltage source?

The frequency of a sinusoidal voltage source refers to how many cycles of the sine wave occur in one second. It is measured in Hertz (Hz) and is typically denoted by the symbol f. The frequency of a sinusoidal voltage source can range from a few Hz to several MHz.

4. How is the amplitude of a sinusoidal voltage source determined?

The amplitude of a sinusoidal voltage source is the maximum voltage value of the sine wave. It is typically denoted by the symbol Vmax and is measured in volts (V). The amplitude of a sinusoidal voltage source can be adjusted by changing the voltage source's settings or by using a voltage divider circuit.

5. What are some common applications of sinusoidal voltage sources?

Sinusoidal voltage sources are commonly used in AC circuits for a variety of applications, including power generation, signal processing, and electronic devices. They are also used in audio systems, electric motors, and many other electrical and electronic systems that require a varying voltage source.
