Suction Pressure at different orifices

In summary, the conversation discusses the pressure distribution in a chamber with a tube connected to a vacuum pump and three orifices with different diameters. The question is whether the pressure experienced by the porous membrane at each orifice will be the same and if anything will change if the orifices are replaced by tubes. The suggestion is to use Bernoulli equation to calculate the air pressure and velocity in each pipe and it is mentioned that the pressure will be smaller in the pipe with a 2 mm diameter.
  • #1
bluetooth
5
0
Hello engineers,

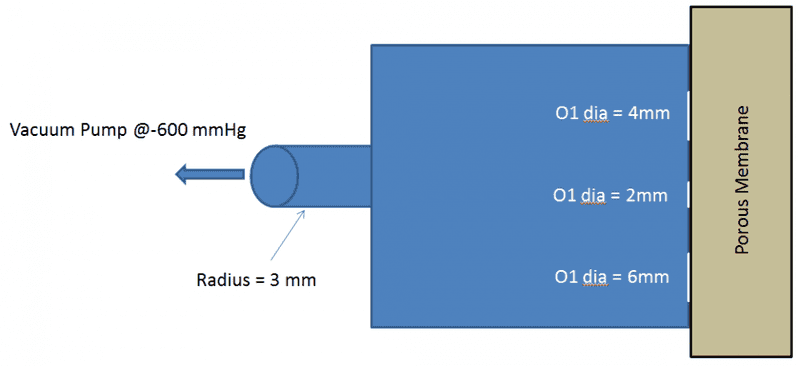

I am struggling with this seemingly simple problem and I was hoping to get some directions. Please look at the attached figure. I have a small chamber with a tube (radius=3mm) that is connected to a vacuum pump. The pump operates at -600 mmHg. The chamber is filled with air at room temperature. The other surface of the chamber has 3 orifices with diameters 2, 4 and 6 mm. Assume that there is a a porous membrane on the other side of the chamber. Now:
What is the pressure at each of the orifices? Since pressure is force per unit area, I would think that the pressure (force per unit area) experienced by the porous membrane at each orifice will be the same. Is that right? Will it be -600 mmHg. Or will it vary depending on the orifice size?

Further, if the orifices are replaced by tubes with diameters corresponding to the respective orifices they replaced, what (if anything ) will change? I think we can perhaps calculate the air pressure and velocity in each pipe using Bernoulli equation. For pipe with 2 mm diameter, the pressure will smaller.
Is this correct? Please help me understand this correctly.
I appreciate any response in advance.


Attachments

  • suction_orifice.PNG
    14.7 KB · Views: 416
Engineering news on Phys.org
  • #2
So many views and no suggestions? Please help ??
