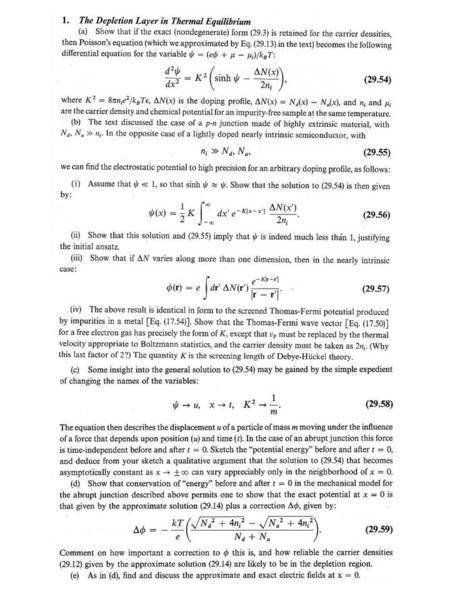

The depletion layer in thermal equilibrium refers to the region between the p-type and n-type semiconductor materials in a diode that is depleted of free charge carriers due to the diffusion of majority carriers.
The depletion layer forms when a p-type and n-type semiconductor are brought into contact with each other. The majority carriers (holes in the p-type and electrons in the n-type) diffuse across the junction, leaving behind a region of immobile ions and creating a depletion of charge carriers.
In thermal equilibrium, the rate of diffusion of majority carriers is equal to the rate of recombination, resulting in a steady-state condition where the depletion layer remains constant. This allows for a stable barrier to be formed between the p-type and n-type regions, which is essential for the proper functioning of a diode.
At higher temperatures, the rate of diffusion and recombination of charge carriers increases, leading to a wider depletion layer. This can result in a decrease in the diode's ability to block current in the reverse direction. Conversely, at lower temperatures, the depletion layer may become narrower, leading to a higher breakdown voltage.
The depletion layer plays a crucial role in the functioning of diodes, which are essential components in electronic circuits. It also has applications in solar cells, where the depletion layer is responsible for separating charge carriers and creating a potential difference. Additionally, the depletion layer is utilized in sensors and detectors, such as photodiodes and phototransistors, to convert light into electrical signals.
