Understanding DC Load Line and its Relationship with VCE & IC

In summary, the relationship between VCE and IC is linear in the active region, with a slant line describing the variation between the two as IB is changed. The concept of load line is used to set the Q point, which is the midpoint of the load line, for faithful amplification and preventing the transistor from entering cutoff or saturation regions. While load line can be used for all components, it is mostly used for non-linear loads. Setting the Q point means determining the input current (base current) for a desired value of IC and VCE where they are proportional.
  • #1
Pushoam
962
51

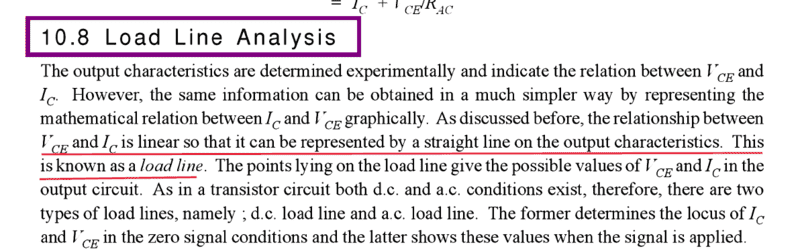

I didn't understand the following:
The relationship between ##V_{CE} ## and ##I_C## is linear.



In active region, even if the ##V_{CE}## increases, ##I_C## remains almost same for a given ##I_B##. So, how can the relation between the two can be linear?

Can anyone tell me the utility of the d.c. load line?
What I lknow is for a faithful amplification, if the Q- point is taken as the midpoint of the d.c.load line, then we will get the desired output.

Is the concept of load line used only for BJT?

Physics news on Phys.org
  • #2
Pushoam said:
In active region, even if the VCEVCEV_{CE} increases, ICICI_C remains almost same for a given IB. So, how can the relation between the two can be linear?
This is what the horizontal lines in the graph represent. The slant line describes the relation between IC and VCE as IB is varied (in the active region) and Vcc is kept constant. Hence, for smaller IB, Ic is also small which means VCE is large. As IB goes on increasing, Ic increases as well and VCE decreases.
Pushoam said:
Can anyone tell me the utility of the d.c. load line?
What I lknow is for a faithful amplification, if the Q- point is taken as the midpoint of the d.c.load line, then we will get the desired output.

Is the concept of load line used only for BJT?
Load line is used to set the Q point, which is almost the midpoint of the load line. From the above graph, you can see the variation in output voltage w.r.t. variation in base current. This midpoint operation prevents the transistor from going into cutoff or saturation regions and the output waveform is linearly amplified (faithful operation).
Pushoam said:
Is the concept of load line used only for BJT?
It can be used for all the components, but I've seen it being used mostly for non-linear loads.

Last edited:
  • #3
cnh1995 said:
The slant line describes the relation between IC and VCE as IB is varied (in the active region) and Vcc is kept constant.
This is what I missed. Thank you for helping me.

But even if ##I_B## is varied, ##I_C## is not proportional to ##V_CE##.
Setting Q-point means?
Does it mean that for a desired value of ##I_C## and ##V_CE## such that ##I_C ## is proportional to ##V_{CE}##, the load line helps to determine the input current i.e. the base current?

Last edited:

1. What is a DC load line?

A DC load line is a graphical representation of the relationship between the collector-emitter voltage (VCE) and collector current (IC) in a transistor circuit. It helps to visualize the operating point and limits of the transistor.

2. How is a DC load line determined?

A DC load line is determined by plotting the transistor's characteristic curve on a graph, which shows the relationship between VCE and IC for different values of base current (IB). The load line is then drawn by connecting the maximum and minimum points on the characteristic curve.

3. What is the significance of the DC load line?

The DC load line helps to determine the operating point of a transistor circuit. The intersection of the load line and the characteristic curve represents the point at which the transistor is biased, and the corresponding values of VCE and IC can be used to calculate the power dissipation and voltage gain of the circuit.

4. How does VCE affect the DC load line?

VCE is the voltage drop across the collector-emitter junction of a transistor. As VCE increases, the slope of the DC load line decreases, indicating a decrease in current gain and power dissipation. When VCE reaches the breakdown voltage, the transistor can be damaged.

5. How does IC change with variations in VCE on the DC load line?

As the VCE increases, the IC decreases due to the decrease in current gain. The opposite is also true, as VCE decreases, IC increases. This relationship is shown by the slope of the DC load line, which represents the output resistance of the transistor circuit.
