A problem with equivalent resistance

1 reply · 1K views · last reply
fizica
Messages
1
Reaction score
0

Homework Statement



Find the equivalent rezistance in the following (see the attachament) if the rezistance for all the resistor are R ?

what is the resistance from AB, AC, AD?

Attachments

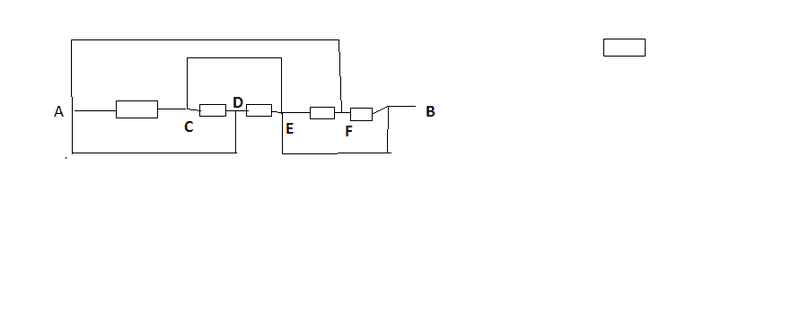

  • Circuit schematic of resistors between terminals A and B, with junction points labelled C, D, E and F, and wires connecting A, C, D, E, F and B in a network.
    2.3 KB · Views: 519
