Behavior of sequential circuits

  • Context: Engineering
  • Thread starter Thread starter Nyasha
  • Start date Start date
  • Tags Tags
    Behavior Circuits
Click For Summary

Discussion Overview

The discussion revolves around understanding the behavior of a sequential circuit, specifically its counting sequence. Participants explore methods to analyze the circuit's operation, which is influenced by its clock signal.

Discussion Character

  • Exploratory, Technical explanation, Conceptual clarification

Main Points Raised

  • One participant inquires about a systematic method to determine the behavior of a sequential circuit, expressing confusion over the textbook's counting sequence.
  • Another participant clarifies that there is no mathematical formula for this analysis, emphasizing the time-dependent nature of the circuit due to its clock.
  • A participant suggests that understanding the behavior of the Toggle flip-flop should aid in comprehending the counting mechanism of the circuit.
  • There is a confirmation that the circuit counts from 0 to 7.

Areas of Agreement / Disagreement

Participants generally agree that the circuit counts from 0 to 7, but there is no consensus on a systematic method for determining its behavior.

Contextual Notes

The discussion does not address specific assumptions or definitions that may affect the understanding of the counting sequence.

Nyasha
Messages
127
Reaction score
0

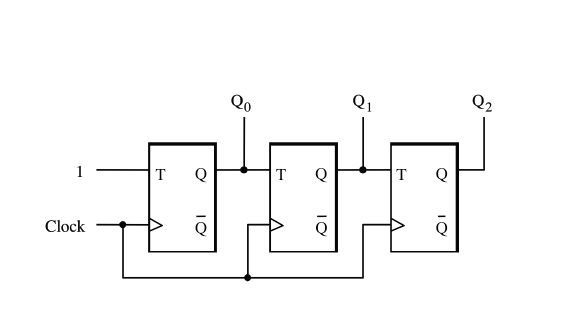

Is there a systematic way in which l can determine the behavior of this sequential circuit ? The textbook gives me its counting sequence but l don`t understand how they came to it


Attachments

  • Capture (1).JPG
    Capture (1).JPG
    7.9 KB · Views: 478
Physics news on Phys.org
What do you mean a systematic way ?

There's not a mathematical formula. That circuit has a clock so it's time dependent.
I think you know the behaviour of the Toggle flipflop, so it should be easy to understand why it counts.

Does it count from 0-7 then ?

Yes sure .
