Calculating Moment about a Point: Understanding FDCsin and FDCcos

3 replies · 2K views · last reply
chetzread
Messages
798
Reaction score
1
1. The problem sttatement, all variables and given/known data
i don't understand the moment FDC(sin18.43)(9) , I think it's wrong..
http://imgur.com/a/qPdqf

Homework Equations

The Attempt at a Solution


I think it should be FDC(cos18.43)(3), am i right?
the r is the perpedicular distance from D to force FDC, i have circled it...
Or I'm wrong? FDCsin18.43)(9) represent other moment?

sorry, photo here

Attachments

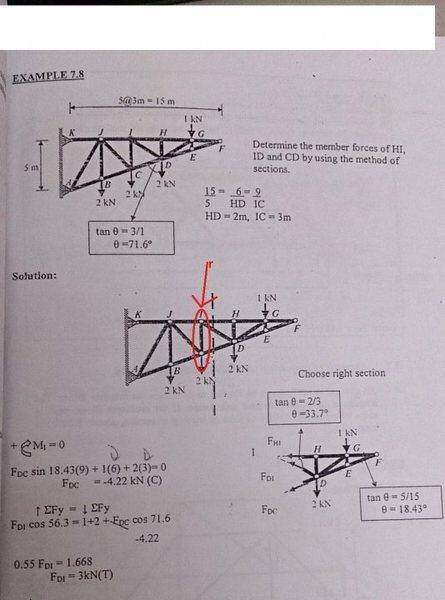

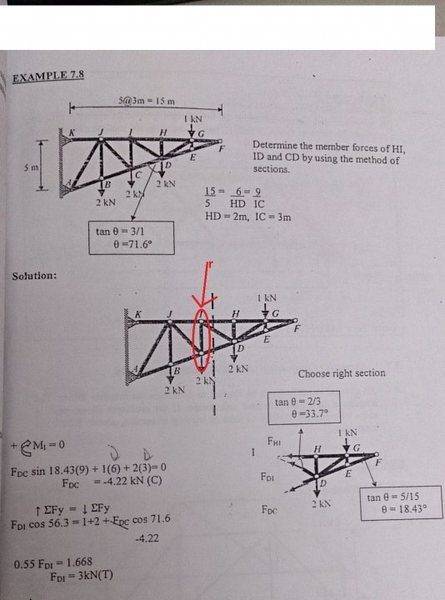

  • Handwritten solution to Example 7.8: method of sections on a truss with a 15 m span and 5 m height, showing a cut section, moment equation FDC sin 18.43(9) + 1(6) + 2(3) = 0, and force equations for FDI and FDC.
    32.1 KB · Views: 403
there' also moment caused by other forces such as 2KN at B , why didnt the author consider that? the 2kN force can cause moment about I ,right?
