Damping Coefficient and Resonant Frequency of a 2nd order circuit

Click For Summary
SUMMARY

The discussion focuses on determining the damping coefficient (α) and the resonant frequency (ωo) for second-order circuits, specifically when dealing with configurations involving resistors, inductors, and capacitors. The user expresses confusion over the lack of detailed guidance in their professor's notes and textbook regarding the derivation of these parameters for circuits that do not have standard tables available. The user has identified that the governing differential equation for their analysis is of the form v'' + av' + bv = c, but requires further assistance to extract the necessary parameters to classify the circuit's damping behavior.

PREREQUISITES
  • Understanding of second-order differential equations
  • Familiarity with Kirchhoff's Current Law (KCL)
  • Knowledge of series and parallel RLC circuit configurations
  • Basic concepts of damping in electrical circuits
NEXT STEPS
  • Study the derivation of the damping coefficient for second-order circuits
  • Learn how to calculate the resonant frequency for RLC circuits
  • Explore methods for solving second-order differential equations
  • Review circuit analysis techniques for complex RLC networks
USEFUL FOR

Electrical engineering students, circuit designers, and anyone involved in analyzing second-order circuits and their damping characteristics.

gfd43tg
Gold Member
Messages
948
Reaction score
48
Hello,

I am having major confusion for how to find the damping coefficient, α, and the resonance frequency, ωo, for a second order circuit, in general. I know that there are tables for standard circuits like a series RLC and parallel RLC giving those values, but I am certain that I need to know how to solve for them in general.

The professors notes did not even show how to do the series RLC circuit without a ton of handwaving to the point of being unfollowable. The textbook (he wrote it) does not have it in full detail either. It just essentially presents the results. He made it very clear to us that we need to know how to do it for either 2 inductors separated by resistors or 2 capacitors separated by resistors, and tables for those are not in the textbook.

I know that once I clean up the circuit through my KCL equations, I will eventually get a 2nd order DE that looks like this

v'' + av' + bv = c

From here, I am stuck with how I should proceed to find those parameters so I can determine if my circuit is over or underdamped, or critically damped.

Thank you

Engineering news on Phys.org

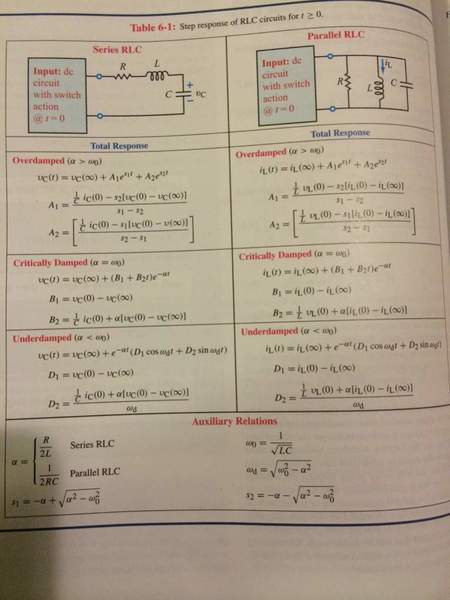

To be clear, I absolutely need to make a table that is the same as this (from textbook)

ImageUploadedByPhysics Forums1398397130.746444.jpg

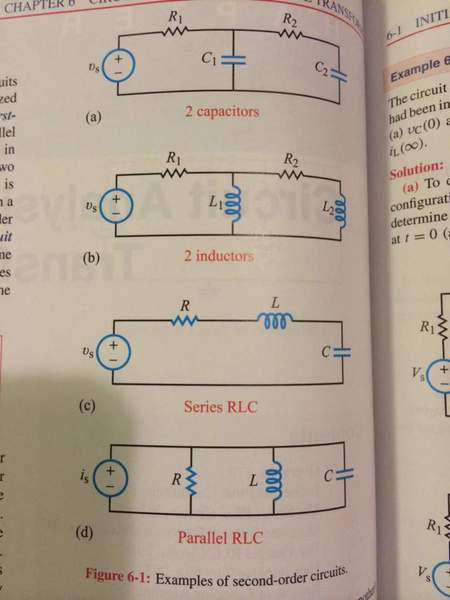

For the first two circuits in this figure

ImageUploadedByPhysics Forums1398397168.878329.jpg


So I can put them on my cheat sheet. I always wondered why go through so much effort to make these tables, but then explicitly tell us that neither are going to be on the exam, and it will be something else, but I digress.
