I Do Electric field lines propagate by themselves away from a charge?

AI Thread Summary
The discussion centers on the behavior of electric field lines in relation to a moving charge, particularly during acceleration. It explores whether these lines can be considered to propagate or if they remain static, with participants debating the physical meaning of labeling field lines and their movement. Key points include the distinction between static electric fields and changes in the electromagnetic field, which propagate at a specific velocity. The conversation also touches on the concept of retarded potentials and how they relate to the observed behavior of field lines during charge acceleration. Ultimately, the consensus is that while field lines can be visualized, they do not have a physical movement in the way suggested by the original poster's labeling system.
Physics news on Phys.org
  • #52
DaveC426913 said:
The answer to your question is in your question.What is the shape of the path if the change in direction of a moving point is not instantaneous?

What is the shape of the path if the change in direction of a moving point is instantaneous?
Yes, but couldn't imagine this. From mobile, it shows me you uploaded an attachment, but there's no attachment.

  • #53
gionole said:
@Dale could you answer this ? I think I'm close if my logic in this is correct. The only thing to understand now with this is why it is curved while velocity change is not instantenous and why it is straight(kink) when it's instantenous.
You are making many of the same mistakes that I have already pointed out. Do you really need me to go through line by line and repeat once again my same criticisms I have already stated?

I would rather move forward with the potentials than rehash the kinks.

Last edited:
  • #54
The nice thing about the potentials is that (in the Lorenz gauge) they are very cleanly related to the charge and current. You don’t need to trace any field lines or make any connections.

For any charge you can think at each moment in time it sends out a spherical scalar ”bubble” that expands outward at ##c##. This wave is proportional to the charge density, and it decays as ##1/r##.

Similarly, for any current you can think at each moment in time it sends out a spherical vector bubble” that expands outward at ##c##. This vector wave is proportional to the current density, and it decays as ##1/r##.

This is very straightforward to visualize. If there are multiple charges or currents then the potentials just add together.

  • #55
gionole said:
Yes, but couldn't imagine this. From mobile, it shows me you uploaded an attachment, but there's no attachment.
The attachment was not germane.

What does the distance per time graph look like ( broadly) for an object that starts at v1 and accelerates smoothly to v2? Is it straight, angled, or curved?

  • #56
gionole said:
But I realized I couldn't understand the EM wave the same way as I did the rope/sound example, since it travels into vacuum, so when I got exposed to kink, I thought it was easier to move to this way and here I'm.
I don't know where field lines come into this. EM waves are propagating disturbances in the EM field and their measurable effects are an oscillation in the electric and magnetic field vectors of the EM field. That is, if we place a bunch of detectors in a row and cause an EM wave to pass by them the detectors will show the field vectors oscillating back and forth around some mean value. This is analogous to placing a bunch of buoys in water and watching as their height changes upon the passage of a water wave (aka a gravity wave). Or the change in air pressure as a sound wave passes.

A field line is a line made by connecting different points in the field such that the line is tangent to the vector at every point. That's it. This in itself has nothing to do with EM waves.

  • #57
gionole said:
I have seen lots of people like this, they explain it to me in terms of math but have no idea what it is logically.

How can you tell if you yourself don't know what it is "logically" (whatever that means)? Or you just want everyone to adjust to your undefined "logic"? And since it is undefined I guess you will never be satisfied.
gionole said:
definitely Einshtein would disagree with you as well.

Oh you would be surprised. Also bringing up Einstein does not enhance your arguments. The one and only language we use doing physics is math, and Einstein knew that very well.

  • #58
Dale said:
You are making many of the same mistakes that I have already pointed out. Do you really need me to go through line by line and repeat once again my same criticisms I have already stated?

I would rather move forward with the potentials than rehash the kinks.
Why mistakes ? I think I know the confusion between us.
Well, I think I was even calling a "curved joinining lines" between old and new lines as a kink. and you guys have only been calling `kink` the straight joining line` and thats where our misconception arised.

Whats the mistake here ? i dont get it at all. There is still something that joins old and new lines. If you dont call it kink, then you can call whatever you want, but it is still a joining curved line which propagates and which changes E gradually.

  • #59
The em. waves in a vacuum propagate according to the retarded Green's function of the D'Alembert operator,
$$\Box=\frac{1}{c^2} \partial_t^2-\Delta,$$
which is
$$G(t,\vec{x},t',\vec{x}')=\frac{\delta(t-t'-|\vec{x}-\vec{x}'|/c)}{4 \pi |\vec{x}-\vec{x}'|}.$$
In the Lorenz gauge the corresponding solutions to the wave equations for the potentials,
$$\Box \Phi=\frac{1}{\epsilon_0} \rho, \quad \Box \vec{A}=\mu_0 \vec{j},$$
read
$$\Phi(t,\vec{x})=\int_{\mathbb{R}^3} \mathrm{d}^3 x' \frac{\rho(t-|\vec{x}-\vec{x}'|/c,\vec{x}')}{4 \pi \epsilon_0|\vec{x}-\vec{x'}|},$$
$$\vec{A}(t,\vec{x})=\int_{\mathbb{R}^3} \mathrm{d}^3 x' \frac{\mu_0 \vec{j}(t-|\vec{x}-\vec{x}'|/c,\vec{x}')}{4 \pi |\vec{x}-\vec{x'}|}.$$
I.e., the changes of the fields due to changes in the sources (charge and current distributions) propagate according to Huygens's principle, i.e., each local perturbation causes a spherical wave moving outward with the speed of light from the source. This holds for the physical fields, which are gauge invariant,
$$\vec{E}=-\partial_t \vec{A} -\vec{\nabla} \Phi, \quad \vec{B}=\vec{\nabla} \times \vec{A}.$$

  • #60
gionole said:
I understand what wave is in medium for sure. Energy travels in a rope as each molecule goes up and down. This seems easy.
Energy travels in the EM field wherever ##\vec E \times \vec B## is nonzero. So if you understand a rope wave by focusing on energy traveling, then you should do the same for EM.

gionole said:
Sound waves are understood as well, as each molecule hits next one "horizontally". So in the end, energy travels from one point to another and each molecule does something(moves up/down or right and left - just talking only about rope and sound for this).
Again, you understand by looking at energy.

gionole said:
But I realized I couldn't understand the EM wave the same way as I did the rope/sound example, since it travels into vacuum,
What has that got to do with anything? The EM fields still transfer energy just like the rope and the sound. The problem is that you abandoned a sensible approach for understanding waves, looking at the energy, and instead focused on the E field lines. That is a useless approach here.

gionole said:
so when I got exposed to kink, I thought it was easier to move to this way and here I'm.
And now that you have found it is not easier, why do you persist in going down this unfruitful path?

gionole said:
But if we even forget the "kink", we can still see in the realistic case that some shape is formed which moves outwards with speed of light.
Yes. This is an EM wave.

gionole said:
As I understand the shape is formed with the following reason. The charge moved from `x1` to `x2` with increasing speed, however now you wanna put it, it's undisputable that the lines that constant moving speed charge had till x1 still would move with old speed,
Field lines do not have a speed.

gionole said:
so once charge appeared at x2, the old field lines are not at x2.
Field lines don’t have an age. There are no old or new field lines.

gionole said:
they're a little bit distance away. Take a look. https://ibb.co/SsQVpFt (you can see here old field lines didn't catch up to x2 due to speed change - even though you say speed change is not discrete, there still should be produced the following scenario as on my link).
I don’t understand that drawing. But I don’t need you to fix it. I prefer to abandon this whole approach.

gionole said:
Now, as far as I understand, from my image, we get curved line instead of straight line. Is this correct ?

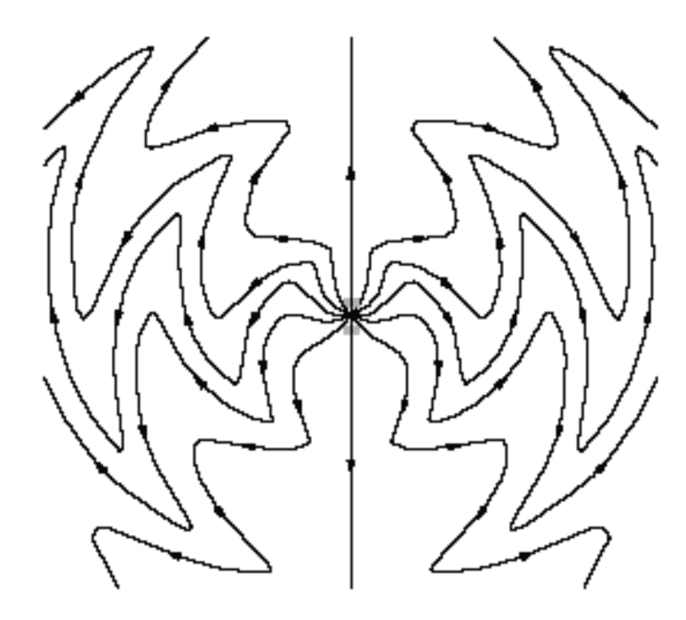

The E field lines for an EM wave are indeed not straight.

gionole said:
if so, I have to imagine why curved line and not straight line would be produced and why that curved line wouldn't be produced with instantenous change speed.
And once you succeed in that, what have you gained? Do you think this produces an understanding of EM waves? Maybe it does. I haven’t seen anyone try this approach, so I cannot say that it will definitely fail. It just seems like there has been no progress so far using this approach.

Why not take a break from it for a while. Either pursue the energy approach or the potentials approach for a bit. See if a different approach helps. If it does, great, if not then you can always come back to this approach.

  • Like
Likes gionole and vanhees71
  • #61
Dale said:
Energy travels in the EM field wherever ##\vec E \times \vec B## is nonzero. So if you understand a rope wave by focusing on energy traveling, then you should do the same for EM.

Again, you understand by looking at energy.

What has that got to do with anything? The EM fields still transfer energy just like the rope and the sound. The problem is that you abandoned a sensible approach for understanding waves, looking at the energy, and instead focused on the E field lines. That is a useless approach here.

And now that you have found it is not easier, why do you persist in going down this unfruitful path?

Yes. This is an EM wave.

Field lines do not have a speed.

Field lines don’t have an age. There are no old or new field lines.

I don’t understand that drawing. But I don’t need you to fix it. I prefer to abandon this whole approach.

The E field lines for an EM wave are indeed not straight.

And once you succeed in that, what have you gained? Do you think this produces an understanding of EM waves? Maybe it does. I haven’t seen anyone try this approach, so I cannot say that it will definitely fail. It just seems like there has been no progress so far using this approach.

Why not take a break from it for a while. Either pursue the energy approach or the potentials approach for a bit. See if a different approach helps. If it does, great, if not then you can always come back to this approach.
Absolutely agree with it. Though a couple of statements from my side.

1. When you say field lines dont have a speed, I agree but it is still good to imagine they do. Otherwise when charge moves with constant speed, dont you have a doubt why field lines even trillion meters away from the charge automatically follow charge direction ? Somehow the field lines even very far away already know with what constant velocity charge is moving, so in a kind of analogy, you could say field lines have same speed as charge’s speed in charge’s direction and once acceleration happens, thats where they dont update instantly as this change needs to propagate.

2. Lets follow the wave description then. As it turns out, if I focus on waves as energy propagation, then I can tell what could be interesting here. So if charge got accelerated, E and B will start increasing but this will happen one point at a time. So this change will be gradually in space. When E changes at 10m away, after some small time, E will change 10.01m away so it is gradually. This is clear to me that E and B at each point increase/decrease in a sinusoidal shape. Though, here comes a tricky part. In sound wave, one particle gains kinetic energy and collides with another and transfering its energy. In EM wave, there is no collision, so how does the transfer of energy happen from two neighboring points in space ? If we imagine 2 points in space(neighbouring ones - x1 and x2), then E got increased at X1, and after so small time, E now got increased at x2. So somehow energy must be traveling from charge acceleration point to outwards. How does energy then travel in vacuum ? I hope I expressed the confusion.

True that I can forget about Kinks. The funny thing is I was even calling kink the curved shape where as you were calling kink only the straight line. So I think we were pretty much close to each other’s understanding. Thanks so much and I hope there is not much time until I fully get the logic.

  • #62
The uniformly moving charge is a special case. There you have a pure Coulomb self-field in the rest frame of the particle, which only is Lorentz boosted to the frame, where the charge is moving with the given constant velocity. It's immediately clear that there is no radiation field in this case. Of course, also in this case you can also calculate the fields with the retarded propgator though it's much less convenient than just using the Lorentz boost. The corresponding calculation, which is most elegantly done within the manifestly covariant description can be found in Sect. 4.8 of

https://itp.uni-frankfurt.de/~hees/pf-faq/srt.pdf

The calculation with the boost can be done most easily by introducing the four-velocity of the charge. In its rest frame you have ##(u^{\prime \mu})=(1,0,0,0)## and the four-potential is given by
$$(A^{ \prime \mu}(x')) = u^{\prime \mu} \frac{q}{4 \pi |\vec{x}'|} = u^{\prime \mu} \frac{q}{4 \pi \sqrt{(u' \cdot x')-x' \cdot x'}}.$$
This is in a manifestly covariant form, i.e., in the frame where the charge is goving with the constant velocity ##\vec{v}## you imply have to set ##(u^{\mu})=\gamma (1,\vec{v})##. and write
$$A^{\mu}(x)=\frac{u^{\mu}}{4 \pi \sqrt{u \cdot x-x \cdot x}}.$$
The fields in this frame are then
$$\vec{E}=-\dot{\vec{A}}-\vec{\nabla} A^0, \quad \vec{B}=\vec{\nabla} \times \vec{A}.$$

  • #63
gionole said:
When you say field lines dont have a speed, I agree but it is still good to imagine they do
I disagree that it is good. I see no evidence that it has helped you learn this so far.

Furthermore, you will have to unlearn the concept if you want to ever learn relativity. So if you want to continue that path then you will have to explore it without me, I will not assist or support you in what I view is a mistaken approach.

gionole said:
This is clear to me that E and B at each point increase/decrease in a sinusoidal shape. Though, here comes a tricky part. In sound wave, one particle gains kinetic energy and collides with another and transfering its energy. In EM wave, there is no collision, so how does the transfer of energy happen from two neighboring points in space ?
Good. If you understand that there is an E and B at each point then you can easily know the energy transfer.

The energy transfer in the E and B fields is given by ##\vec S = \frac{1}{\mu_0} \vec E \times \vec B##. So at all points energy flows in a direction that is perpendicular to both E and B, it is proportional to both E and B, and it is proportional to the sin of the angle between them.

Note that this energy transfer applies for EM waves, but it is more general than that. This energy transfer is also the way that energy is transferred in standard circuits, including DC circuits. Any time you have a battery powering a light bulb, the energy is transferred from the battery to the light bulb using ##\vec S##.

  • #64
Drakkith said:
I don't know where field lines come into this. EM waves are propagating disturbances in the EM field and their measurable effects are an oscillation in the electric and magnetic field vectors of the EM field. That is, if we place a bunch of detectors in a row and cause an EM wave to pass by them the detectors will show the field vectors oscillating back and forth around some mean value. This is analogous to placing a bunch of buoys in water and watching as their height changes upon the passage of a water wave (aka a gravity wave). Or the change in air pressure as a sound wave passes.

A field line is a line made by connecting different points in the field such that the line is tangent to the vector at every point. That's it. This in itself has nothing to do with EM waves.
Well, I think I was even calling a "curved joinining field" between old and new lines as a kink. and you guys have only been calling `kink` the straight joining line` and thats where our misconception arised.
Dale said:
I disagree that it is good. I see no evidence that it has helped you learn this so far.

Furthermore, you will have to unlearn the concept if you want to ever learn relativity. So if you want to continue that path then you will have to explore it without me, I will not assist or support you in what I view is a mistaken approach.Good. If you understand that there is an E and B at each point then you can easily know the energy transfer.

The energy transfer in the E and B fields is given by ##\vec S = \frac{1}{\mu_0} \vec E \times \vec B##. So at all points energy flows in a direction that is perpendicular to both E and B, it is proportional to both E and B, and it is proportional to the sin of the angle between them.

Note that this energy transfer applies for EM waves, but it is more general than that. This energy transfer is also the way that energy is transferred in standard circuits, including DC circuits. Any time you have a battery powering a light bulb, the energy is transferred from the battery to the light bulb using ##\vec S##.
When you got battery, electrons moving from one point to another and it is easier to understand energy transfer.

Q1. What is interesting is that unless E and B change at each point gradually, we don't have this energy transfer. But note that charge moving with constant speed does not have EM wave. What I mean is that if charge moves constantly, at each point, E and B still change gradually. This is because even if charge moves constantly, it increases or decreases distance between each point on some axis. So you got changing E field. Which for sure is what happens for B as well. So even though E and B still change gradually with constant speed charge, we don't call it EM wave. So just saying changing E and B is what EM wave is seems wrong to me. This is why I was trying to understand my bad approach pathway. This all makes me believe that it is not E and B changing that produces energy, otherwise if it did, we would have EM wave for constant speed charge as well. Thoughts ?

Q2. Energy got produced at the point of charge acceleration. Since it travels, does E and B that change at each point help it move forward ? How do they help it ?

  • #65
gionole said:
When you got battery, electrons moving from one point to another and it is easier to understand energy transfer.
Except that the energy transfer does not happen through the electrons. The energy goes from the battery to the light bulb in the fields, not the electrons.

The electrons are involved in changing energy from chemical to electromagnetic at the battery and in changing the energy from electromagnetic to thermal at the light bulb. They are not involved in moving the energy from the battery to the light bulb, except for the fact that the current produces the B field.

If you do not understand ##\vec S = \frac{1}{\mu_0} \vec E \times \vec B## then you do not understand the energy flow in a DC circuit. Once you do understand the energy flow in a DC circuit then you also understand it for an EM wave. They are the same.

gionole said:
What is interesting is that unless E and B change at each point gradually, we don't have this energy transfer
This is not true. Static E and B fields, such as those in a simple DC circuit as I mentioned above, have this same transfer. Anywhere that S is nonzero, energy is transferred, regardless of whether the field is static or not.

gionole said:
So even though E and B still change gradually with constant speed charge, we don't call it EM wave.
That is correct. The difference is where the energy goes. In a constant speed charge the energy goes forward and stays close to the charge. In an EM wave the energy goes out away from the charge. Similarly with a DC circuit. There is no wave because the energy stays close to the wires at all times.

  • #66
@Dale

I think thats where my confusion is Dale and why I have been focusing this much time on "kinks".

Basically, I will mention couple of confusions from my side.

First: I don't know what you call "static E and B". If charge moves with constant speed, E still changes at every point in space due to distance. So If E changes, B changes at each point as well due to distance. So In what sense do you call something "static" if it still changes ?

Second: I think what I don't get is what you mean by: "In a constant speed charge the energy goes forward and stays close to the charge. In an EM wave the energy goes out away from the charge". If something moves constantly, that means no force acts on it since we got no acceleration. So what energy do you mean here that moves forward(in charge direction ?) ? and if it's energy, then we could say charge still emits radiation, but in one direction only, but where would this energy come from ?

  • #67
gionole said:
If charge moves with constant speed, E still changes at every point in space due to distance. So If E changes, B changes at each point as well due to distance. So In what sense do you call something "static" if it still changes ?
"Static" means something is independent of time. That something can still depend on position in space, like the ##1/r^{2}## dependence of a charge's E-field.
gionole said:
If something moves constantly, that means no force acts on it since we got no acceleration. So what energy do you mean here that moves forward(in charge direction ?)
Of course a charge in uniform motion carries energy that moves forward with it: it's called kinetic energy! For uniform motion, KE is conserved, so none of it is converted to radiated energy that moves away from the charge.

  • #68
renormalize said:
"Static" means something is independent of time. That something can still depend on position in space, like the ##1/r^{2}## dependence of a charge's E-field.

Of course a charge in uniform motion carries energy that moves forward with it: it's called kinetic energy! For uniform motion, KE is conserved, so none of it is converted to radiated energy that moves away from the charge.
1. And what's that something that's independent of time ? if charge moves with constant speed, E will change at observable point for sure, but why not dependent on time ? at `t=2`, E can be 10 and at `t=3`, E can be 12. So as time passes, charge moves more which changes E at each point. I might be asking the obvious, but with this logic, it's unclear.

2. ah, true. In that case, charge doesn't even emit energy in its own direction, it's just a carrier of energy. Seems like Newton's first law holds very true here. Correct ?

3. If 2 charges kind of collide, there'll always be at least 2 EM waves produced(one from each charge, since they both experienced acceleration). There could be more waves depending on whether the charges stay accelerated or deaccelerated. right ?

4. If charge was moving constant speed and then acceleration became 2m/s, but stayed 2, then this will continue producing EM waves as long as acceleration is non zero. right ? it's just won't be sinusoidal form, meaning E and B will only go in one direction(either increasing or decreasing) at each point. Correct ?

5. If electron had KE as `E1`. Then it got accelerated, and energy quickly became `E2` (E2>E1). As far as I understand some portion from E2 will be radiated in a way that => E2 - radiated energy > E1. Is this correct ?

6. What actually defines how much energy charge radiates ? I know you will say the more acceleration it got, the more energy it will radiate. True, but if you focus on a different view such as If charge got accelerated to E2, and we know by the formula, that it radiated the energy = `X`. Why `X` and not `X-2`. Whats the logical explanation that it radiated this very specific energy ?

Last edited:
  • #69
gionole said:
I don't know what you call "static E and B".
A static E and B is one that does not change over time. For example, a DC circuit, like a battery, a light bulb, and two connecting wires.

gionole said:
If charge moves with constant speed, E still changes at every point in space due to distance.
Yes, an inertially moving charge is not a static E or B.

gionole said:
If something moves constantly, that means no force acts on it since we got no acceleration. So what energy do you mean here that moves forward(in charge direction ?) ?
The E field and the B field each contain potential energy. That potential energy moves forward with the charge.

gionole said:
then we could say charge still emits radiation
No. The energy stays localized around the charge. So it is not radiation. Not all energy flow is radiation.

gionole said:
where would this energy come from ?
That is what the Poynting theorem tells you. It tells you where the EM field energy comes from, where it goes, and how it gets there.

Last edited:
  • #70
renormalize said:
"Static" means something is independent of time. That something can still depend on position in space, like the ##1/r^{2}## dependence of a charge's E-field.

Of course a charge in uniform motion carries energy that moves forward with it: it's called kinetic energy! For uniform motion, KE is conserved, so none of it is converted to radiated energy that moves away from the charge.
While the charge does have KE, that is not the energy I am talking about. I am talking about the EM field energy density: ##u=(E^2+B^2)/2## with whatever constants are needed to make the units work

  • #71
Dale said:
While the charge does have KE, that is not the energy I am talking about. I am talking about the EM field energy density: ##u=(E^2+B^2)/2## with whatever constants are needed to make the units work
Yes, but doesn't the EM field around a moving charge contribute to its total kinetic energy due to the so-called "electromagnetic mass": https://www.feynmanlectures.caltech.edu/II_28.html ?

  • #72
renormalize said:
Yes, but doesn't the EM field around a moving charge contribute to its total kinetic energy due to the so-called "electromagnetic mass": https://www.feynmanlectures.caltech.edu/II_28.html ?
Yes, definitely. But although the mass from the field energy contributes to the kinetic energy, it is much larger than the kinetic energy. So again, you are not wrong that there is KE, but I was specifically referring to the EM field energy.

I am not correcting you, I am clarifying my own statement.

  • Like
Likes renormalize
  • #73
Dale said:
Except that the energy transfer does not happen through the electrons. The energy goes from the battery to the light bulb in the fields, not the electrons.

The electrons are involved in changing energy from chemical to electromagnetic at the battery and in changing the energy from electromagnetic to thermal at the light bulb. They are not involved in moving the energy from the battery to the light bulb, except for the fact that the current produces the B field.

If you do not understand ##\vec S = \frac{1}{\mu_0} \vec E \times \vec B## then you do not understand the energy flow in a DC circuit. Once you do understand the energy flow in a DC circuit then you also understand it for an EM wave. They are the same.

This is not true. Static E and B fields, such as those in a simple DC circuit as I mentioned above, have this same transfer. Anywhere that S is nonzero, energy is transferred, regardless of whether the field is static or not.

That is correct. The difference is where the energy goes. In a constant speed charge the energy goes forward and stays close to the charge. In an EM wave the energy goes out away from the charge. Similarly with a DC circuit. There is no wave because the energy stays close to the wires at all times.
That's very important and easy to observe when switchin on the light in your room. There are some meters distance between the switch and the light source, and the light turns on very quickly. As it turns out when you analyze what happens using Maxwell's equations is that the signal velocity is the speed of light. You can calculate this for simple geometries (e.g., a coax cable) even using the simplifying telegrapher's equation.

If it were the electrons transporting the energy from the source to the light bulb it would take minutes until you get light after switching it on, because the velocity of the electrons in the cable is a few mm/s (millimeters per second!).

  • #74
Thanks so much everyone. I will study couple of things to get ready to better understand all this and will reply as soon as possible.
