Electromagnetism and the motor principle

  • Thread starter alexandria
  • Start date
  • #1
169
2

Homework Statement




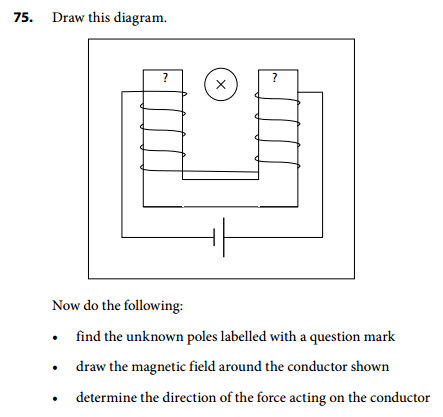

Homework Equations


no equations are required

The Attempt at a Solution


is this correct?
[/B]


Answers and Replies

  • #2
andrevdh
Homework Helper
2,128
116

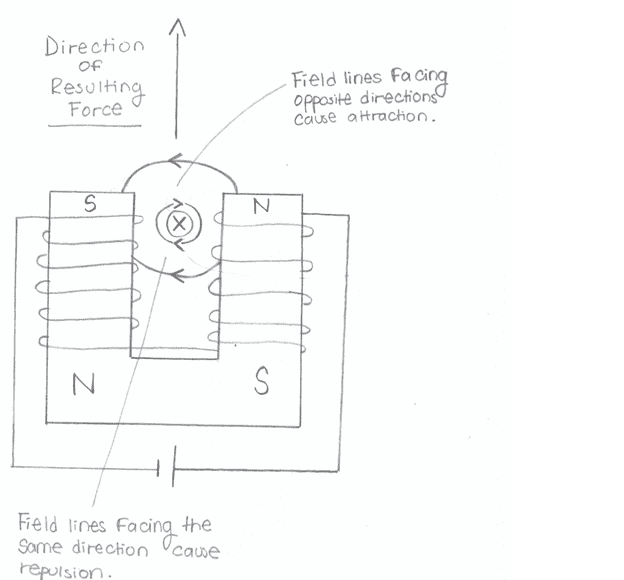

Yes, it seems to be correct.
The conductor is sitting a bit low between the poles, but one would assume that the field lines of the magnet would still be right to left.
Just one remark, maybe you should make the second outer field lines of the conductor smaller, that is a smaller circle which fits inside of the poles.
The right-hand motor rule is normally used to determine the direction of the force on the conductor: thumb - force, index finger - current, middle finger - magnetic field.

  • #3
169
2
ok, thanks for the help :smile:
