Finding a solution to Laplace's equation

  1. Dec 2, 2015 #1

    H Smith 94

    User Avatar
    Gold Member

    So here I have Laplace's equation with non-homogeneous, mixed boundary conditions in both [itex]x[/itex] and [itex]y[/itex].

    1. The problem statement, all variables and given/known data

    Solve Laplace's equation \begin{equation}\label{eq:Laplace}\nabla^2\phi(x,y)=0\end{equation} for the following boundary conditions:
    1. [itex]\phi(0, y)=2[/itex];
    2. [itex]\phi(1, y)=0[/itex];
    3. [itex]\phi(x, 0)=0[/itex];
    4. [itex]\frac{\partial}{\partial y}\phi(x,1)=1[/itex].
    Here, [itex]\phi[/itex] is the potential.

    2. Relevant equations

    In two dimensions:[tex]\nabla^2 = \frac{\partial^2}{\partial x^2} + \frac{\partial^2}{\partial y^2}.[/tex]

    3. The attempt at a solution

    As far as I can tell, a solution exists in \begin{equation}\label{eq:phi1}\phi(x,y)=\phi_0(x) + \Delta\phi(x,y),\end{equation} where [itex]\phi_0(x)[/itex] satisfies the [itex]x[/itex]-boundaries, in that [tex]\phi_0(x)=A_0+B_0 x[/tex] and [itex]\Delta\phi(x,y)[/itex] satisfies the [itex]y[/itex]-boundaries, with a separable solution of the form [tex]\Delta\phi(x,y)=\sum_{n}\chi_n(x)\gamma_n(y).[/tex]

    Applying boundary condition 1: [tex]\phi_0(0,y) = 2 \implies \boxed{A_0 = 2},[/tex] so now [itex]\phi_0= 2+B_0 x [/itex].

    Applying boundary condition 2: [tex]\phi_0(1,y) = 2+ B_0 = 0 \implies \boxed{B_0 = -2}.[/tex] Hence, have that \begin{equation}\phi_0(x,y) = 2-2x.\end{equation}

    Now, equation [itex]\ref{eq:phi1}[/itex] can be substituted into Laplace's equation ([itex]\ref{eq:Laplace}[/itex]) to yield [tex] \frac{\partial^2\Delta\phi(x,y)}{\partial x^2} + \frac{\partial^2\Delta\phi(x,y)}{\partial y^2} = 0.[/tex] This has the separable solution in [itex]\Delta\phi(x,y) = \chi(x)\gamma(y)[/itex]: [tex]\frac{\mathrm{d}^2\chi}{\mathrm{d}x^2} = \kappa \chi(x) \\ \frac{\mathrm{d}^2\gamma}{\mathrm{d}y^2} = -\kappa \gamma(y)[/tex] so that [tex]\begin{align}\chi(x) = E \cos{\kappa x} + F \sin{\kappa x} \\ \gamma(y) = G e^{\kappa y} + H e^{-\kappa y}, \end{align}[/tex] for which I found using the homogeneous boundary conditions produced from [itex]\phi_0(x)[/itex] that [itex]F = -E[/itex] and, in turn, [itex]E = 0[/itex] -- so [tex]\chi(x) = 0\ \forall x \implies \boxed{\Delta\phi(x,y) = 0}[/tex] and so \begin{equation}\boxed{\boxed{\phi(x,y)=2 - 2x}},\end{equation} which just cannot be correct!

    I have tried solving the solution directly using separation of variables with all types of attempted forms of solutions and---after pages and pages of working---have come up with nothing. I feel like there's a very simple but essential point I'm missing here.

    Thanks in advance!

    Last edited: Dec 2, 2015
  2. jcsd
  3. Dec 2, 2015 #2

    Orodruin

    User Avatar
    Staff Emeritus
    Science Advisor
    Homework Helper
    Gold Member

    You are fine until the point you claim that the homogeneous boundary conditions give ##E = - F = 0##. This is not correct.

  4. Dec 2, 2015 #3

    H Smith 94

    User Avatar
    Gold Member

    Hi!

    For this step, I used the boundary conditions ##\Delta\phi(0,y) = \Delta\phi(1,y) = 0##, originating from 1 and 2. Was this incorrect?

  5. Dec 2, 2015 #4

    Orodruin

    User Avatar
    Staff Emeritus
    Science Advisor
    Homework Helper
    Gold Member

    No, that is correct. Your solution of the resulting equations is not.

  6. Dec 2, 2015 #5

    H Smith 94

    User Avatar
    Gold Member

    Right you are!

    I had that ##e^{\xi} - e^{-\xi} = 2 \cosh{\xi}##—which would imply the only way ##\chi(1)=0## is if ##E = 0## since ##\cosh{x}\not=0## for any ##x##—when instead, ##e^{\xi} - e^{-\xi} = 2 \sinh{\xi} \implies e^{\kappa x} - e^{-\kappa x} = 2 \sinh{\kappa x}##, so [tex]\chi(x) = 2E \sinh{\kappa x}[/tex] which means [tex] \chi(1) = 2E\sinh{\kappa} = 0[/tex] which is only true for either ##E = 0## (trivial) or for ##\kappa = 0##.

    Fig 1.
    Blue line is ##\sinh{x}##; red line is ##\cosh{x}##.​

    Does this look like a good place to continue from? The implications of ##\kappa = 0## on ##\gamma(y)## also worries me.

  7. Dec 2, 2015 #6

    Orodruin

    User Avatar
    Staff Emeritus
    Science Advisor
    Homework Helper
    Gold Member

    No, you are not using the actual form you wrote down for the solution in the x-direction. Also remember that you must check all values of ##\kappa##.

    There is also an error in your solution, the argument of the functions is not ##\kappa x##, this would give ##\kappa^2## as a factor when differentiating twoce instead of ##\kappa##, which is in your differential equations.

  8. Dec 2, 2015 #7

    H Smith 94

    User Avatar
    Gold Member

    Oh yes! I hadn't even noticed that! Thank you for pointing this out.

    This was a typo on my part -- sorry! I also should have the opposite signs on the ##\kappa## for each ##x## and ##y## solution in order to adequately satisfy the solutions ##\chi## and ##\gamma## I gave.

    Thank you for all your help -- you've been of great assistance!

  9. Dec 2, 2015 #8

    H Smith 94

    User Avatar
    Gold Member

    Solution:
    For anyone reading this who is interested in the solution:

    Applying the new homogeneous boundary conditions in ##x##:
    1. ##\Delta\phi(0,y) = 0 \implies \boxed{F = 0};##
    2. ##\Delta\phi(1,y) = 0 \implies \boxed{\kappa = n \pi}## for ##n\in\mathbb{N}##.
    means that \begin{equation} \chi(x) = E \sin{n\pi x}.\end{equation} We can hence determine ##G## and ##H## using the original boundary conditions 3 and 4. 3 finds that ##\boxed{A = -B}##, so \begin{equation}\gamma(y) = A\sinh{n\pi y}.\end{equation} Hence, using the separable solution and summing over all possible (infinite) solutions, we find that \begin{equation}\label{eq:phisol} \boxed{\boxed{ \Delta\phi(x,y) = \lim_{M\rightarrow\infty} \sum_{n=1}^{M} c_n\,\sin{n\pi x}\, \sinh{n\pi y} }},\end{equation} where ##c_n \equiv A_nE_n## and ##M## is simply included for a computational application.

    Now, we use 4 to calculate the ##c_n## coefficient. We differentiate \ref{eq:phisol}, apply Fourier's trick (as David J. Griffiths calls it) and hence find that \begin{equation} \label{eq:cnsol} \boxed{ \boxed{ c_n = \frac{ 2 (1 - \cos{ n \pi }) }{ ( n \pi )^2 \cosh{ n \pi } } } }.\end{equation}

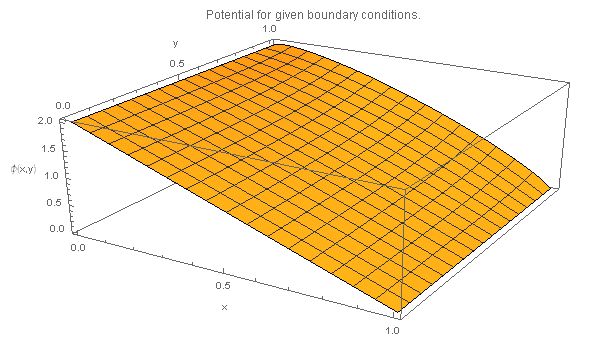

    Using this solutions, we find that for ##M = 20##, the potential looks like the attached graph.
