Help write the Nodal equations and solve V1 &V2

  • Thread starter e4f4
  • Start date
  • Tags
    Nodal
In summary, the conversation discusses a circuit problem and the use of source transformation to solve it. It also mentions the presence of non-resistive elements and the need to determine whether to treat them as resistances or include imaginary numbers. The conversation ends with a reminder to post in the appropriate forum and a question about how to use source transformation in this specific case.
  • #1
e4f4
1
0
Can someone solve this circuit?

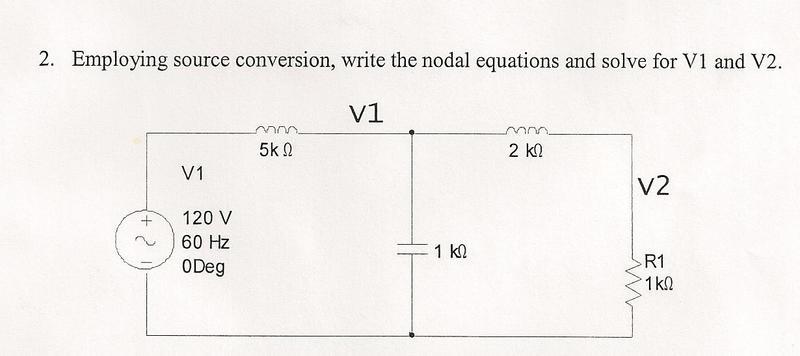

Find v1 and v2 in the circuit.



I know that we have to make somethng with source conversion ,please I need help.



Thannnnnnk you.​


Attachments

  • homework.jpg
    23.1 KB · Views: 477
Physics news on Phys.org
  • #2
Welcome to PhysicsForums!

Firstly, this belongs in the Homework subforum. However, since we here at PhysicsForums aren't in the business of doing your homework for you, how would you use source transform in this particular case? You'll note that this conveniently reduces your entire problem down to really only one nodal equation.

Next, this circuit has non-resistive elements: have you been told that you only need to treat these impedances as resistances, or do you need to attach imaginary numbers to these?

  • #3


I would be happy to assist you in solving this circuit. To begin, we need to write the nodal equations for the circuit. The nodal equations are based on Kirchhoff's Current Law, which states that the sum of all currents entering and exiting a node must be equal to zero.

Let's label the two nodes in the circuit as node 1 and node 2. The nodal equations for these two nodes can be written as:

Node 1: (V1 - V2)/R1 + (V1 - V)/R2 + (V1 - V)/R3 = 0

Node 2: (V2 - V)/R3 + (V2 - V)/R4 + (V2 - V1)/R1 = 0

Where V is the voltage of the voltage source.

Now, we need to use source conversion to simplify the circuit. This involves converting voltage sources to current sources and vice versa. Let's assume that we convert the voltage source to a current source with a value of I. This will create a new equation for node 1:

Node 1: (V1 - V2)/R1 + (V1 - I)/R2 + (V1 - I)/R3 = 0

Next, we can use Ohm's Law to replace the currents in the equations with voltage values:

Node 1: (V1 - V2)/R1 + (V1 - V2)/R2 + (V1 - V2)/R3 = 0

Node 2: (V2 - V2)/R3 + (V2 - V)/R4 + (V2 - V1)/R1 = 0

Now, we have two equations with two unknowns (V1 and V2). We can solve these equations simultaneously to find the values of V1 and V2. Once we have found these values, we can then solve for the voltage at any point in the circuit using Ohm's Law.

I hope this helps in solving the circuit. If you need further assistance, please let me know. Good luck!
