How Do Surface Charges Affect E-field Patterns in Prisms and Cubes?

  • Thread starter ch5112
  • Start date
  • Tags Tags
    E-field
1 reply · 2K views · last reply
ch5112
Messages
4
Reaction score
0
Please refer to the image that is attached

Homework Statement



For each of these prisms and cubes (a-f), state whether the surface encloses a:

-net positive charge
-net negative charge or
- a zero net charge


Homework Equations





The Attempt at a Solution



The E-field is everywhere parallel to the page, so there is no flux through the top and bottom surfaces, The E-field is uniform over each face of the surface in the direction shown. The field streang in N/C is also shown for each surface.

Attachments

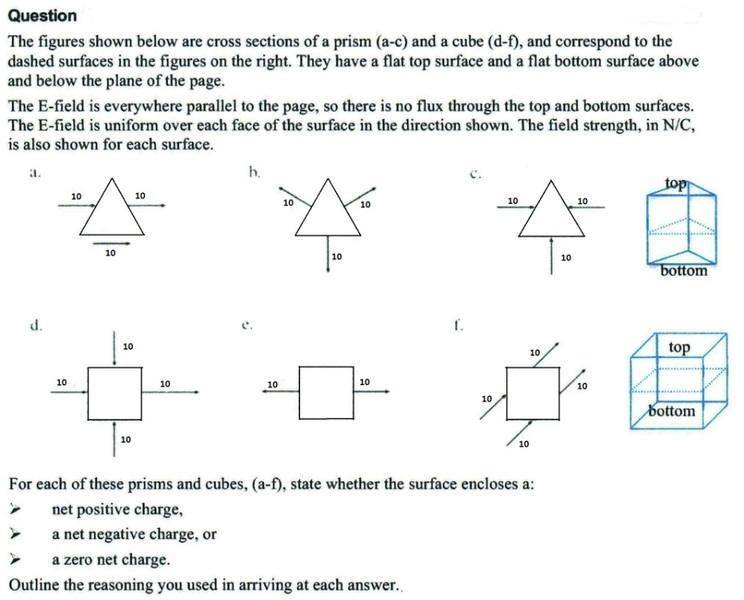

  • Six labelled cross-section diagrams (a-f) of a triangular prism and a square cube with arrows showing E-field directions and magnitudes of 10 N/C on each face, plus 3D sketches of the prism and cube labelled top and bottom.
    44.7 KB · Views: 456
You might ask: Do the field lines end or begin in the shape in question, if so you have charge in the shape. If the field lines both end and begin in the shape in question the only way to have zero charge is if an equal number of lines enter and exit the shape.

What are your guesses?
