Max Bending Moment: Calculation & Formula

Click For Summary
SUMMARY

The maximum bending moment (B.M.) calculated for the beam is 0.29 MNm, derived using standard beam tables. The relevant formula for bending stress is σ = M ⋅ y / I, where I is the moment of inertia. The beam's cross-section is rectangular, with dimensions postulated as width (b) and depth (d) being twice the width. A correction was noted in the total weight calculation of the wall above, which should be 0.145 MN instead of 0.145 kN.

PREREQUISITES
  • Understanding of bending moment and stress calculations
  • Familiarity with beam tables and their application
  • Knowledge of moment of inertia for rectangular cross-sections
  • Basic principles of structural engineering
NEXT STEPS
  • Study the use of beam tables for maximum bending moment calculations
  • Learn about the moment of inertia for various cross-sectional shapes
  • Explore the relationship between bending stress and beam dimensions
  • Investigate structural design principles for load-bearing beams
USEFUL FOR

Structural engineers, civil engineering students, and professionals involved in beam design and analysis will benefit from this discussion.

foo9008
Messages
676
Reaction score
4

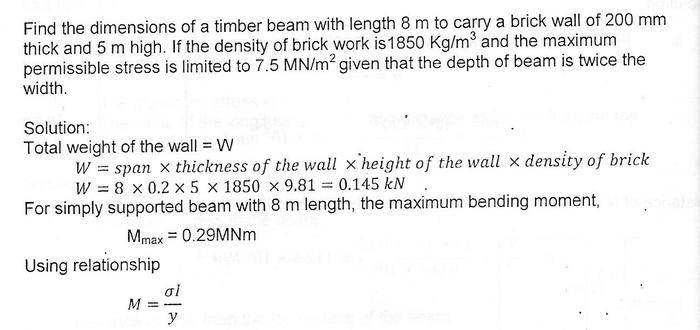

Homework Statement


how the author found the maximum moment = 0.29MNm ? is there any formula ? how to find it in this question ?


Homework Equations

The Attempt at a Solution


Physics news on Phys.org
foo9008 said:

Homework Statement


how the author found the maximum moment = 0.29MNm ? is there any formula ? how to find it in this question ?


Homework Equations

The Attempt at a Solution

Of course there's a formula. That's what beam tables are for - too look up things like the maximum B.M. without having to work them out from scratch all the time.

Here is a set of typical beam tables:

http://www.awc.org/pdf/codes-standards/publications/design-aids/AWC-DA6-BeamFormulas-0710.pdf

Your beam is Figure 1, page 4.

BTW, the calculation of the total weight of the wall above has a small error. W = 0.145 MN, rather than 0.145 kN.

SteamKing said:
Of course there's a formula. That's what beam tables are for - too look up things like the maximum B.M. without having to work them out from scratch all the time.

Here is a set of typical beam tables:

http://www.awc.org/pdf/codes-standards/publications/design-aids/AWC-DA6-BeamFormulas-0710.pdf

Your beam is Figure 1, page 4.

BTW, the calculation of the total weight of the wall above has a small error. W = 0.145 MN, rather than 0.145 kN.

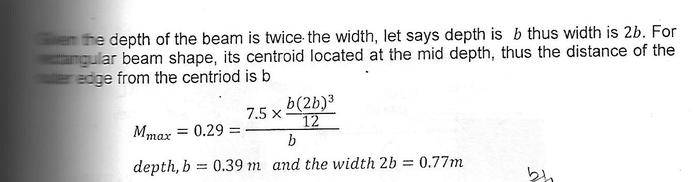

the shape is rectangular cross section , am i right ? why the moment shouldnt' be a(b^3) / 12 ? but , a(b^2) / 8 ?

foo9008 said:
the shape is rectangular cross section , am i right ? why the moment shouldnt' be a(b^3) / 12 ? but , a(b^2) / 8 ?
The problem is trying to figure out the dimensions of the cross section of the beam so that max. bending stress is limited to 7.5 MPa.

Remember, in bending, σ = M ⋅ y / I

It is postulated that the beam supporting the brick wall is twice as deep as it is wide, or w = b and d = 2 ⋅ b, and I = w ⋅ d3 / 12 and y = d/2
