Second moment of area of a quad copter arm?

  • Context: Undergrad
  • Thread starter Thread starter minoroctave
  • Start date Start date
  • Tags Tags
    Area Arm Moment
Click For Summary
SUMMARY

The discussion focuses on calculating the second moment of area for a quadcopter arm, specifically regarding its application in determining the arm's stiffness under bending loads. Participants clarify that the second moment of area and moment of inertia are synonymous in this context, although the neutral axis may differ from the centroidal axis if the arm is made from materials like styrofoam. For accurate stiffness calculations, it is suggested to either assume a constant cross-section or conduct practical tests by applying known loads to measure deflection. CAD software can facilitate the calculation of the second moment of area by analyzing the arm's 2D shape.

PREREQUISITES
  • Understanding of second moment of area and moment of inertia
  • Familiarity with bending stress concepts in mechanics
  • Knowledge of CAD software for geometric analysis
  • Basic principles of material properties, especially regarding tensile and compressive modulus
NEXT STEPS
  • Learn how to calculate the second moment of area for non-prismatic sections
  • Research methods for measuring deflection in cantilever beams under load
  • Explore the use of CAD software for property inquiries and geometric analysis
  • Investigate the effects of material properties on the neutral axis in composite structures
USEFUL FOR

Mechanical engineers, drone designers, and materials scientists interested in analyzing and optimizing the structural integrity of quadcopter arms and blades.

minoroctave
Messages
32
Reaction score
0
does anyone know how to calculate the second moment of area of a typical quadcopter arm like this? what should I approximate the cross section as?

http://static.videomaker.com/sites/videomaker.com/files/styles/vm_image_token_lightbox/public/articles/16035/316-C5-DJI-Phantom-PRIMARY.png?itok=0bG9ZS8o

Physics news on Phys.org
Do you mean the moment of inertia of the cross section of the arm about the neutral axis?

David Lewis said:
Do you mean the moment of inertia of the cross section of the arm about the neutral axis?

yes, i think so. is that the same thing as the second moment of area? i am not sure

Yes, in statics and strength of materials they're synonymous (although technically a misnomer). I assume you want to calculate stress or deflection in the arm due to bending load. If the arm is made out of styrofoam then I think the neutral axis* is offset from centroidal axis because tensile modulus is different than compressive modulus. *This is the reference axis from which you compute the second moment of area/moment of inertia.

David Lewis said:
Yes, in statics and strength of materials they're synonymous (although technically a misnomer). I assume you want to calculate stress or deflection in the arm due to bending load. If the arm is made out of styrofoam then I think the neutral axis* is offset from centroidal axis because tensile modulus is different than compressive modulus. *This is the reference axis from which you compute the second moment of area/moment of inertia.

yes, I want to calculate the overall stiffness of the arm. from here https://www.engr.colostate.edu/~dga/mech325/figures/elastic.pdf , there is a equation for the stiffness of a loaded cantilever beam that involves knowing the second moment of area.but its for uniform cross section.
So do I assume the quad copter arm has a constant cross section or is that too much of an approximation?

David Lewis said:
Yes, in statics and strength of materials they're synonymous (although technically a misnomer). I assume you want to calculate stress or deflection in the arm due to bending load. If the arm is made out of styrofoam then I think the neutral axis* is offset from centroidal axis because tensile modulus is different than compressive modulus. *This is the reference axis from which you compute the second moment of area/moment of inertia.
In most cases for calculating bending stress of prismatic beams, the centroidal axis and the neutral axis are the same. If you have some really weird material, there may be a difference in the two, like there is for analyzing the bending of curved beams.

minoroctave said:
yes, I want to calculate the overall stiffness of the arm. from here https://www.engr.colostate.edu/~dga/mech325/figures/elastic.pdf , there is a equation for the stiffness of a loaded cantilever beam that involves knowing the second moment of area.but its for uniform cross section.
So do I assume the quad copter arm has a constant cross section or is that too much of an approximation?

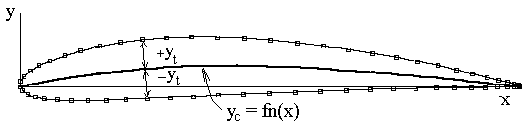

You can calculate the second moment of area of the foil section for the copter blade, but it would be really tedious to do if you don't know the offsets of the foil section:




Given that the individual blades are not prismatic, the difficulty in calculating the stiffness will not be confined to just evaluating the second moment of area.

It would probably be a more effective use of your time if you simply tested a blade by applying a known load to the tip and then measuring the deflection.

Ditto if you are talking about the arms which connect the drone body to the thrusters.

With curvy, swoopy bodies like this drone, beam stiffness is no longer a useful concept to apply, and not just because of the difficulty in calculation.

  • Like
Likes   Reactions: minoroctave
SteamKing said:
You can calculate the second moment of area of the foil section for the copter blade, but it would be really tedious to do if you don't know the offsets of the foil section:




Given that the individual blades are not prismatic, the difficulty in calculating the stiffness will not be confined to just evaluating the second moment of area.

It would probably be a more effective use of your time if you simply tested a blade by applying a known load to the tip and then measuring the deflection.

Ditto if you are talking about the arms which connect the drone body to the thrusters.

With curvy, swoopy bodies like this drone, beam stiffness is no longer a useful concept to apply, and not just because of the difficulty in calculation.

thanks! also, after I obtain the stiffness values of the blade and the arm, how would they be combined into one representative stiffness value? for example, in the case of one arm with its two blades, how would the stiffness their values be combined?

If you have CAD software, draw the 2D shape, convert it to a polyline or region, and invoke the property inquiries command. That should output values for "area, perimeter, centroid location, and 2nd moment."

On a cantilever beam, you can usually assume bending moment goes up as the square of distance from the tip, so you only need to investigate bending at the root end of the arm (where it attaches to the center pod).
