Simulation of a double layer capacitance and a warburg impedance with comsol

In summary, you are trying to simulate an impedance spectroscopy experiment. But you are an absolute beginner in Comsol and have many problems with the work. You are using the AC/DC module, but you are having trouble with the warburg impedance equation. You also want to make the simulations automatic over a defined range of frequencies.
  • #1
FirePhoenix
2
0
Hallo,
i'm trying to implement a comsol simulation of a impedance spectroscopy experiment.
But unfortunatly I'm an absolut beginner in Comsol and i have many problems with this work.

First of all i want to say that I'm using the AC/DC module, more precisely the transient analysis.
At the moment I'm using a simple 2D geometry to try out all equations and boundary conditions.


Now to the first problem:
I tried to simulate only a double layer capacitance between an electrode and a drop of water. The double layer thickness is very small compared to the dimensions of the electrodes, so I didn't want to draw it, but use a distributed impedance for the boundary condition between the electrode and the drop of water.
The other boundary conditions are:
Potential V= sin(10*t) on the left side of the electrode.
Potential V= -sin(10*t) on the right side of the drop of water.
All other boundaries are electrical insulated.
But it wasn't sucessfuly, I always receive the whole potencial difference over the drop of water and not over the distributed impedance.


The second problem is that I have no idea how to bring the warburg impedance equation into the boundary conditions.
The equation is something like Z= sigma/sqrt(w)*(1-j), but where do I place that and how can i express w?


Finaly remains the question, if it is possible to make the simulations automatic over a defined range of frequencies and to calculate a complex impedance out of the result.

Attachments:

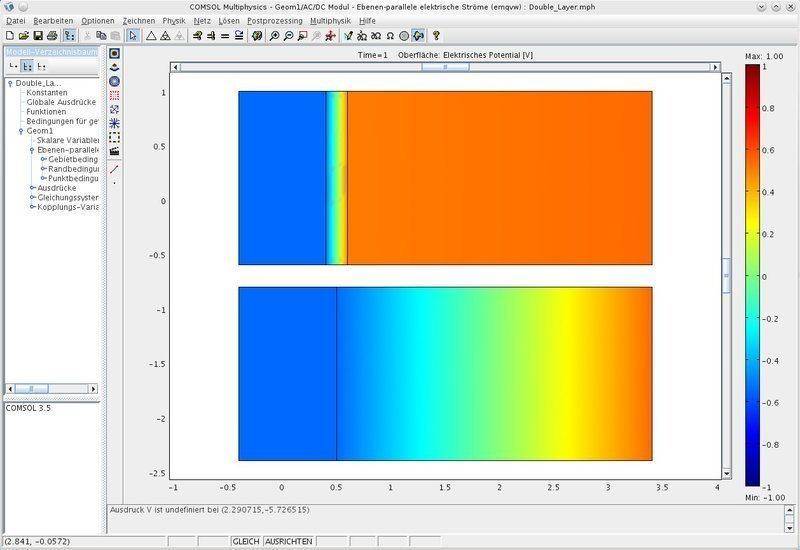

Comsol1: result, up a simulation with a drawed double layer, down the distributed impedance.

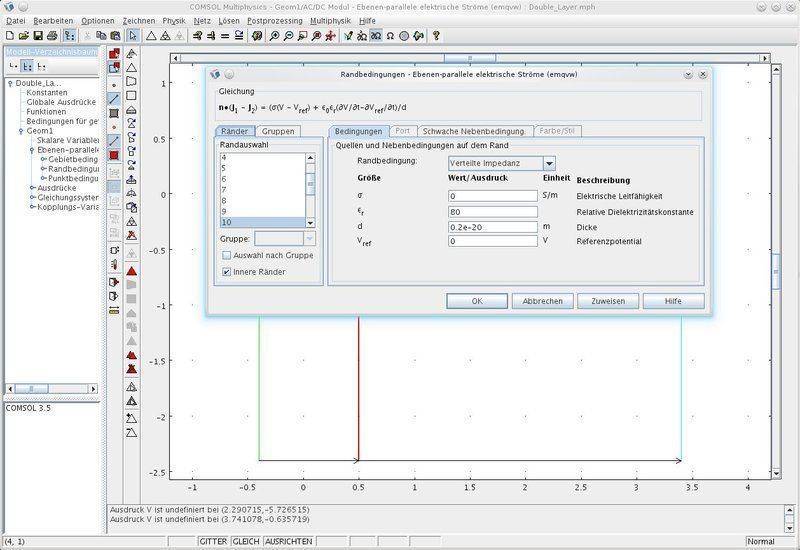

Comsol2: the boundary condition for the distributed impedance

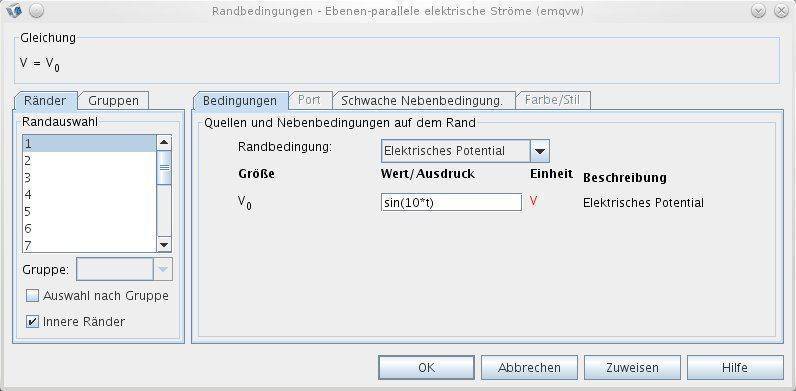

Comsol3: the boundary condition of the electrode


thanke you for your help
and sorry for my bad english

cu FirePhoenix


Attachments

  • Comsol1.jpeg
    47.1 KB · Views: 656
  • Comsol2.jpeg
    57.5 KB · Views: 658
  • Comsol3.jpeg
    33.1 KB · Views: 650
Engineering news on Phys.org
  • #2
Hi!
I am about to do some simulations of impedance spectroscopy as well. Have you overcome the problems you have mentioned?


Mike

  • #3
I'm still working on it.

But at the moment it looks good.

You have to define the frequency over the scalar variable: nu_emqvw,
and then define the epsilon_r and the sigma of the doublelayer region as:

A0_CPE= 1e-6; (use the value of your measurements)
psi_CPE= 0.5; (0.5 for warburg impedance)

sigma= (sig_DL+ A0_CPE*(2*pi*frequenz).^psi_CPE*cos(psi_CPE*pi/2));
epsilon_r= e_DL+ A0_CPE/(epsilon_0)*(2*pi*frequenz).^(psi_CPE-1)*sin(psi_CPE*pi/2);

lg
FirePhoenix
