Trying to find an angle in lines layed on top of a circle

  1. Jul 28, 2012 #1


    User Avatar

    1. The problem statement, all variables and given/known data

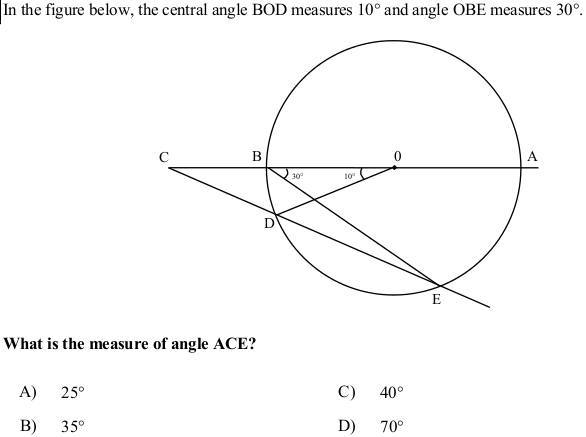

    The problem is attached as TheProblem.jpg and the answer is A.

    2. Relevant equations
    Geometry rules.

    3. The attempt at a solution
    The triangle which has angles of 30deg and 10deg also has an angle of 180deg-30deg-10deg = 140deg and the other side of the line intersection “scissor” is also 140deg. The two equivalent angles on the other part of the line intersection “scissor” are (360deg-2*140deg)/2 = 40deg. I don't know if what I did so far is even useful nor do I know how to proceed from here.

    Any help would be greatly appreciated!
    Thanks in advance!

    Attached Files:

  2. jcsd
  3. Jul 28, 2012 #2
    First try and identify what arcs you need to know the measure of to find angle ACE.
    What formula are you going to ultimately use?
  4. Jul 29, 2012 #3


    User Avatar

    I'm really unsure but (1) arc AE and (2) comparing an angle ratio with an arc/circumference ratio?
    Last edited: Jul 29, 2012
  5. Jul 29, 2012 #4


    User Avatar
    Science Advisor

    Have you learned "If AB and CD are lines intersecting inside a circle, then the angle between them is the average of the two arcs they make on the circle"? That is the theorem you need.
  6. Jul 30, 2012 #5


    User Avatar

    HallsofIvy, did you mean "difference" instead of "average"? Because, if you did, then I get the correct answer by doing:

    angle A0E = 2 * angle ABE = 2 * 30deg = 60deg


    angle ACE = 1/2 * (60-10) deg = 25deg
  7. Jul 30, 2012 #6


    User Avatar
    Homework Helper

    Consider the chord BD (and the minor arc BD). What can you say about the relationship between the angles BOD and BED?

    That should take you most of the way.
  8. Jul 31, 2012 #7


    User Avatar
    Science Advisor

    Well, the rule I was thinking of requires that when two lines intersecting a circle come from outside the circle, the arc it cuts is considered negative. The lines BA and BE intersect an arc of measure 0 (at B) and arc AE. The angle is 30 degrees so we have (AE+ 0)/2= 30 so arc AE has measure 2(30)= 60 degrees.

    Arc AD is intercepted by lines BO and DO. Of course, the measure of an angle is defined by the central angle it intercepts so it has measure 10 degrees. (Of course, the other arc those two lines intercept would be 10 degrees also so "average" still works.)

    That is, lines CA and CE intercept the circle in arcs AE and BD. They come to arc AE from outside the outside so we consider that arc measure negative: the measure of the angle is (-10+ 60)/2= 25 degrees.
