MHB What Do $V_i=L$ and $V_i=H$ Mean in CMOS Inverters?

  • Thread starter Thread starter aruwin
  • Start date Start date
  • Tags Tags
    Cmos
AI Thread Summary
In CMOS inverters, $V_i=L$ indicates that the input voltage is approximately at ground level, while $V_i=H$ signifies that the input voltage is close to the supply voltage, $V_{dd}$. This distinction is crucial for understanding the inverter's function as a logical NOT gate. The inverter operates by switching its output based on these input voltage levels. Overall, these voltage levels are fundamental to the operation of CMOS technology.
aruwin
Messages
204
Reaction score
0
Hello.
Can someone explain to me what does $V_i=L$ and $V_i=H$ mean in CMOS inverters?

Mathematics news on Phys.org
aruwin said:
Hello.
Can someone explain to me what does $V_i=L$ and $V_i=H$ mean in CMOS inverters?

A CMOS inveter is a logical not gate made with the technology of complementary mos ...

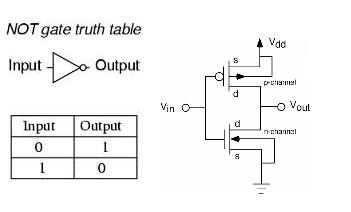

View attachment 2839Vi is the imput voltage and usually $V_{i} = L$ means $Vi \sim \text{Ground}$ and $V_{i} = H$ means $v_{i} \sim V_{dd}$...

Kind regards

$\chi$ $\sigma$


Attachments

  • not gate.jpg
    not gate.jpg
    7.5 KB · Views: 76
chisigma said:
A CMOS inveter is a logical not gate made with the technology of complementary mos ...

https://www.physicsforums.com/attachments/2839Vi is the imput voltage and usually $V_{i} = L$ means $Vi \sim \text{Ground}$ and $V_{i} = H$ means $v_{i} \sim V_{dd}$...

Kind regards

$\chi$ $\sigma$
Thank you so much!
